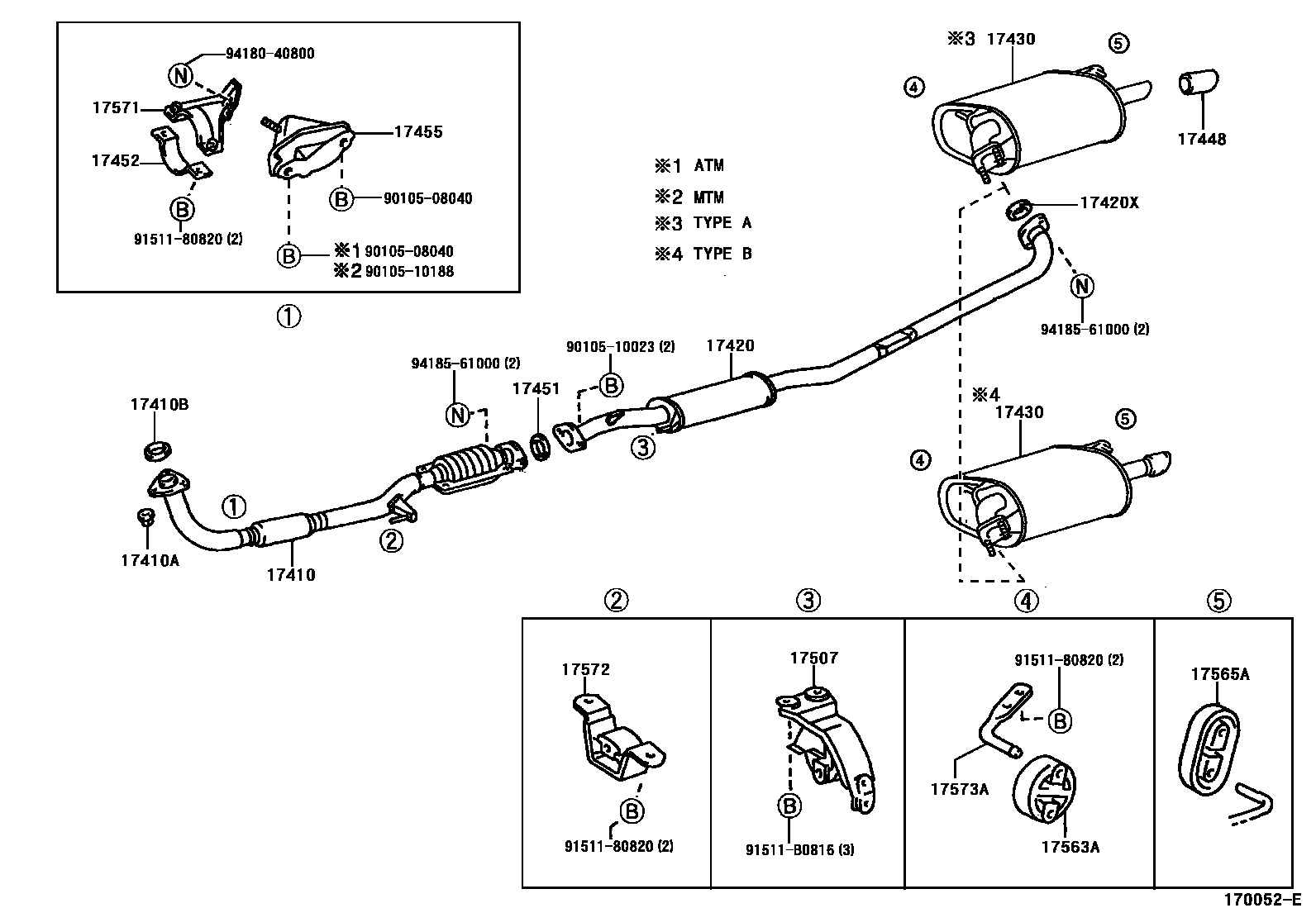

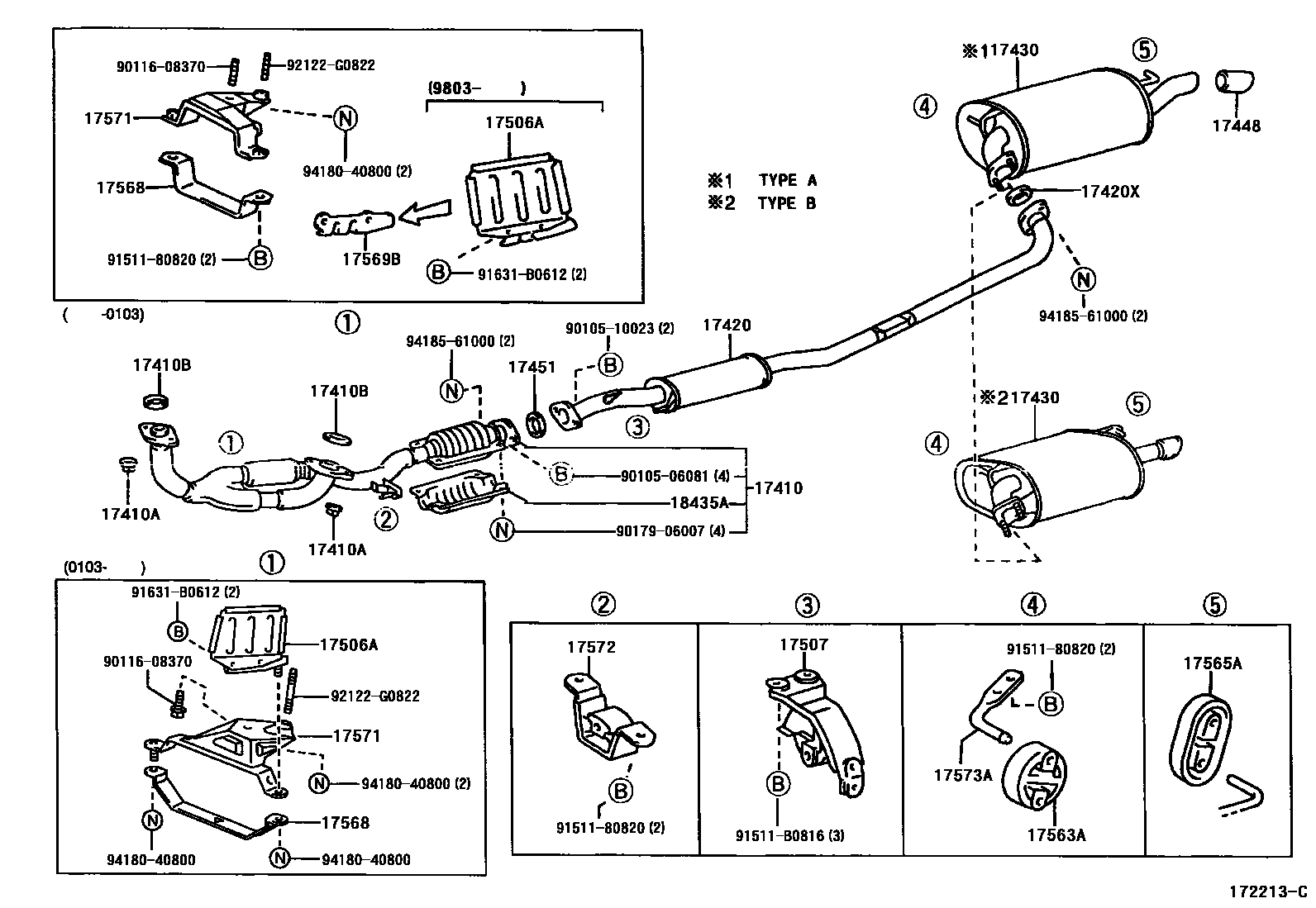

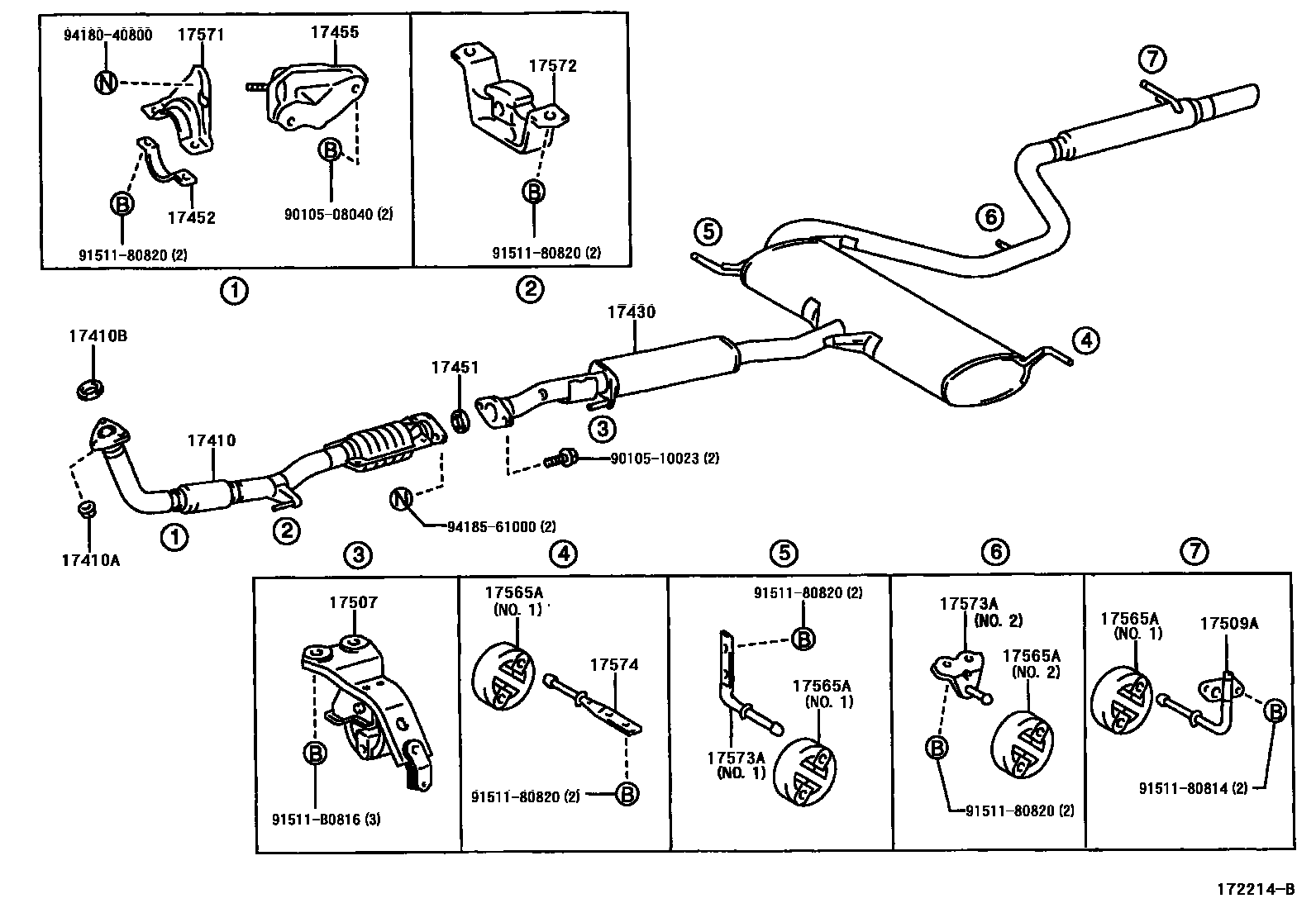

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-20050 · 17410-20150 · 17410-20160 · 17410-20290 · 17410-20360 · 17410-7A430 · 17410-7A520 · 17410-7A870 · 17410-7A880 · 17410-7B030 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06065 · 90917-06066 |
| 17420 | Central exhaust pipe assembly | 17420-20040 · 17420-20180 · 17420-7A010 |
| 17420X | Center exhaust pipe liner | 90917-06045 · 90917-06073 |
| 17430 | Exhaust tailpipe assembly | 17430-20040 · 17430-20041 · 17430-20042 · 17430-20080 · 17430-7A670 · 17430-7A671 · 17430-7A672 · 17430-7B220 · 17430-7B230 · 17430-7B320 |
| 17448 | Exhaust pipe tail throat | 17448-74080 |
| 17451 | Exhaust pipe gasket | 90917-06073 · 90917-06078 |
| 17452 | Exhaust pipe clamp | 17452-74120 |
| 17455 | Exhaust pipe bracket | 17455-74080 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-20060 · 17506-20061 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-20030 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 57659-33010 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-20060 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-11160 · 17565-20050 · 17565-46040 · 17565-74290 |
| 17568 | Exhaust pipe bracket stay | 17568-20080 |
| 17569B | No. 2 exhaust pipe bracket stay | 17569-20040 |
| 17571 | No. 1 exhaust pipe bracket | 17571-20070 · 17571-20071 · 17571-74410 |
| 17572 | No. 1 exhaust pipe bracket | 17572-20040 · 17572-74090 |
| 17573A | No. 3 exhaust pipe bracket | 17573-20040 · 17573-74210 · 17573-74211 · 57656-33020 |
| 17574 | No. 4 exhaust pipe bracket | 17574-74170 |
| 18435A | Integrated three-way catalytic converter protection device | 18435-16170 · 18435-20020 |
