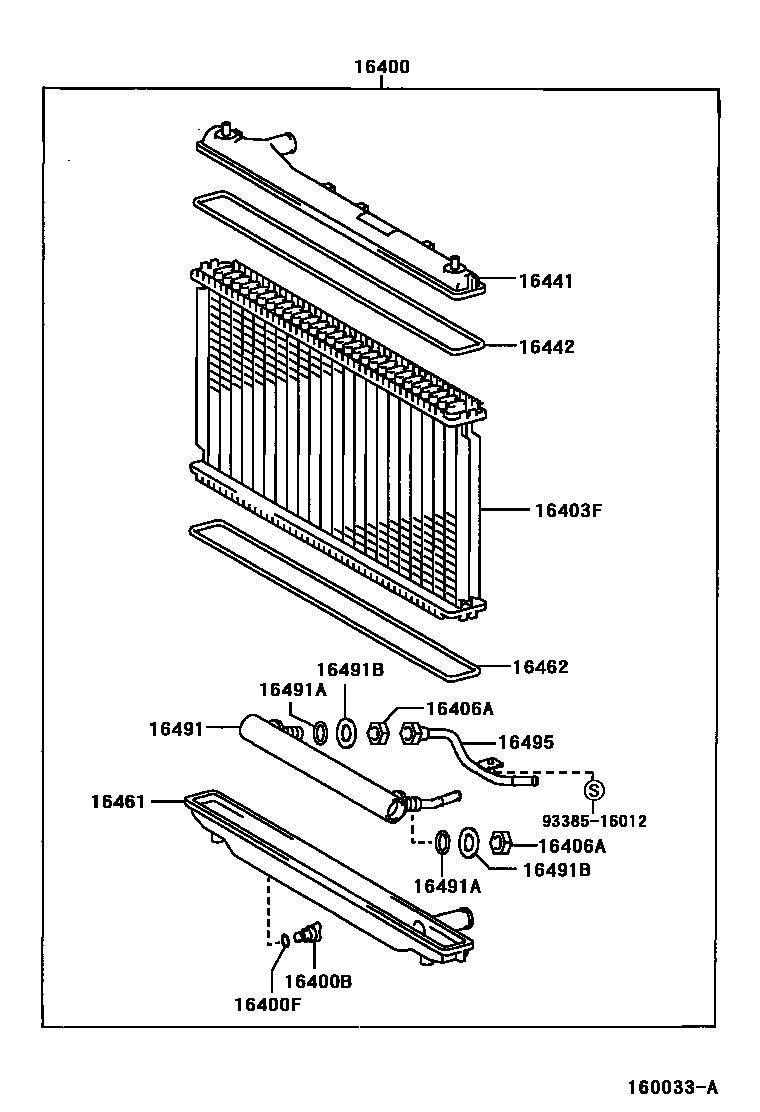

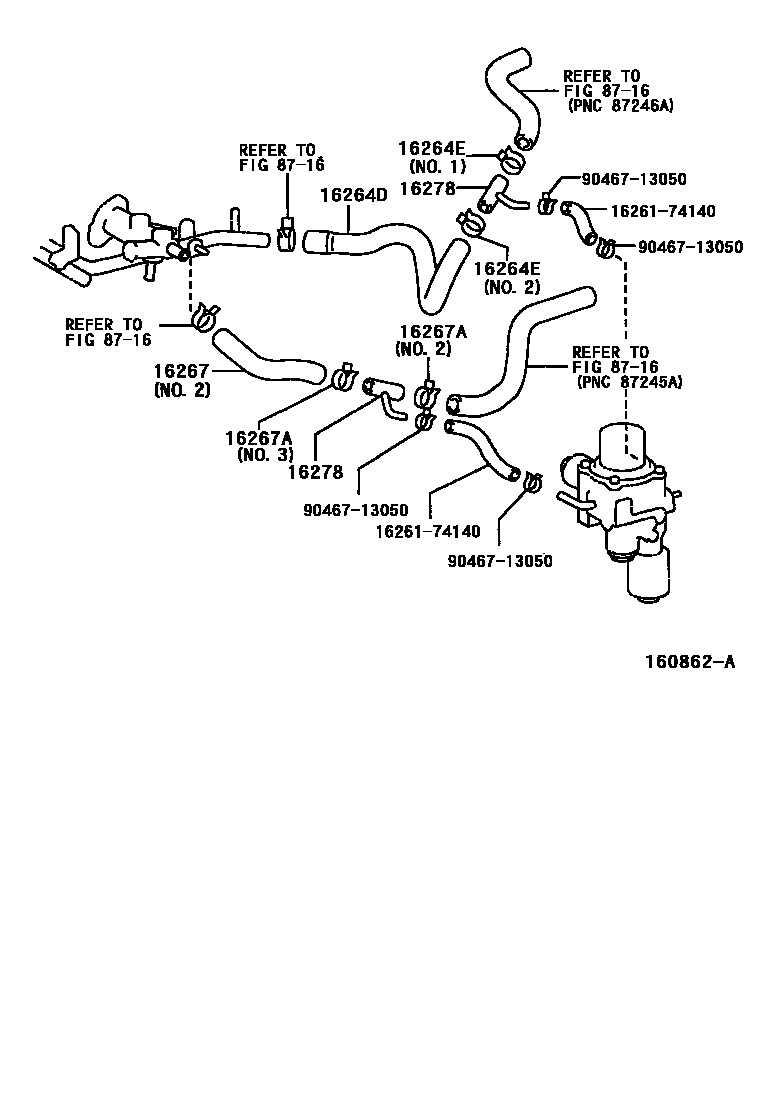

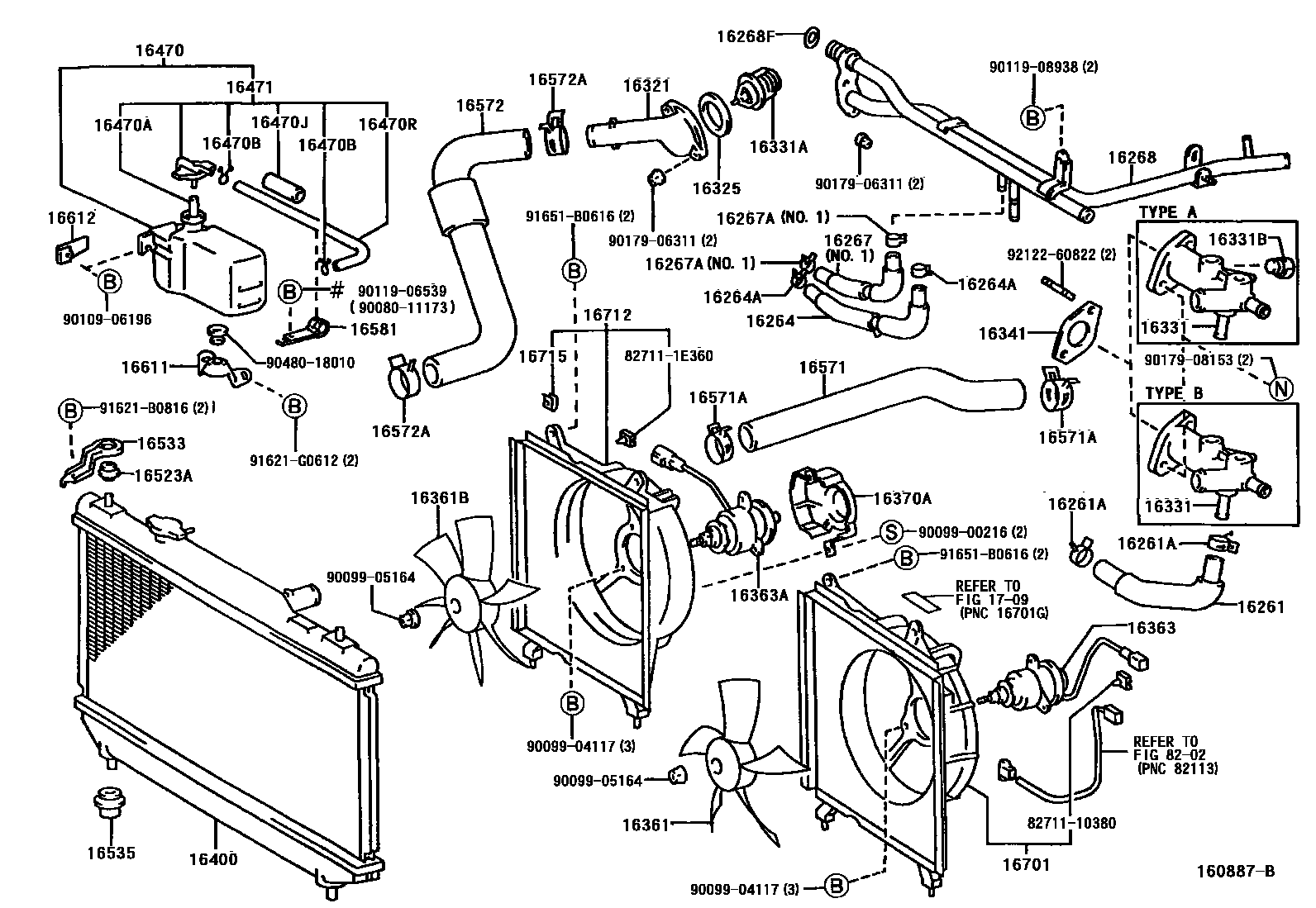

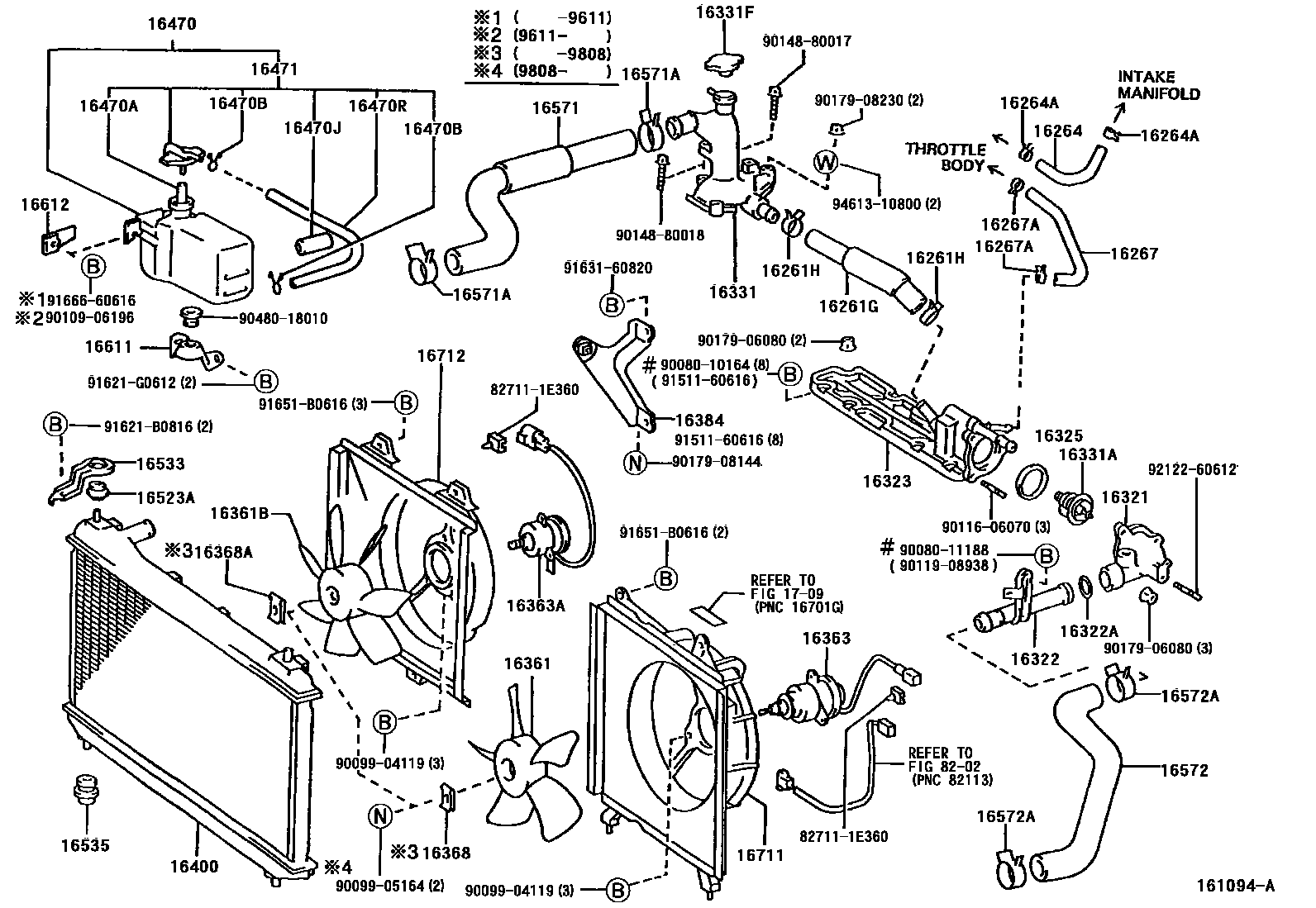

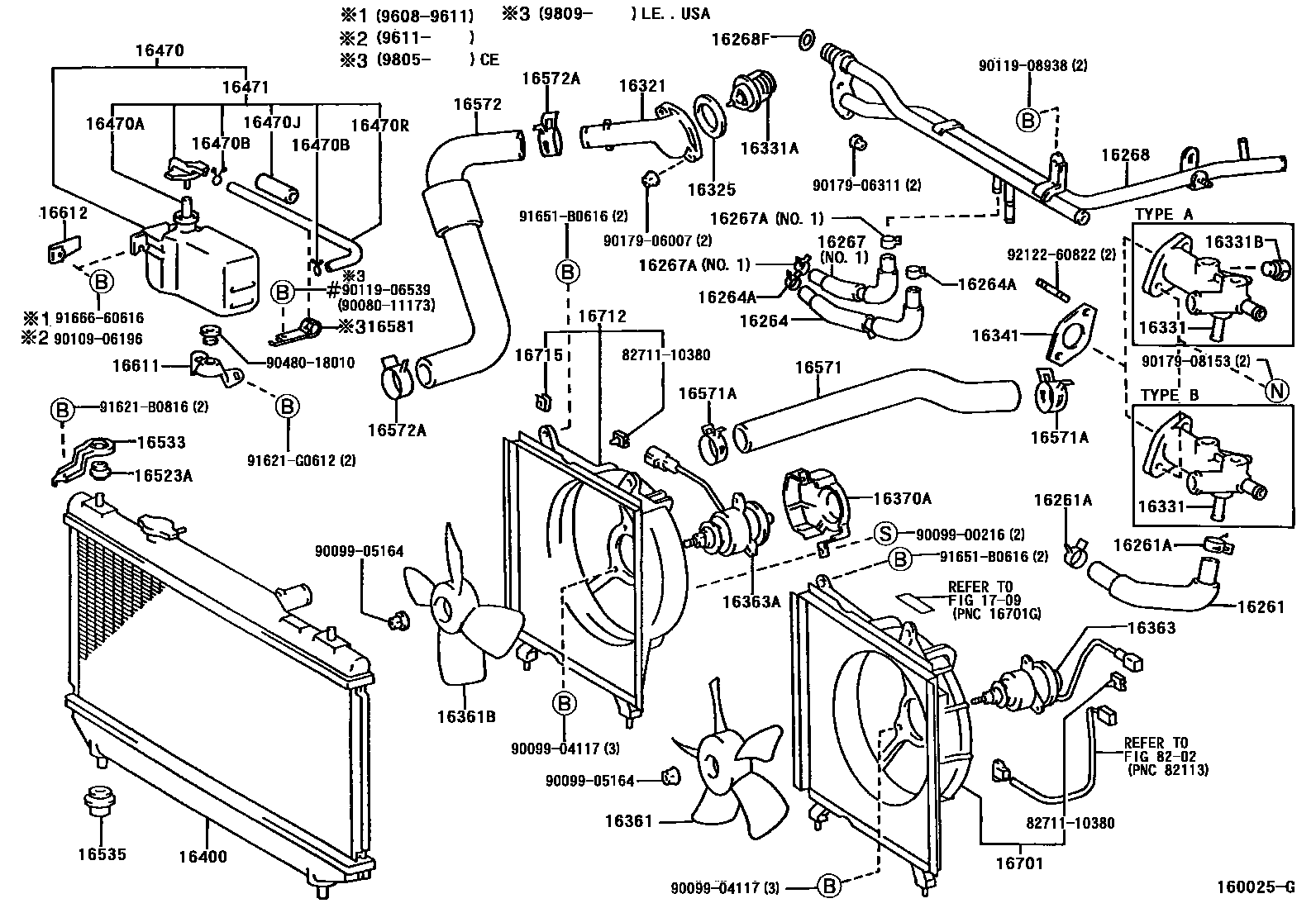

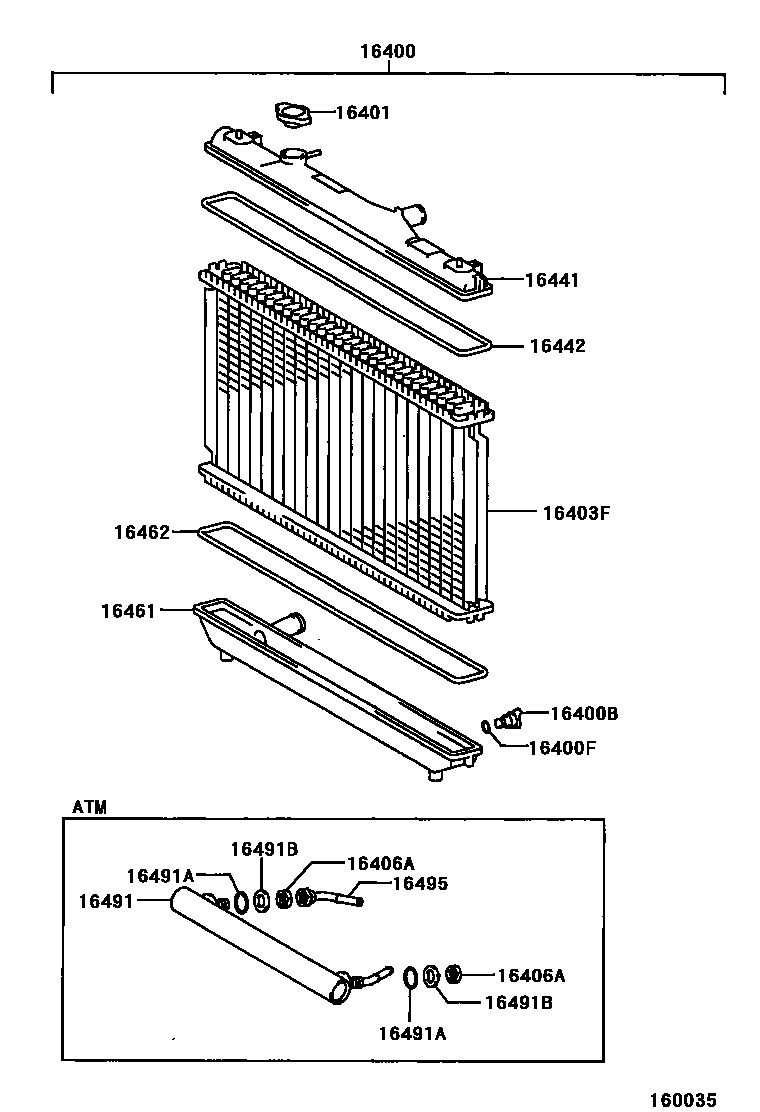

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-74100 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-22003 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0A010 · 16261-20010 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90467-28008 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0A010 · 16264-20010 · 16264-74101 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-20005 · 96135-41300 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 87245-33350 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-22004 · 90467-24002 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0A010 · 16267-20010 · 16267-74081 · 87245-33360 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-20005 · 90467-22004 · 90467-24002 · 96135-41300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-74190 · 16268-74200 |
| 16268F | O-ring (for water bypass pipe) | 96761-24017 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 87248-30390 |
| 16321 | water inlet | 16321-0A020 · 16321-20010 · 16321-74050 |
| 16322 | PIPE, WATER INLET | 16322-0A020 · 16322-20020 |
| 16322A | O-RING, WATER INLET | 96761-35031 |
| 16323 | HOUSING, WATER INLET | 16323-0A010 · 16323-20010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 · 16325-63011 |
| 16331 | Water outlet | 16304-0A010 · 16331-20020 · 16331-20040 · 16331-74210 · 16331-74220 · 16331-74260 |
| 16331A | thermostat | 90916-03084 · 90916-03090 |
| 16331B | Screw plug (for water outlet) | 90345-53007 |
| 16331F | Cover assembly (for water outlet) | 16401-62090 |
| 16341 | GASKET, WATER OUTLET | 16341-74020 |
| 16361 | Fan | 16361-20030 · 16361-20110 · 16361-22030 · 16361-74060 |
| 16361B | Fan No. 2 | 16361-20040 · 16361-20120 · 16361-74160 · 88453-33010 |
| 16363 | cooling fan motor | 16363-0A030 · 16363-11050 · 16363-20090 · 16363-74360 |
| 16363A | Cooling fan motor No. 2 | 16363-0A040 · 16363-11050 · 16363-20100 · 16363-74370 |
| 16368 | Cooling fan motor bracket | 16368-0A010 |
| 16368A | No. 2 cooling fan motor bracket | 16368-0A010 |
| 16370A | plate cover | 88899-33020 |
| 16384 | Fan belt adjustment lever bracket | 16384-20010 |
| 16400 | Radiator assembly | 16400-20090 · 16400-20091 · 16400-20161 · 16400-7A291 · 16400-7A300 · 16400-7A301 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-20090 · 16403-20160 · 16403-7A300 |
| 16406A | Bracket (for transmission oil cooler) | 16406-62060 |
| 16441 | Radiator water tank | 16441-20090 · 16441-7A310 |
| 16442 | O-ring (for radiator tank) | 16442-46090 · 16442-7A310 |
| 16461 | Radiator lower tank | 16461-20090 · 16461-7A290 · 16461-7A310 |
| 16462 | O-ring (for radiator lower tank) | 16442-46090 |
| 16470 | Radiator reservoir assembly | 16470-20030 · 16470-20031 · 16470-20040 · 16470-74310 · 16470-74311 · 16470-74360 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470J | No. 3 hose (for radiator reservoir) | 85338-70070 |
| 16470R | No. 2 hose (for radiator reservoir) | 16472-20030 · 16472-74310 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-20020 · 16405-74300 |
| 16491 | Oil cooler (for ATM) | 16491-7A310 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-50020 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-62060 |
| 16495 | Oil line nut (for automatic transmission oil cooler) | 16495-20090 · 16495-74760 |
| 16523A | Radiator bracket cushion | 16523-74010 |
| 16533 | Radiator upper bracket | 16533-74290 · 16533-74320 |
| 16535 | Radiator lower support | 16535-20010 · 16535-74210 |
| 16571 | Radiator water inlet hose | 16571-20020 · 16571-74360 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34003 · 90467-37004 |
| 16572 | Radiator outlet hose | 16572-20020 · 16572-20040 · 16572-74290 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34003 · 90467-37002 |
| 16581 | Hose clamp (for water hose) | 90461-10101 |
| 16611 | Radiator reservoir bracket | 16611-74080 |
| 16612 | No. 2 radiator reservoir bracket | 16612-74030 |
| 16701 | Fan cover sub-assembly | 16711-74610 · 16711-74611 |
| 16711 | fan cover | 16711-20050 · 16711-20091 |
| 16712 | No. 2 fan cover | 16711-20060 · 16711-20100 · 16711-74620 · 16711-74621 |
| 16715 | fan cover bracket | 88688-18030 |
