Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 5 images and 7 PNC and OE references.

Toyota CAMRY Ventilation Hose EPC diagram — 120009
Ventilation Hose — 120009 (199608 – 199709)
Toyota CAMRY Ventilation Hose EPC diagram — 120068A
Ventilation Hose — 120068A (199608 – 199711)
Toyota CAMRY Ventilation Hose EPC diagram — 120069A
Ventilation Hose — 120069A (199709 – 199711)
Toyota CAMRY Ventilation Hose EPC diagram — 120070B
Ventilation Hose — 120070B (199711 – 999999)

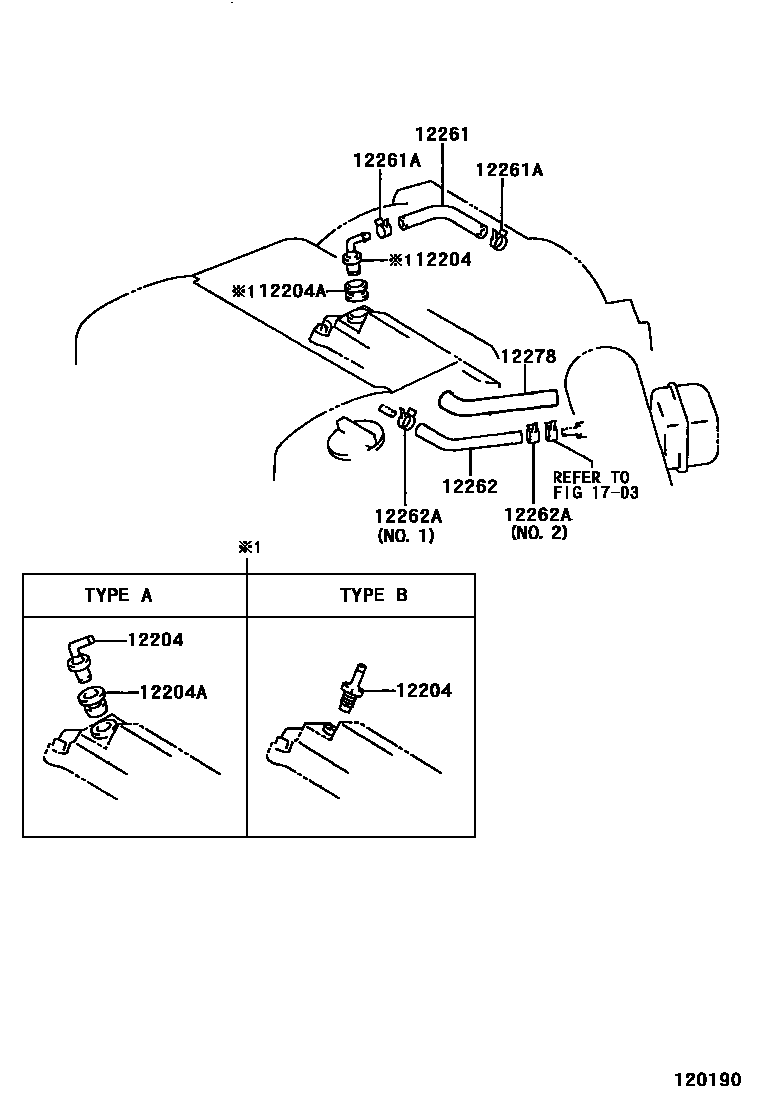

Toyota CAMRY Ventilation Hose EPC diagram — 120190
Ventilation Hose — 120190 (199608 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-20020 · 12204-20040 · 12204-74030
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12260-03020 · 12260-74070 · 12260-74071 · 12260-74090 · 12261-03040 · 12261-20010 · 12261-20011 · 12261-74180
12261AClip or clip (for vent hose)90467-14017 · 90467-14043 · 90467-15016 · 90467-16003
12262Ventilation hose No. 212262-20010 · 12262-20020 · 12262-74100
12262AClamp (for vent hose No. 2)90467-14043 · 90467-17011 · 90467-19022 · 96134-41900
12278Ventilation hose insulation pad12278-20010
