Toyota CAMRY 倒车灯 — Figure 8112

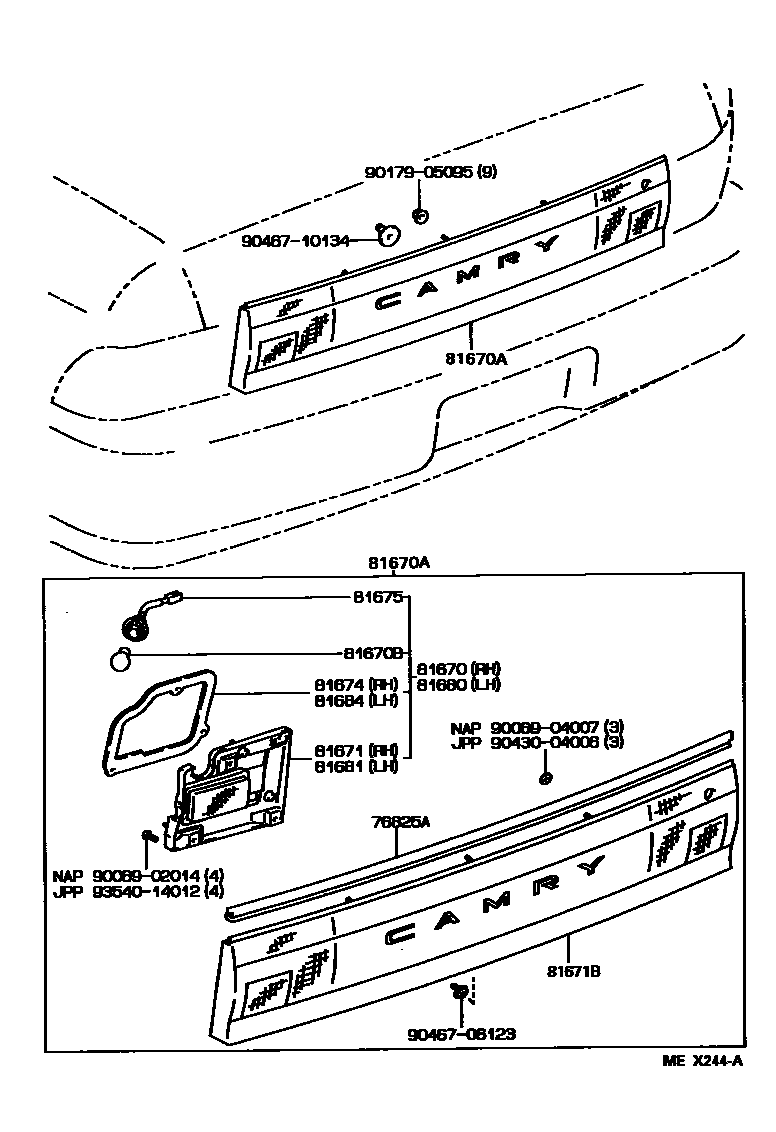

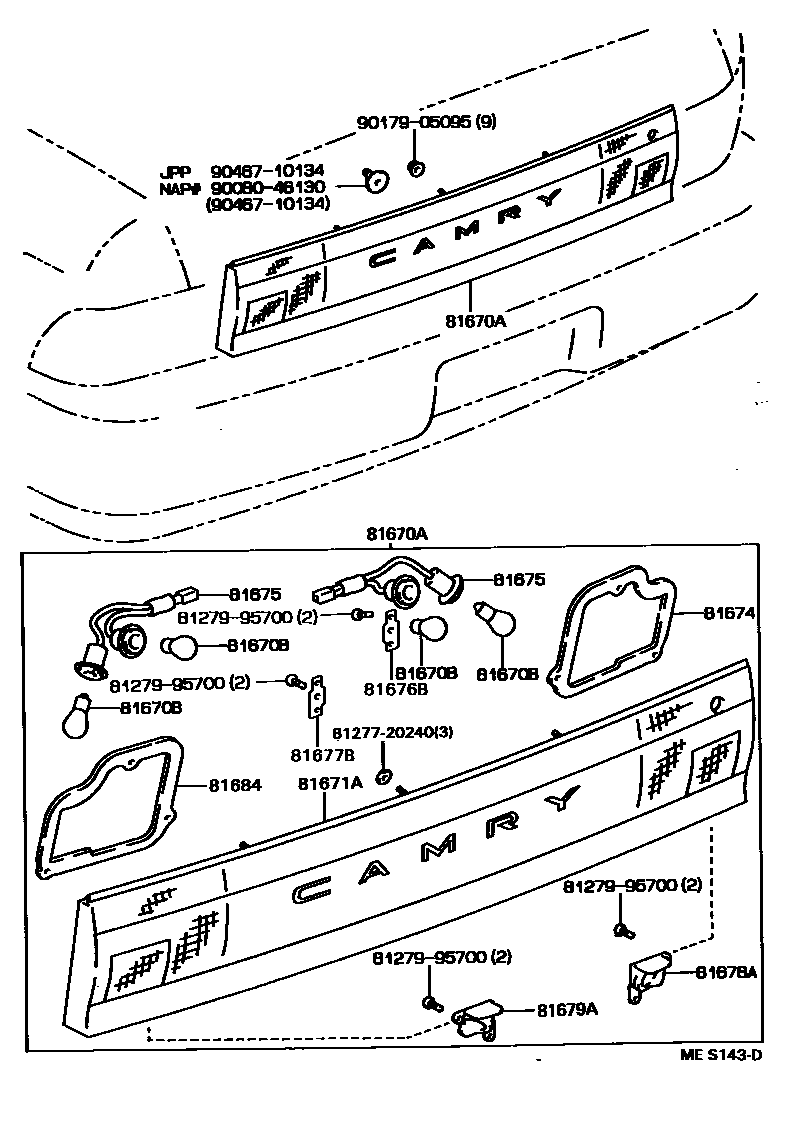

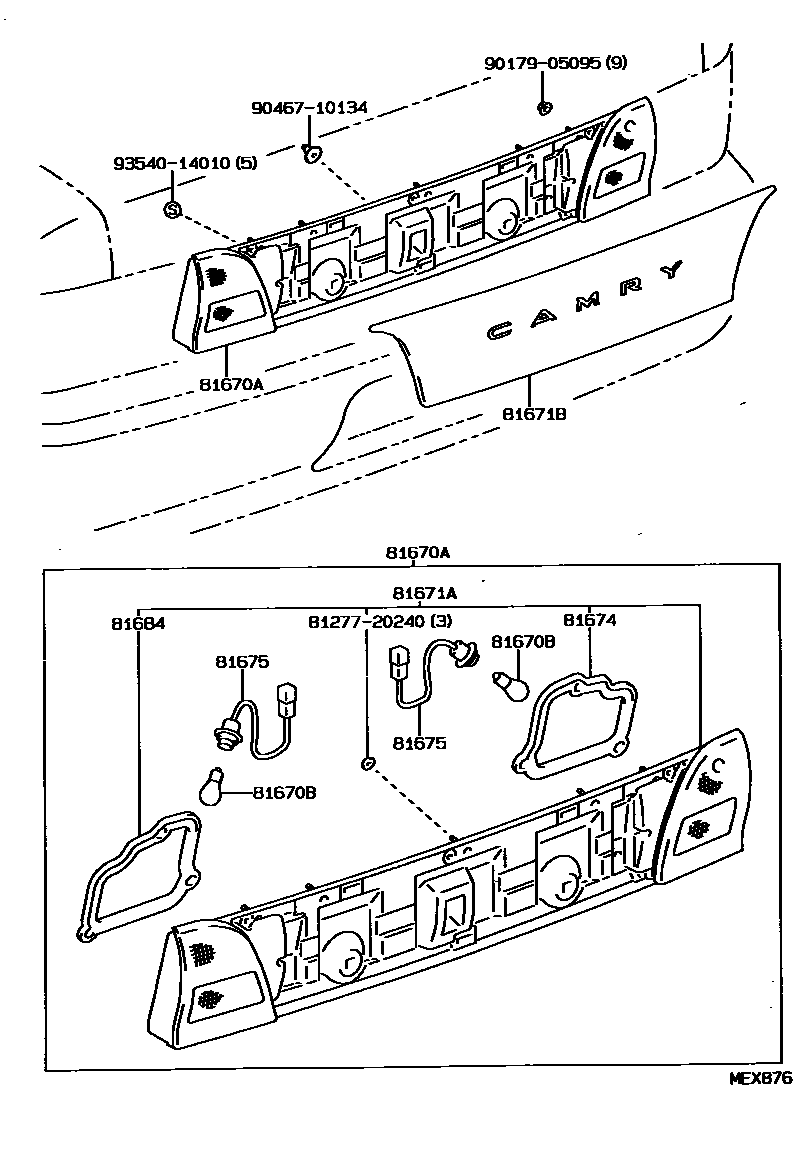

Toyota CAMRY EPC diagram 8112, 倒车灯, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76825A | Rear door exterior decorative strip protective cover | 76825-33010 |
| 81670 | Right reversing light assembly | 81670-33040 |
| 81670A | Reversing light assembly | 76801-33010 · 81670-33010 · 81670-33110 |
| 81670B | Bulb (for reversing lights) | 99132-11270 · 99132-21270 |
| 81671 | Right reversing light cover | 81671-33040 |
| 81671A | Reversing light shade and body | 81671-33050 · 81671-33110 |
| 81671B | Rear door exterior decorative strip | 76811-33010 |
| 81674 | Right reversing light body gasket | 81674-33021 · 81674-33050 · 81674-33110 |
| 81675 | Reversing light holder and wiring harness | 81675-33010 · 81675-33040 · 81675-33110 |
| 81676B | Reversing light bracket | 81676-33070 |
| 81677B | Reversing light bracket | 81677-33070 |
| 81678A | Right reversing light cover | 81678-33050 |
| 81679A | Left reversing light cover | 81679-33050 |
| 81680 | Left reversing light assembly | 81680-33030 |
| 81681 | Left reversing light cover | 81681-33030 |
| 81684 | Left reversing light body gasket | 81674-33050 · 81674-33110 |
