Toyota CAMRY 前标示灯 — Figure 8105

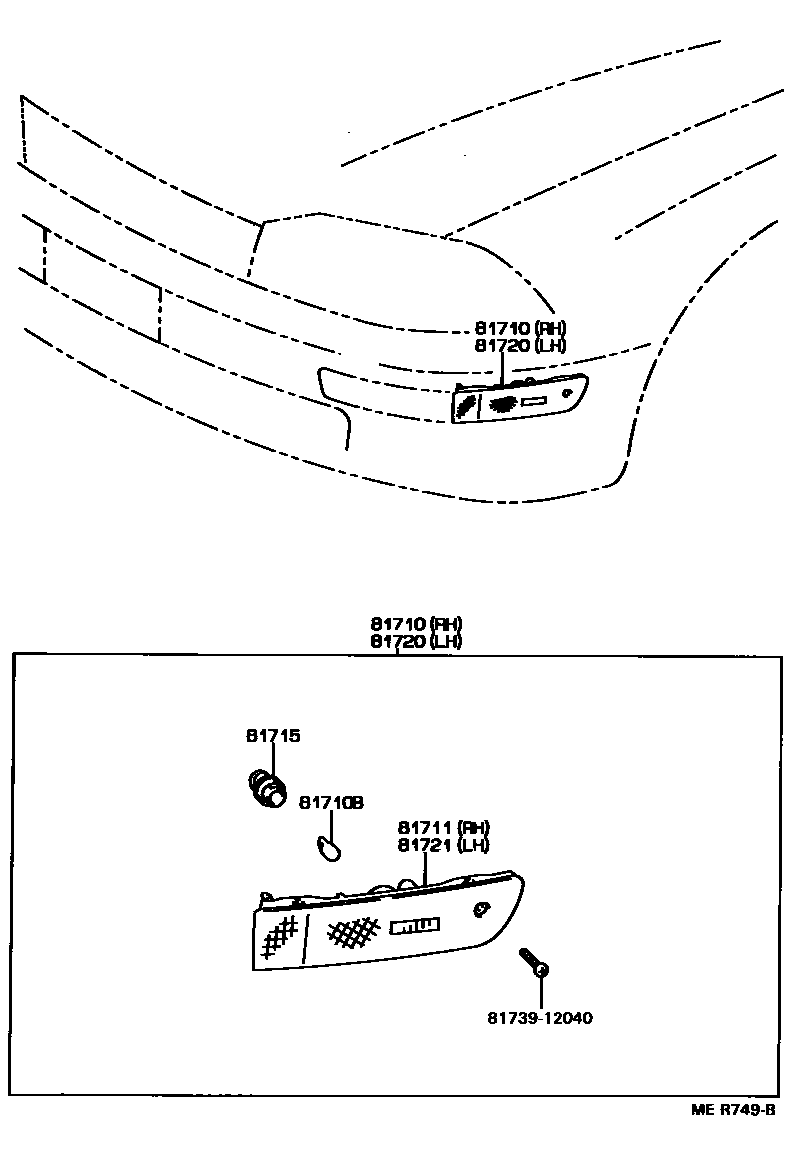

Toyota CAMRY EPC diagram 8105, 前标示灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81710 | Right front width indicator light assembly | 81730-33010 · 81730-33011 |
| 81710B | Front width light bulb | 90981-11020 |
| 81711 | Right front width indicator lamp cover | 81731-33010 · 81731-33011 |
| 81715 | Front width light lamp holder and wiring harness | 90075-99079 |
| 81720 | Left front width indicator light assembly | 81740-33010 · 81740-33011 |
| 81721 | Left front width indicator lamp cover | 81741-33010 · 81741-33011 |
