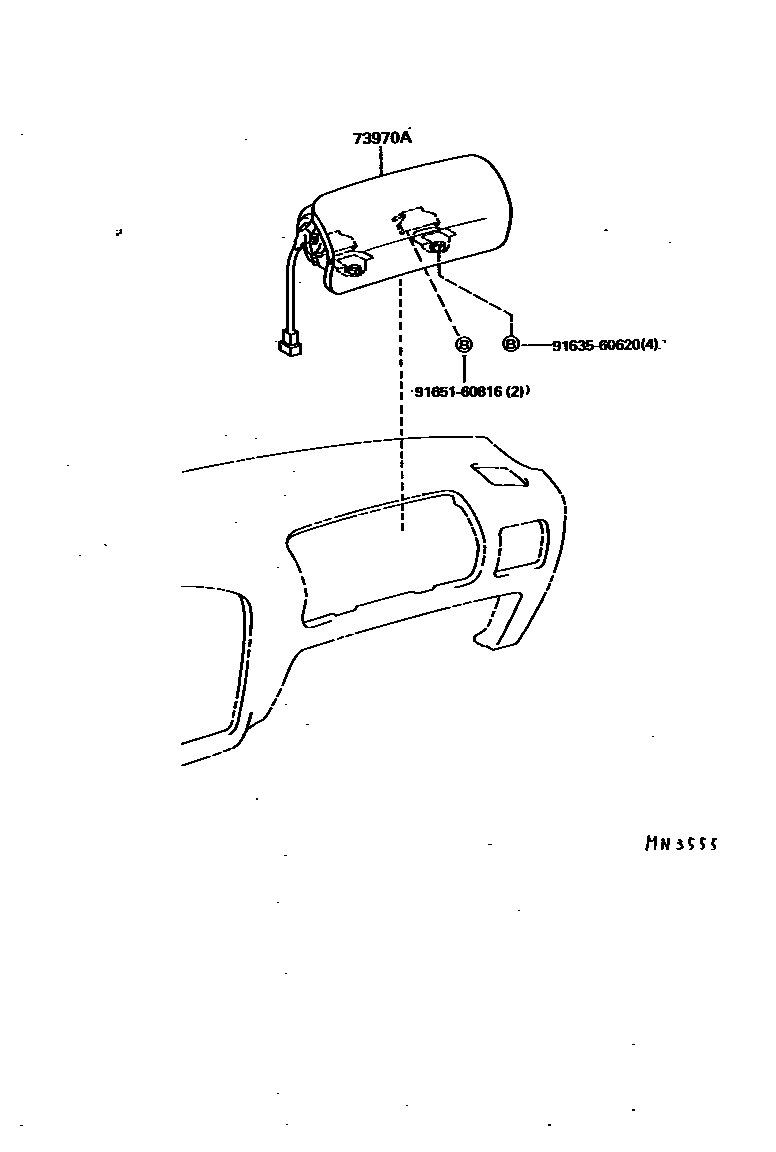

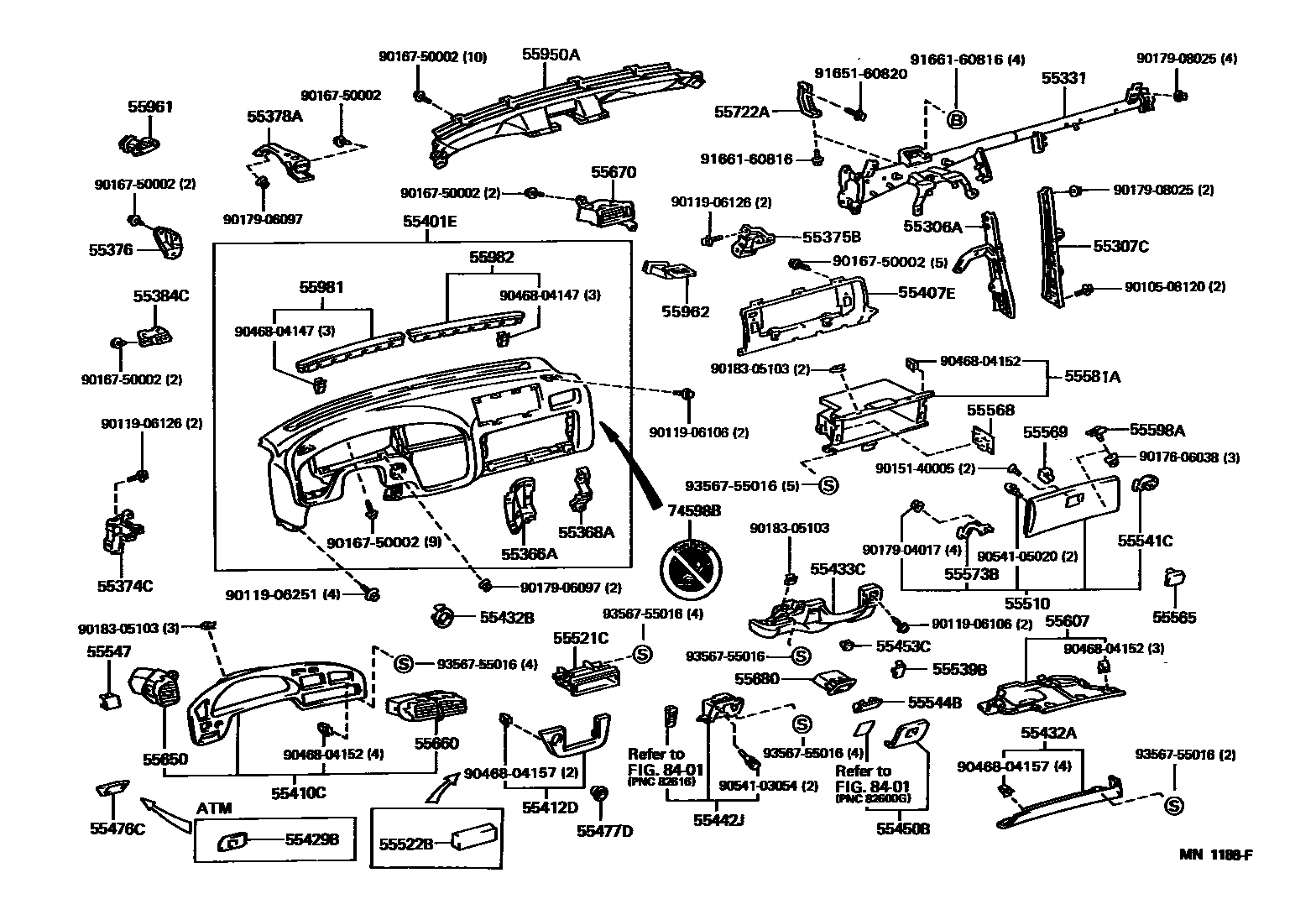

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-33010 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-33010 |
| 55331 | Dashboard reinforcement | 55330-33010 · 55330-33011 · 55330-33090 · 55330-33120 |
| 55366A | Radio No. 1 mounting bracket | 55366-33010 |
| 55368A | Radio No. 2 mounting bracket | 55368-33010 |
| 55374C | Instrument panel No. 1 lower mounting bracket | 55374-33010 |
| 55375B | No. 2 lower instrument panel mounting bracket | 55375-33010 · 55375-33050 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-33010 |
| 55378A | Glovebox lid lock mounting bracket | 55308-33010 |
| 55384C | No. 4 decorative panel mounting bracket | 55384-33020 |
| 55407E | Dashboard safety pad insert sub-assembly | 55407-33020 |
| 55410C | Instrument cluster decorative panel assembly | 55410-33010 · 55410-33011 |
| 55412D | Center instrument cluster decorative panel | 55412-33010 |
| 55429B | Instrument cluster decorative panel protective parts | 55429-33010 |
| 55432B | Lower dashboard trim panel | 55480-33010 |
| 55442J | Dashboard coin box frame | 55442-33010 · 55442-33050 |
| 55476C | Dashboard decorative panel trim parts | 55476-33010 |
| 55477D | Cigarette lighter hole cover | 55477-33010 |
| 55521C | stereo system hole cover | 55521-16030 · 55521-33010 |
| 55522B | Radio tuner opening cover | 55522-33010 · 55522-33020 |
| 55541C | Glove box hinge right arm | 55541-33010 |
| 55547 | Remote control rearview mirror hole cover | 55547-33010 |
| 55568 | Glove box cover lining plate | 55568-24020 |
| 55573B | Glove box cover left stopper arm | 55542-33010 |
| 55581A | Glove box | 55581-33010 · 55581-33030 · 55581-33060 |
| 55598A | Glovebox lid hinge bracket | 55598-33010 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-33010 · 55607-33030 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-33010 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-33010 |
| 55722A | From the front cowl upper cover to the No. 2 bracket inside the cowl | 55722-33010 |
| 55950A | Defroster nozzle assembly | 55950-06010 · 55950-33010 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-33010 |
| 55982 | Defroster No. 2 nozzle decorative strip | 55982-33010 |
| 74598B | Passenger air bag warning label | 74598-30040 |
