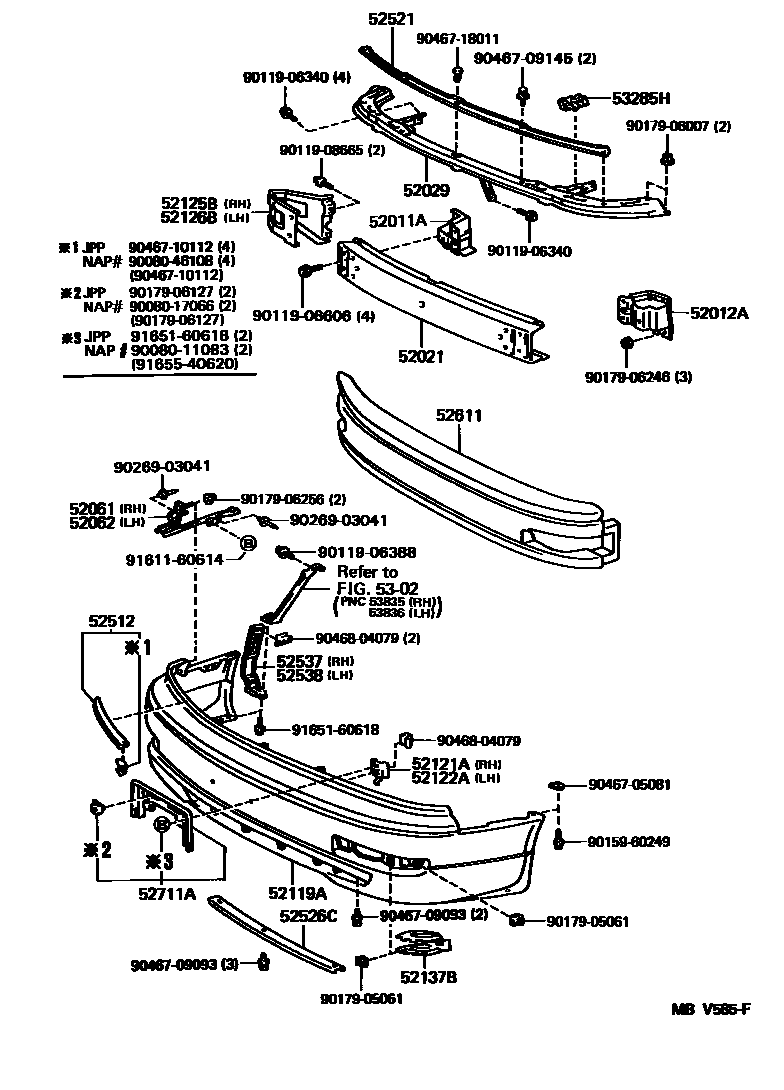

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-33010 |
| 52012A | Front bumper left arm sub-assembly | 52012-33010 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-33010 · 52021-33011 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-33010 · 52029-33040 |
| 52061 | Front bumper right side bracket sub-assembly | 52061-33010 |
| 52062 | Front bumper left bracket sub-assembly | 52062-33010 |
| 52119A | front bumper cover | 52119-33900 · 52119-33907 |
| 52121A | Front license plate right mounting bracket | 52121-33010 · 52121-33020 |
| 52122A | Front license plate left mounting bracket | 52121-33010 · 52121-33020 |
| 52125B | Front bumper reinforcement right extension section | 52125-33010 · 52125-33030 |
| 52126B | Front bumper reinforcement left extension section | 52126-33010 · 52126-33030 |
| 52137B | Front bumper No. 1 bracket plate | 52137-33010 |
| 52512 | Front bumper right curved filler | 52512-33010 |
| 52521 | Front bumper upper center fixing bracket | 52521-33010 · 52521-33030 |
| 52526C | Front bumper lower fixing bracket | 52526-33020 |
| 52537 | Front bumper right end fixing bracket | 52537-33010 · 52537-33030 |
| 52538 | Front bumper left end fixing bracket | 52538-33010 · 52538-33030 |
| 52611 | front bumper energy absorber | 52611-33010 · 52611-33030 |
| 52711A | front bumper decorative panel | 52711-33010 · 52711-33020 |
| 53285H | Radiator side 1 air seal | 53285-33010 |
