Toyota CAMRY 速度表从动齿轮(MTM) — Figure 3304

Toyota CAMRY EPC diagram 3304, 速度表从动齿轮(MTM), with 2 images and 2 PNC and OE references.

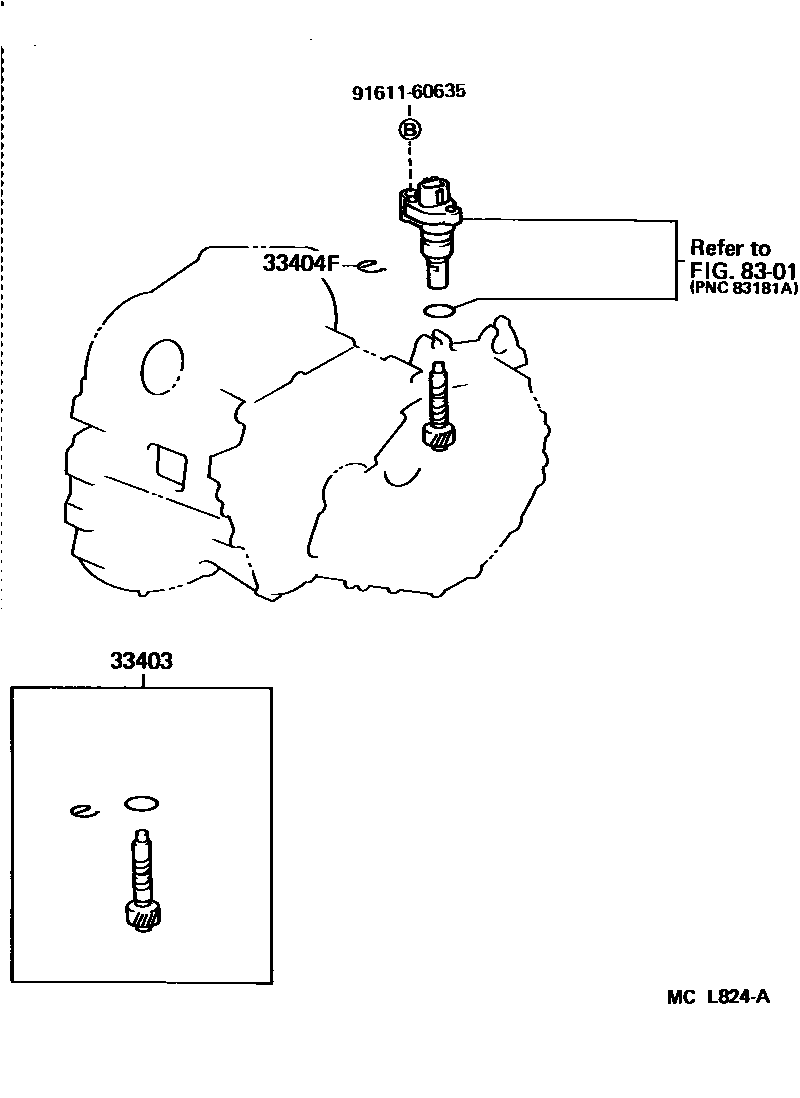

Toyota CAMRY 速度表从动齿轮(MTM) EPC diagram — MCL824A
速度表从动齿轮(MTM) — MCL824A (199106 – 999999)

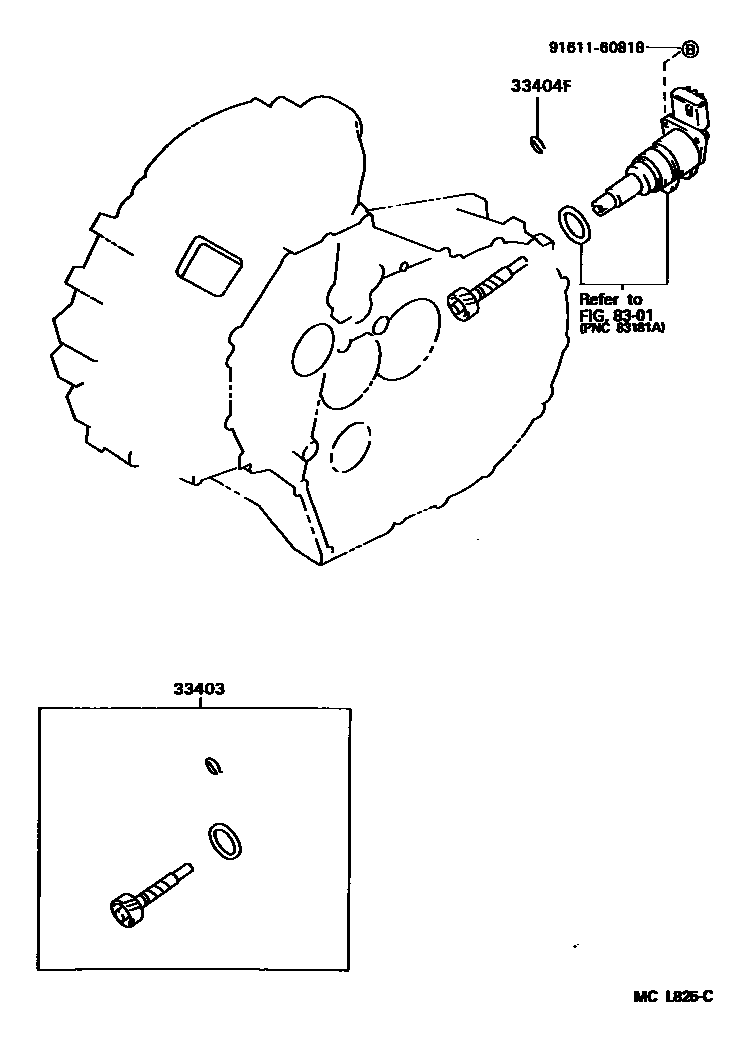

Toyota CAMRY 速度表从动齿轮(MTM) EPC diagram — MCL825C
速度表从动齿轮(MTM) — MCL825C (199106 – 199309)

PNC and OE references

PNCPart nameOE numbers
33403Speedometer driven gear sub-assembly (MTM)33403-39255 · 33403-39256 · 33403-39265
33404FClamp (for manual transmission speedometer shaft sleeve)90468-12005
