Toyota CAMRY Alternator — Figure 1903

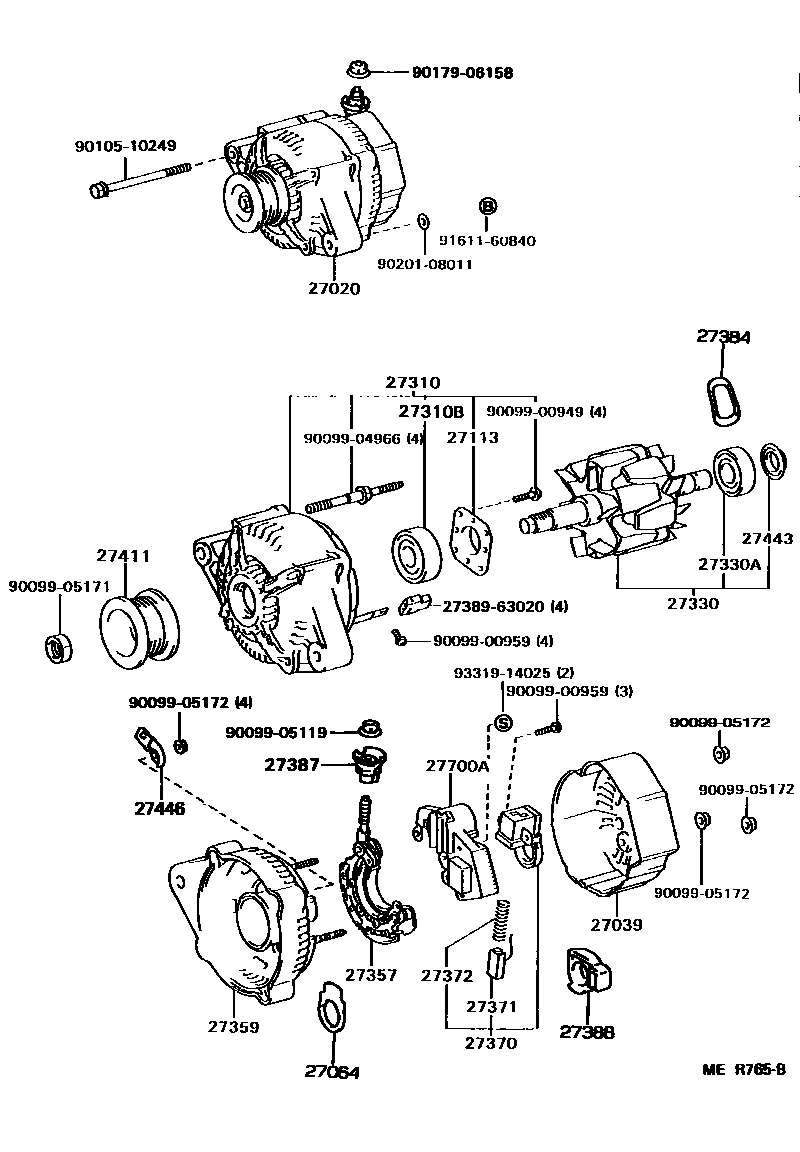

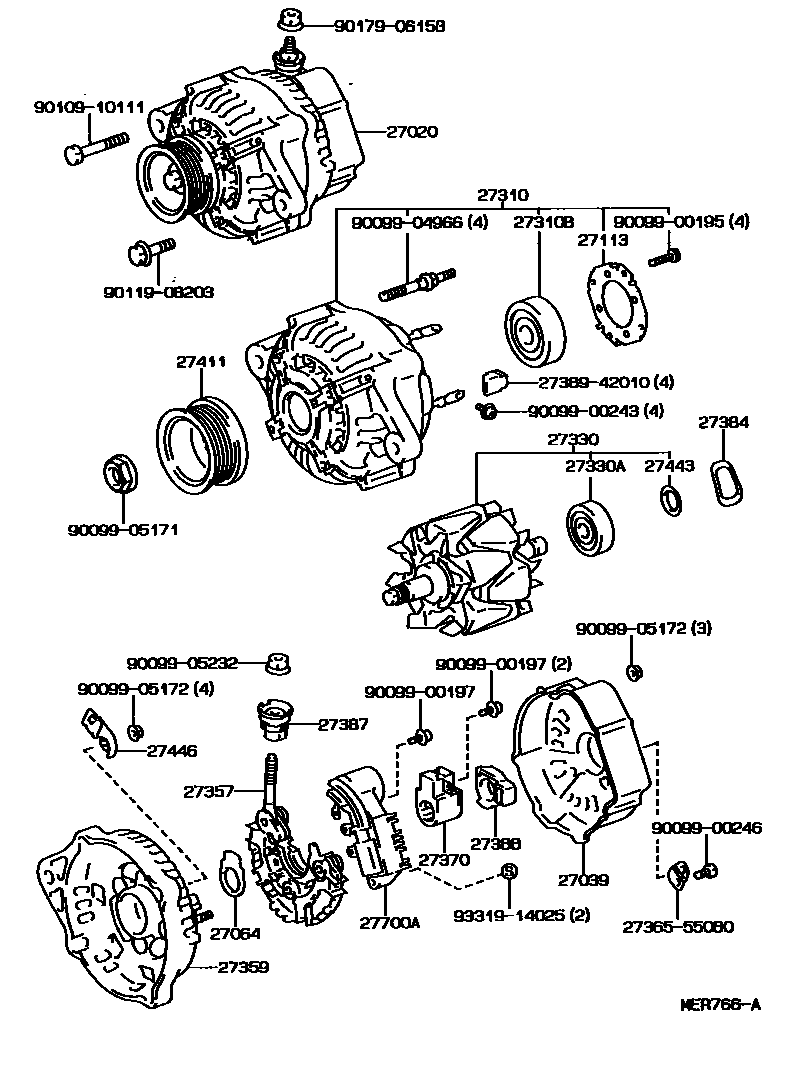

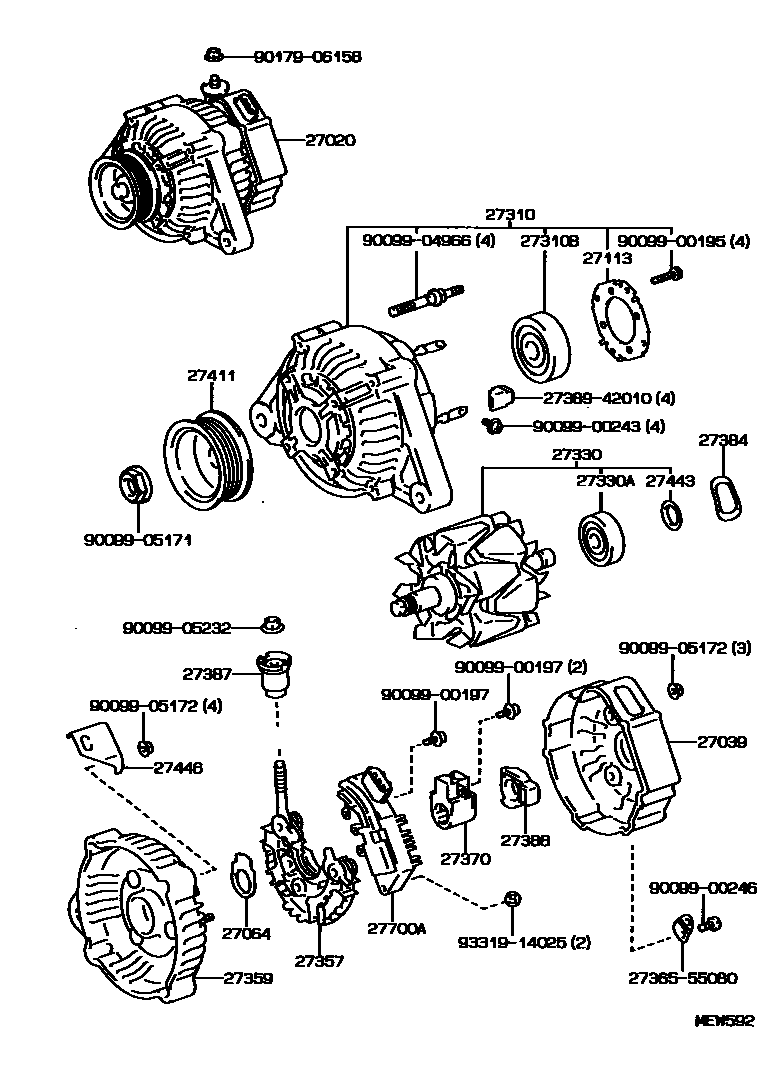

Toyota CAMRY EPC diagram 1903, Alternator, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-20010 · 27060-20020 · 27060-62070 · 27060-62090 · 27060-74270 · 27060-74370 |
| 27039 | Alternator Rear End Cover | 27039-15170 · 27039-16310 · 27039-20020 · 27039-42010 · 27039-46190 · 27039-55080 · 27039-72010 · 27039-73020 |
| 27064 | Generator sealing plate | 27064-42010 |
| 27113 | Generator bearing block | 27312-42010 · 27312-70200 |
| 27310 | Alternator Drive End Frame Assembly | 27310-20020 · 27310-20030 · 27310-62070 · 27310-62090 · 27310-70100 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10178 · 90099-10192 |
| 27330 | Alternator Rotor Assembly | 27330-72101 · 27330-72280 · 27330-76030 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27357 | Generator rectifier frame | 27357-55080 · 27357-62040 · 27357-63020 |
| 27359 | Generator rectifier end frame | 27359-20020 · 27359-42010 · 27359-43160 · 27359-43161 · 27359-62090 |
| 27370 | Alternator Brush Holder Assembly | 27370-35060 · 27370-70300 · 27370-75060 |
| 27371 | Generator brushes | 27371-70300 |
| 27372 | Generator brush spring | 27372-63020 |
| 27384 | Washer | 27384-50030 |
| 27387 | Terminal Insulator | 27387-42020 · 27387-70170 |
| 27388 | Generator brush cover | 27388-42010 |
| 27411 | Alternator Pulley | 27411-16211 · 27411-20020 · 27411-62070 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27446 | Generator clamp | 27446-20020 · 27446-74250 |
| 27700A | Generator voltage regulator assembly | 27700-46030 · 27700-46060 · 27700-62010 · 27700-74030 |
