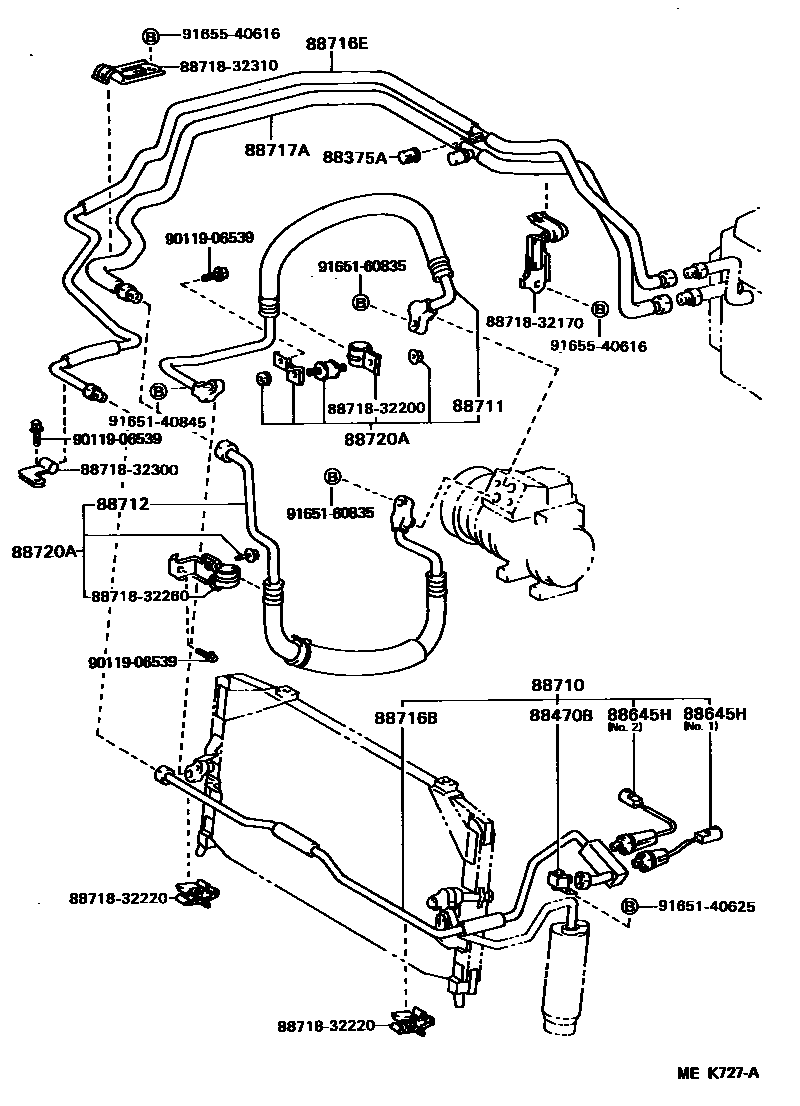

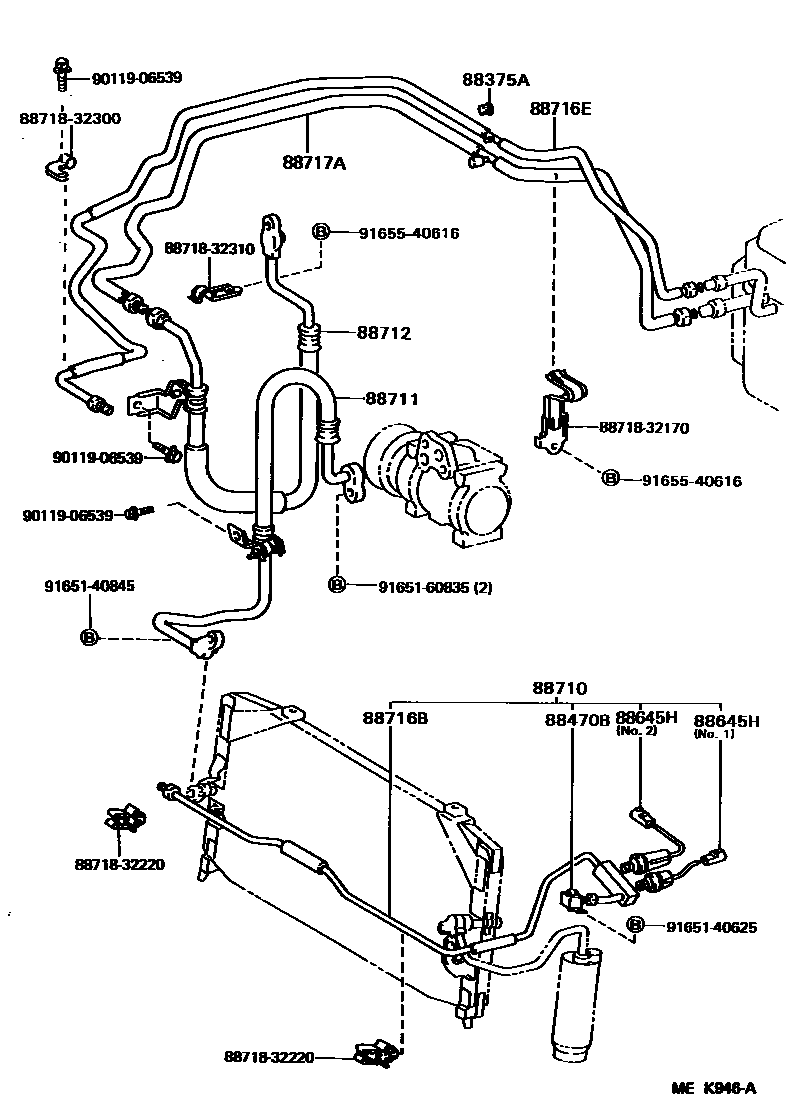

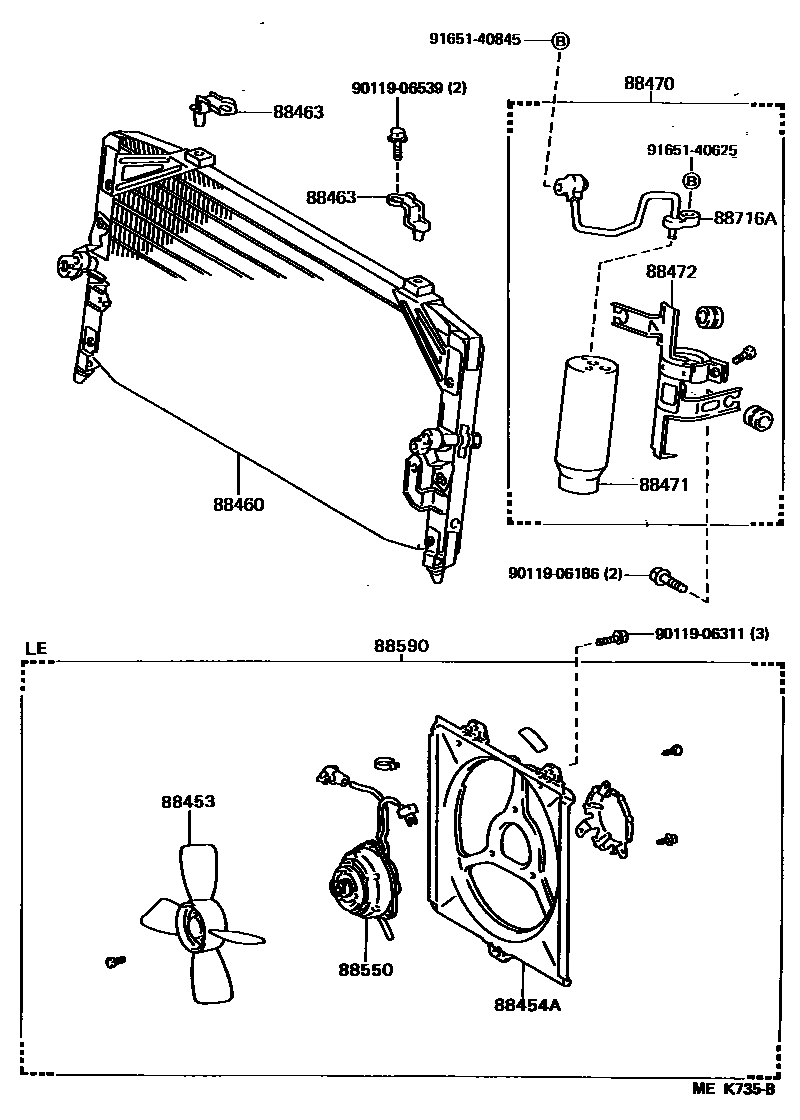

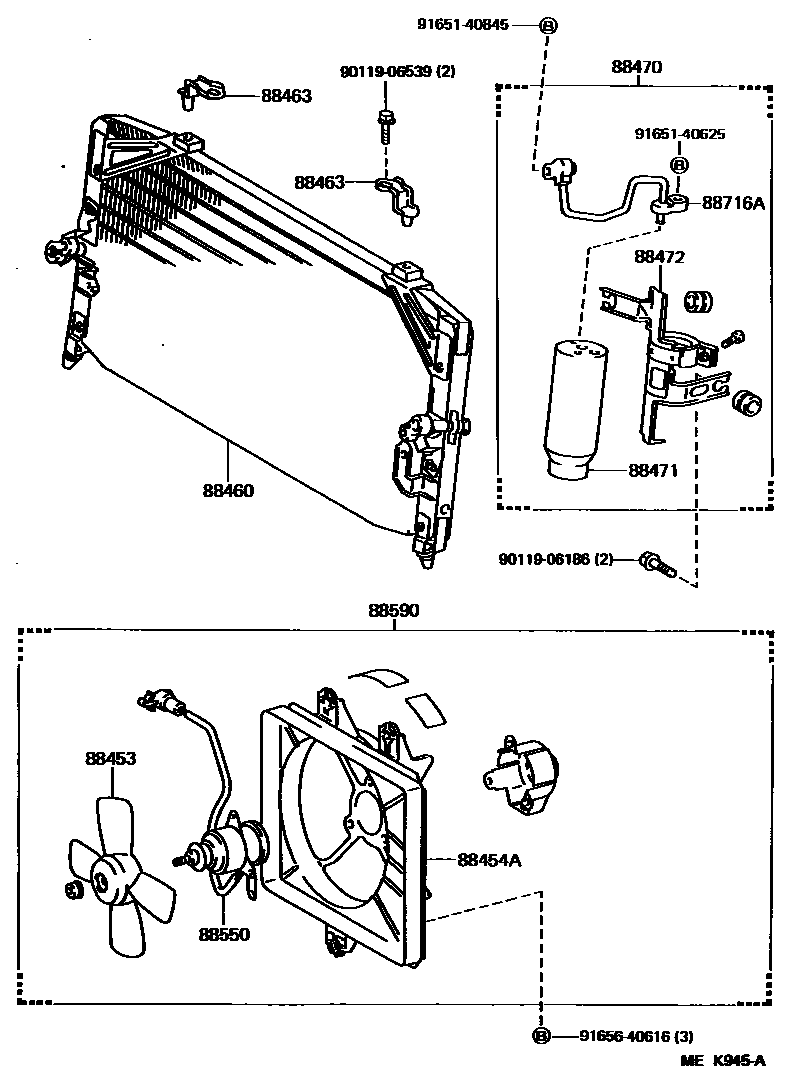

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-20010 |
| 88453 | Cooling fan (for condenser) | 88453-32030 · 88453-32040 |
| 88454A | fan cover | 88454-32041 · 88454-32050 |
| 88460 | Air conditioning condenser assembly | 88460-32090 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-32021 |
| 88470 | Cooler reservoir and dryer assembly | 88470-32010 · 88470-32020 |
| 88470B | fuse bolt | 88475-12020 |
| 88471 | Air conditioning fluid storage tank | 88471-10030 |
| 88472 | No. 1 liquid storage tank bracket | 88473-32020 · 88473-32030 |
| 88550 | Blower motor assembly (for condenser) | 88550-32060 · 88550-32070 |
| 88590 | Blower assembly with hood | 88590-32081 · 88590-32110 |
| 88645H | No. 1 pressure switch | 88645-32040 · 88645-32050 |
| 88710 | Air conditioning pipe assembly | 88710-32060 · 88710-32080 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-32060 · 88711-32080 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-32161 · 88712-32162 · 88712-32180 · 88712-32181 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-32230 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-32340 · 88716-32350 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-32330 |
| 88717A | Cooler refrigerant suction pipe A | 88717-32230 · 88717-32231 |
| 88720A | Air conditioning hoses and accessories | 88720-32040 · 88720-32061 · 88720-32062 |
