Toyota CAMRY 扬声器 — Figure 8602

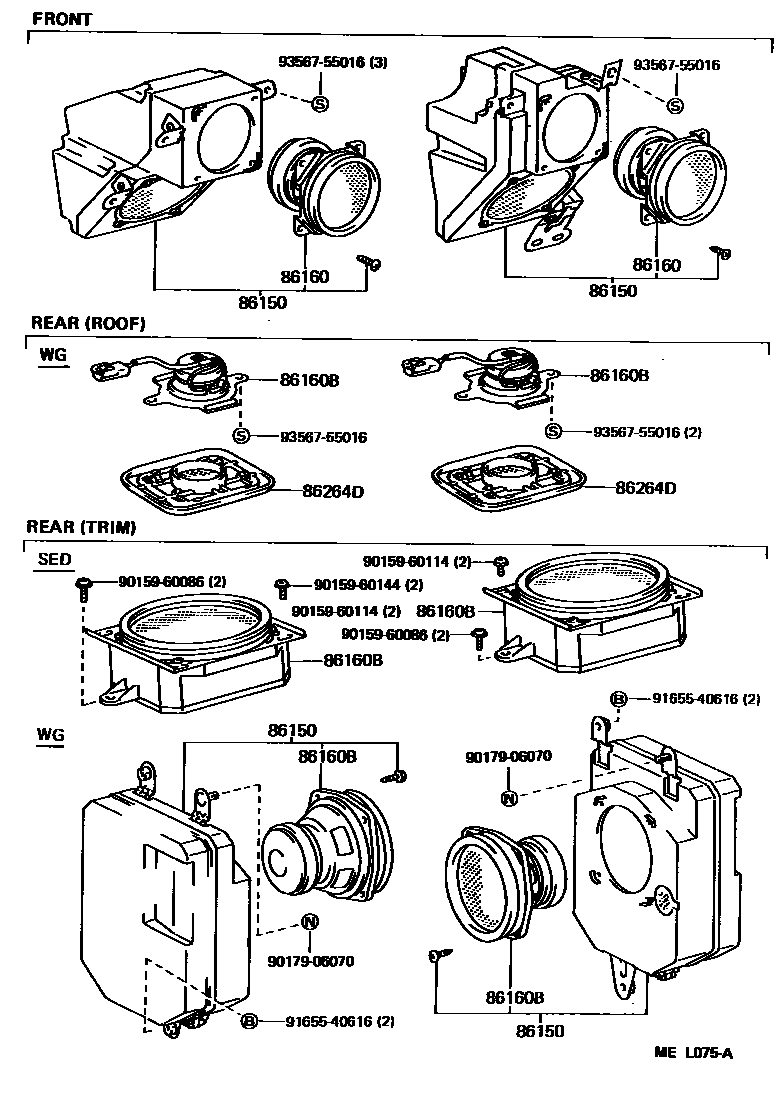

Toyota CAMRY EPC diagram 8602, 扬声器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-32120 · 86150-32130 · 86150-32140 · 86150-32150 · 86150-32160 · 86150-32170 |
| 86160 | No. 1 front speaker assembly | 86160-32141 · 86160-32190 |
| 86160B | Rear speaker assembly | 86160-32150 · 86160-32160 · 86160-32180 |
