Toyota CAMRY 座椅电机和座椅加热器 — Figure 8513

Toyota CAMRY EPC diagram 8513, 座椅电机和座椅加热器, with 1 images and 2 PNC and OE references.

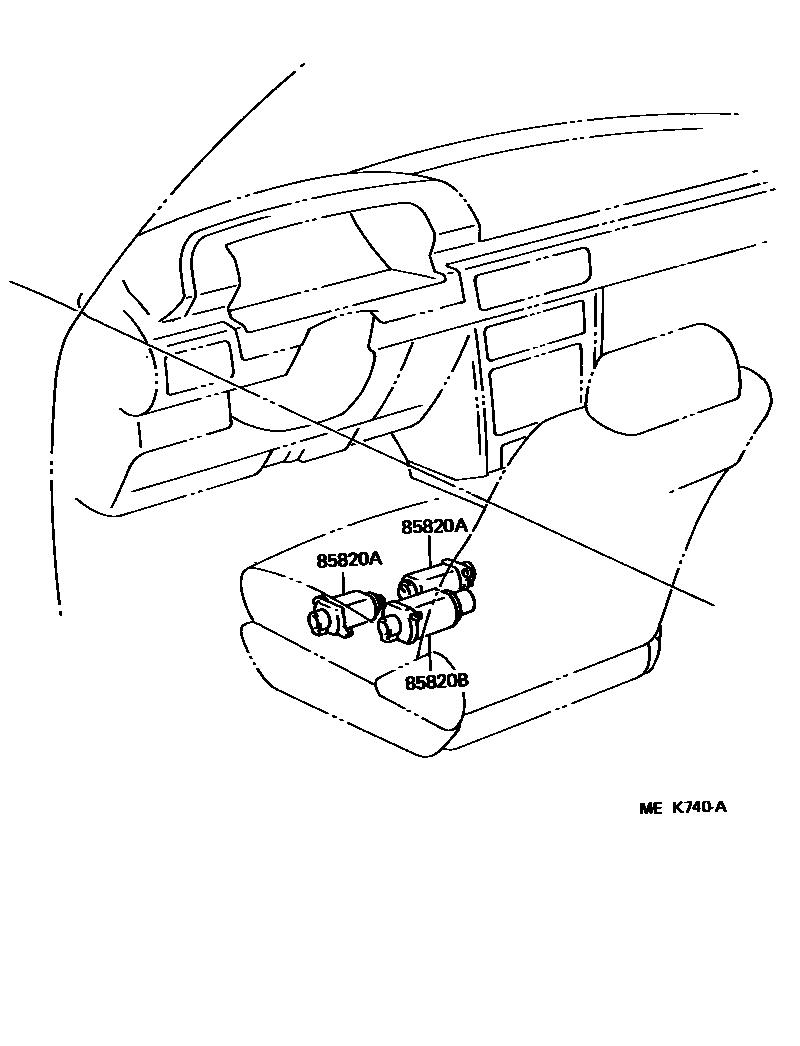

Toyota CAMRY 座椅电机和座椅加热器 EPC diagram — MEK740A
座椅电机和座椅加热器 — MEK740A (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
85820AElectric seat motor assembly (for front seat raising and lowering)85820-14020 · 85820-22030
85820BElectric seat motor assembly (for front seat sliding)85820-14010
