Toyota CAMRY 挡风玻璃清洗器 — Figure 8503

Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 13 PNC and OE references.

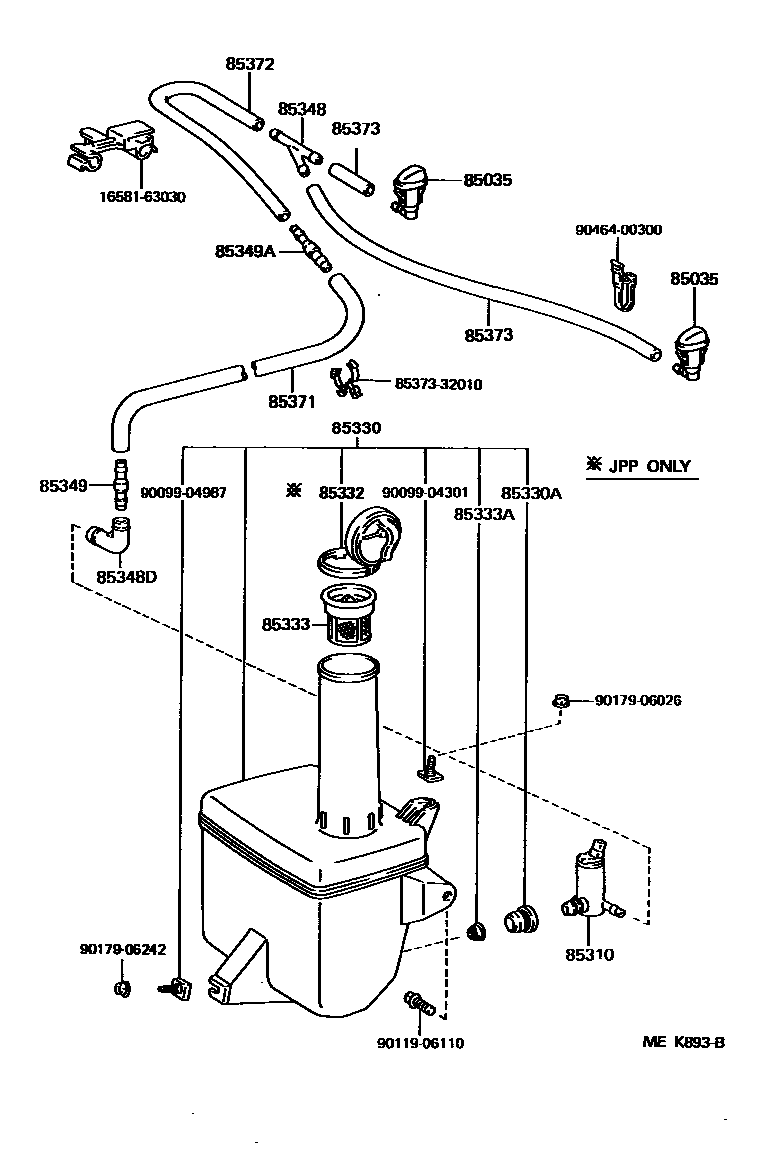

Toyota CAMRY 挡风玻璃清洗器 EPC diagram — MEK893B
挡风玻璃清洗器 — MEK893B (198808 – 999999)

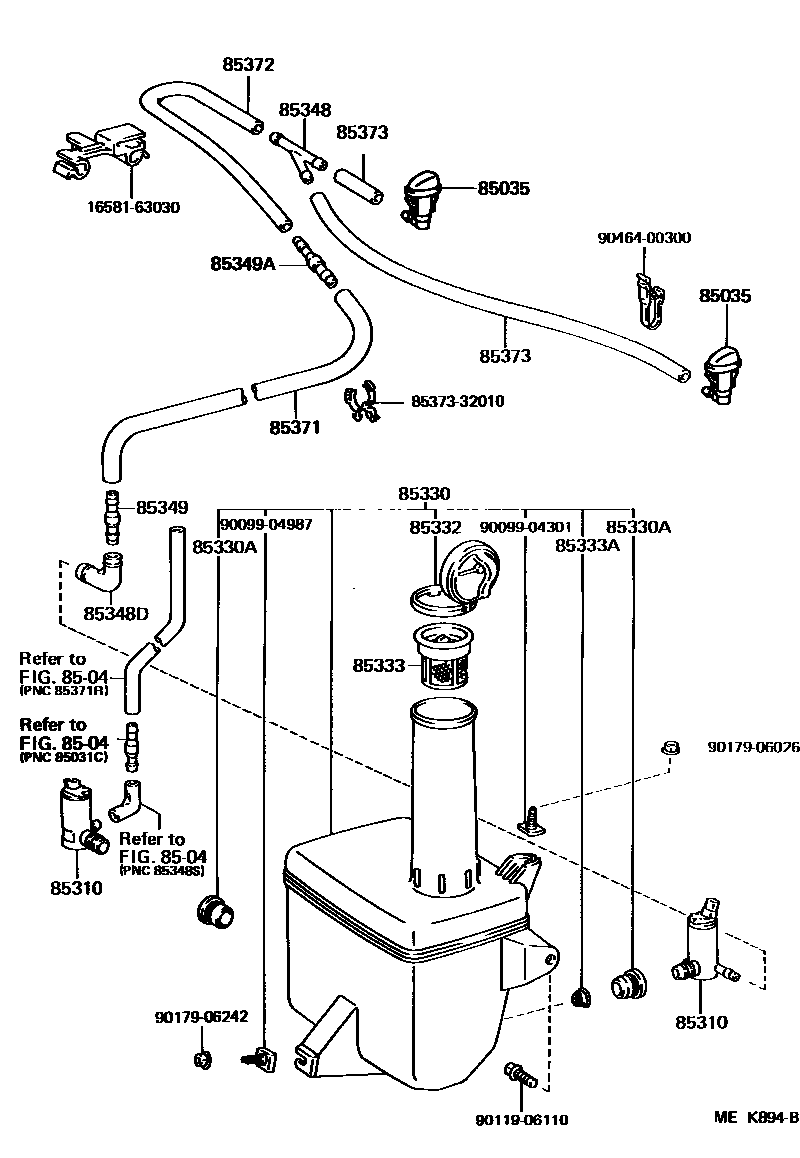

Toyota CAMRY 挡风玻璃清洗器 EPC diagram — MEK894B
挡风玻璃清洗器 — MEK894B (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
85035Cleaner nozzle sub-assembly85035-32120 · 85035-32140
85310Windshield washer motor and pump assembly85310-03010 · 85310-14080 · 85310-32020
85330Windshield washer fluid tank assembly85331-03010 · 85331-32161 · 85331-32171
85330AWindshield washer fluid tank bushing90099-32089 · 90099-32103
85332Windshield washer fluid tank cap85332-03010 · 85332-32161
85333Windshield washer fluid tank filter85333-03010 · 85333-12470
85333AWindshield washer fluid tank filter No. 285333-20020
85348Windshield washer hose connector No. 185348-12250
85348DNo. 1 windshield washer elbow joint85355-32110
85349Windshield washer hose connector No. 185349-20010
85349AWindshield washer hose connector No. 285349-14010
85371Windshield washer hose (from motor to connector)90099-33192
85372Windshield washer hose No. 1 (from connector to connector)90099-33080
