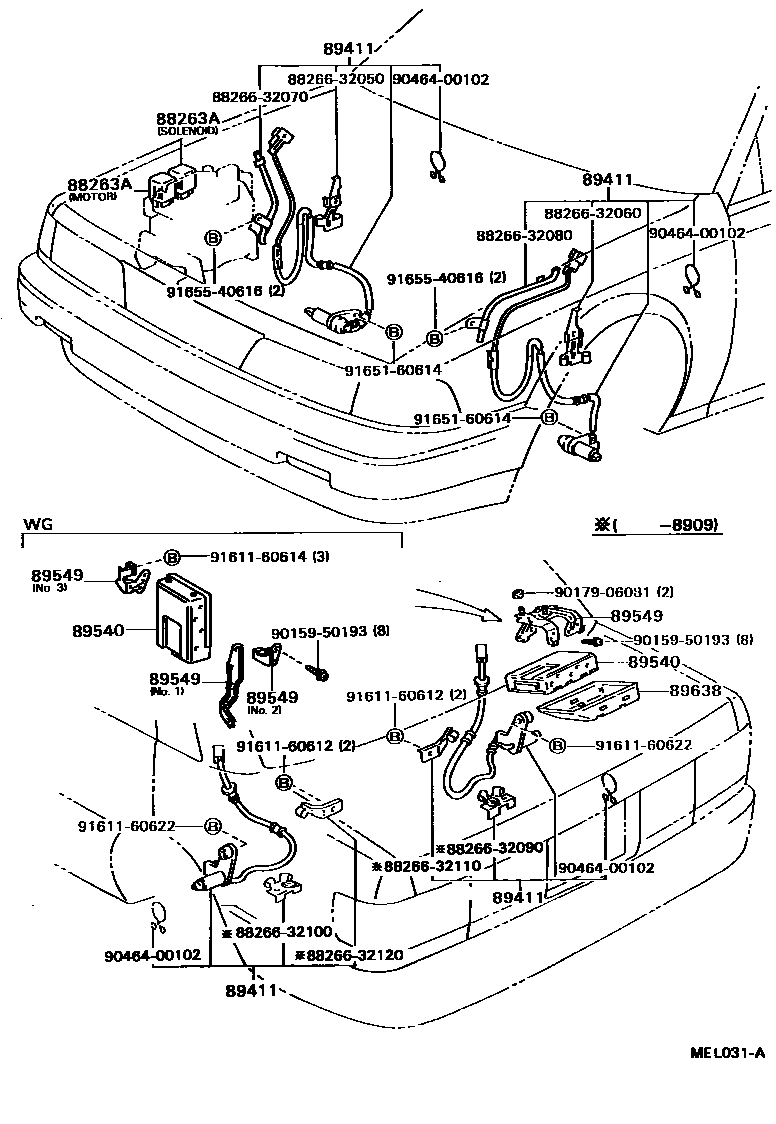

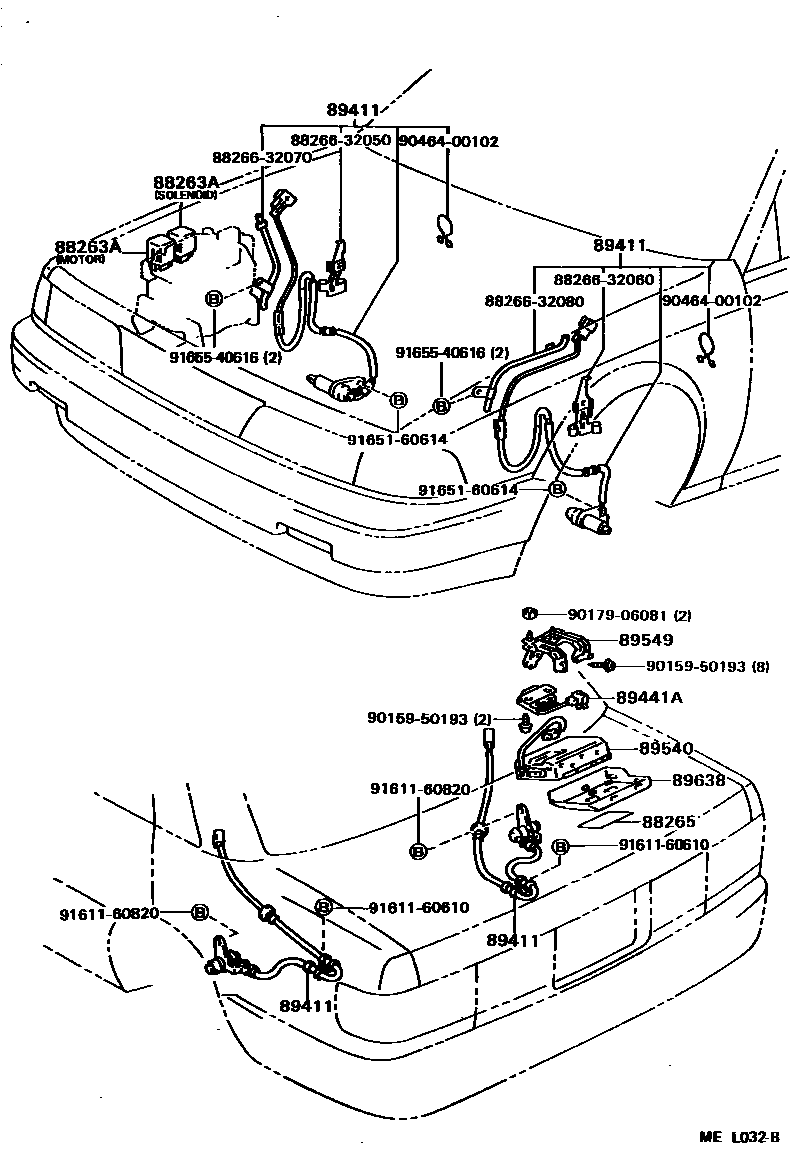

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88263A | Anti-skid control relay | 88263-14110 · 88263-14120 |
| 88265 | Anti-skid control warning label | 88265-20040 |
| 89411 | Speed sensor | 89542-32010 · 89543-32010 · 89545-32010 · 89545-32020 · 89546-32010 · 89546-32020 |
| 89441A | deceleration sensor | 89441-32010 |
| 89540 | Anti-skid control ECU assembly | 89541-32020 · 89541-32030 |
| 89549 | Anti-slip control ECU bracket | 88267-32070 · 88268-32060 · 88269-32060 · 89549-32020 |
| 89638 | Brake control ECU cover | 89638-32010 |
