Toyota CAMRY 挡泥板和扰流板 — Figure 7601

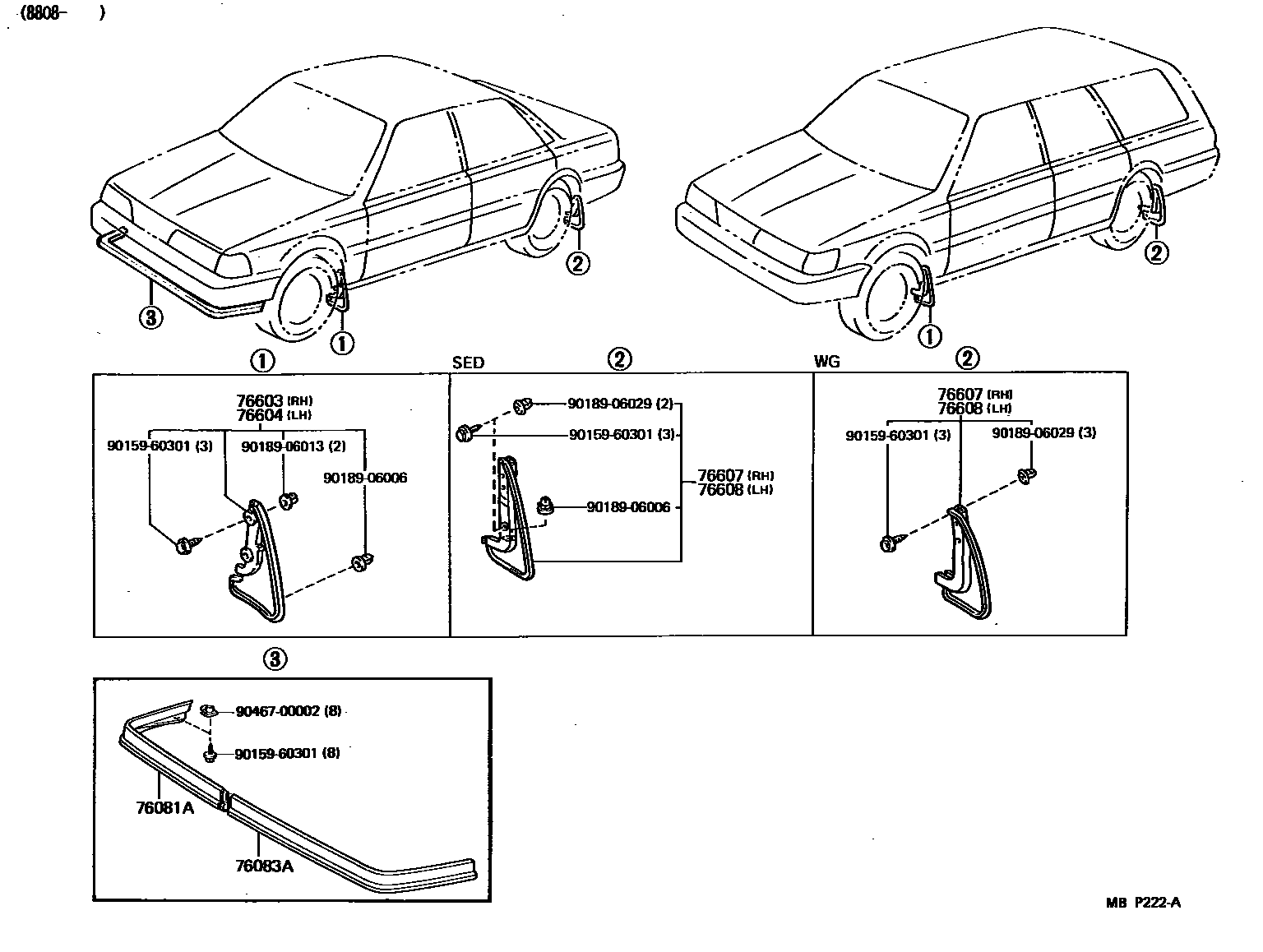

Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76081A | Right front spoiler sub-assembly | 76081-32010 |
| 76083A | Left front spoiler sub-assembly | 76083-32010 |
| 76603 | Right front fender fender sub-assembly | 76621-39095 |
| 76604 | Left front fender fender sub-assembly | 76622-39095 |
| 76607 | Right rear side fender sub-assembly | 76625-39135 · 76625-39145 |
| 76608 | Left rear side fender sub-assembly | 76626-39125 · 76626-39135 |
