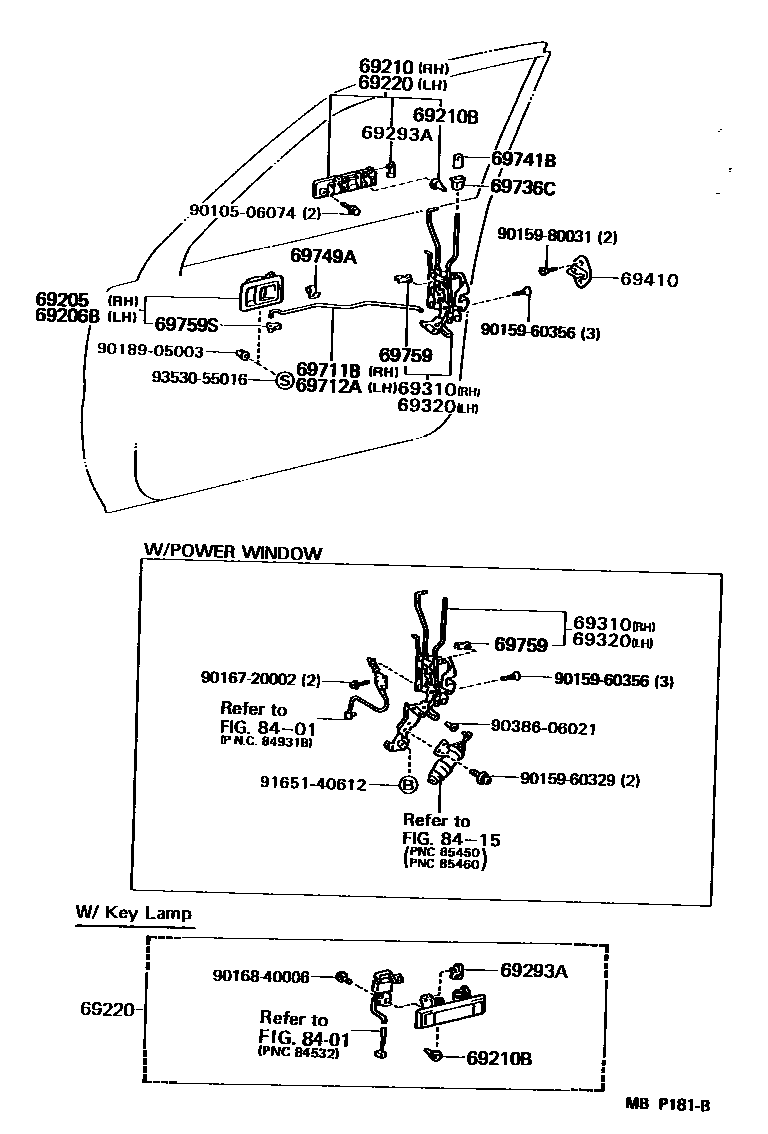

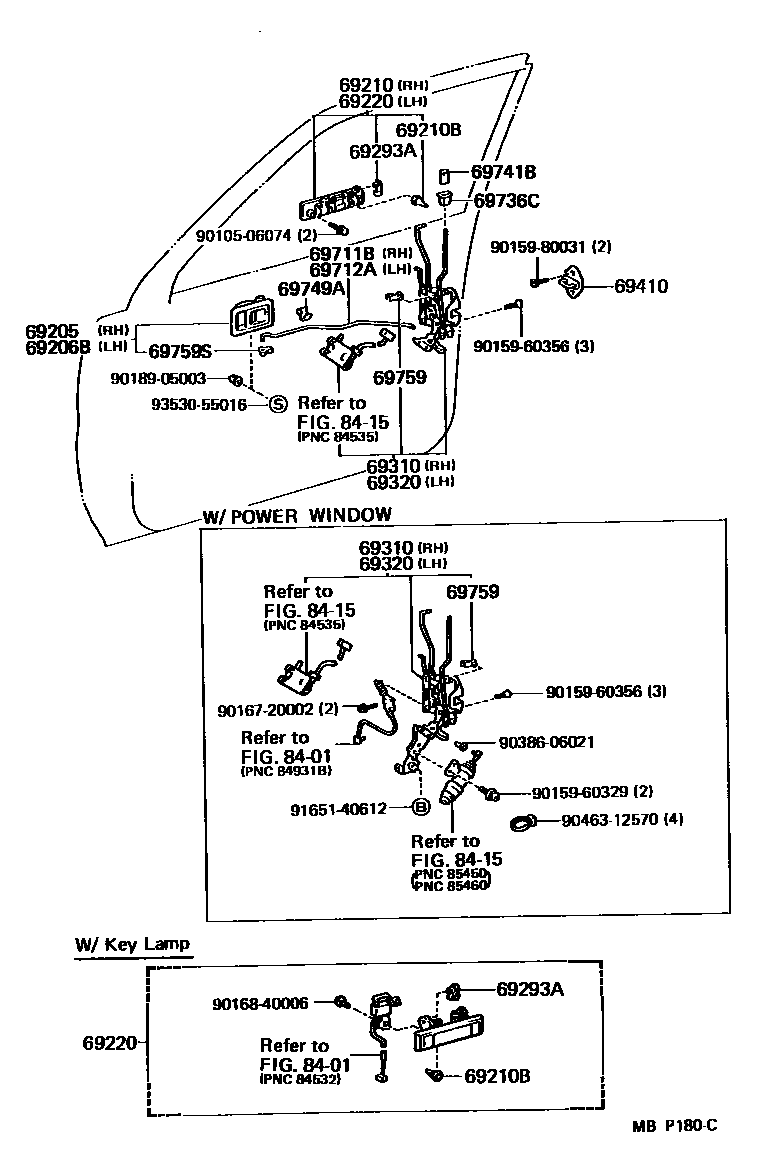

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-32030 |
| 69210B | Cushion pad (for front door outer handle) | 90541-03021 |
| 69220 | Left front door outer handle assembly | 69220-32030 · 69220-32040 |
| 69293A | Front door outer handle buckle | 69293-12050 · 69293-12060 |
| 69310 | Right front door lock assembly | 69310-32290 · 69310-32300 · 69310-32330 · 69310-32350 |
| 69320 | Left front door lock assembly | 69320-32290 · 69320-32300 · 69320-32330 · 69320-32350 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69711B | Right front door lock remote control lever | 69711-32030 |
| 69712A | Left front door lock remote control lever | 69712-32020 |
| 69736C | Front door locking link guide block | 69736-12030 |
| 69749A | Front door lock No. 1 link clamp | 69749-30020 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-24050 · 69759-24060 |
| 69759S | Front door inner handle buckle | 69759-14050 · 69759-24010 · 69759-24020 · 69759-24070 |
