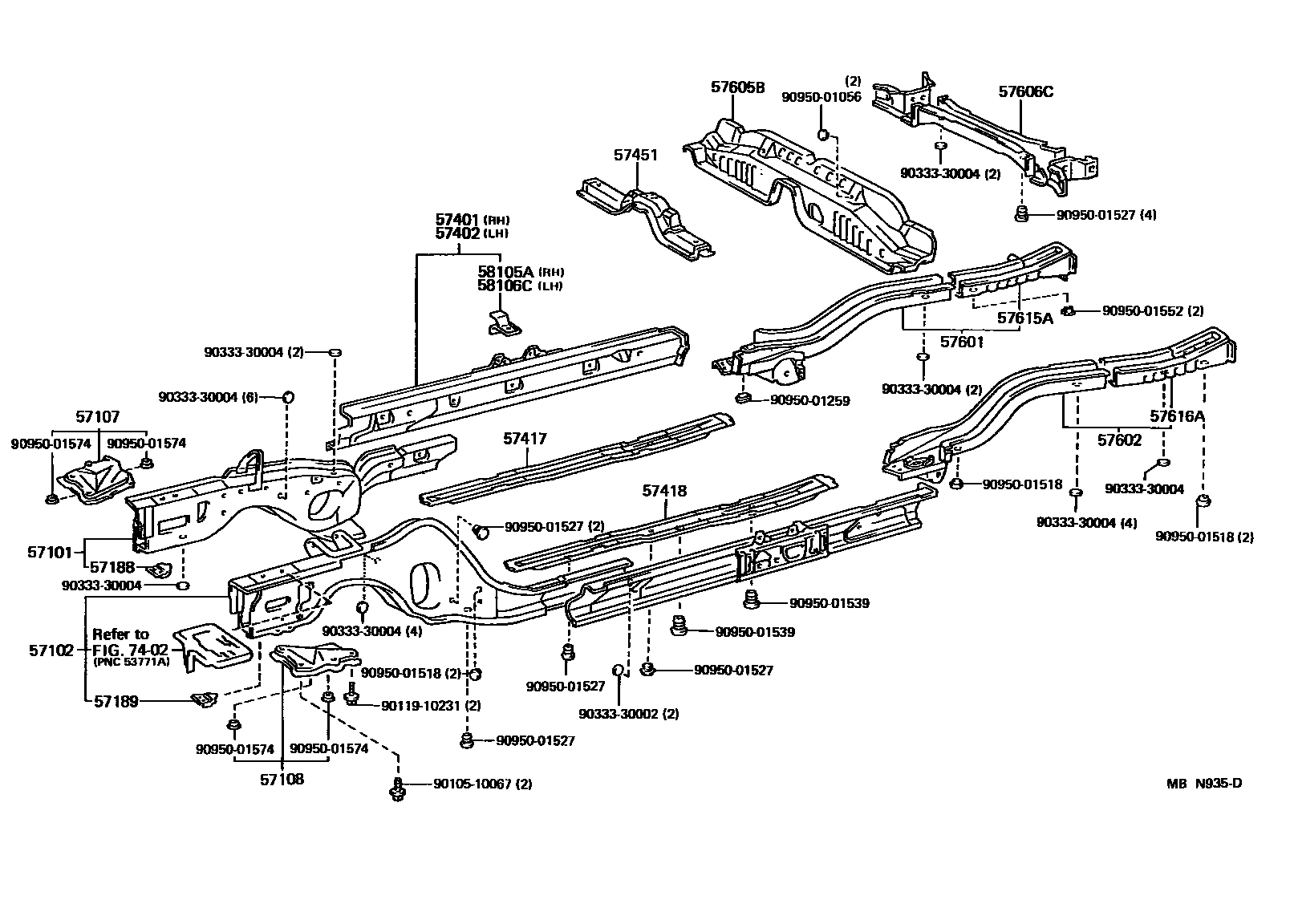

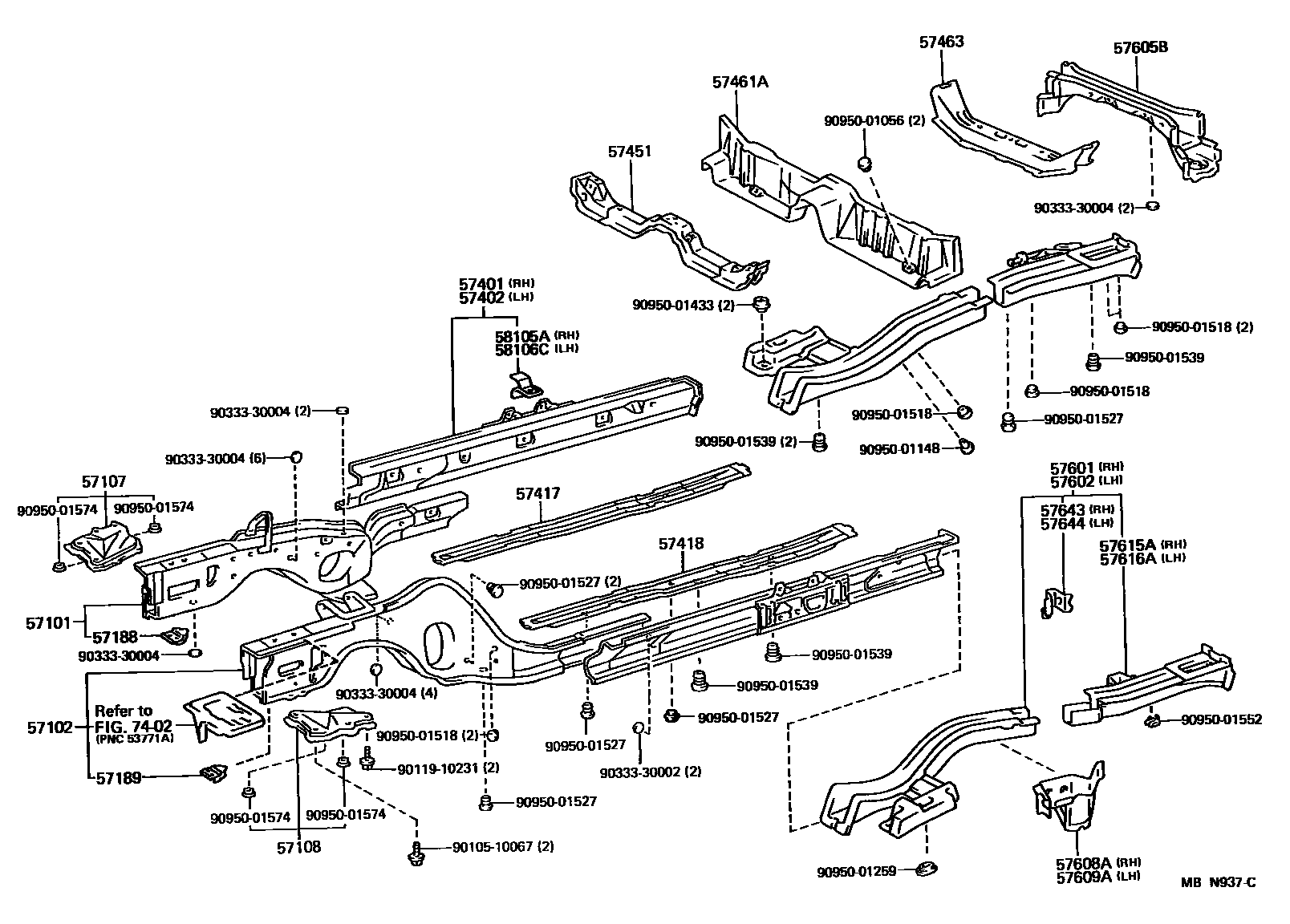

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57101 | Right front longitudinal beam sub-assembly | 57101-32041 · 57101-32070 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-32041 |
| 57107 | Right support rod bracket sub-assembly | 57107-32020 |
| 57108 | Left support rod bracket sub-assembly | 57108-32020 |
| 57188 | Right front longitudinal beam extension reinforcement | 57188-32030 |
| 57189 | Left front longitudinal beam extension reinforcement | 57189-32030 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-32030 · 57401-32040 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-32030 · 57402-32040 |
| 57417 | Front floor lower right reinforcement | 57417-32030 · 57417-32031 |
| 57418 | Front floor lower left reinforcement | 57417-32030 · 57417-32031 |
| 57451 | front floor cross member | 57408-32020 · 57408-32030 |
| 57461A | central floor beam | 57461-20030 |
| 57463 | Center floor beam No. 3 | 57463-20020 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-32041 · 57601-32071 · 57601-32120 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-32041 · 57602-32071 · 57602-32110 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-32020 · 57605-32040 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-32030 · 57606-32040 |
| 57608A | Rear floor No. 4 cross member sub-assembly | 57608-20050 |
| 57609A | Rear floor No. 5 cross member sub-assembly | 57609-20050 |
| 57615A | Rear floor right rear longitudinal member | 57615-32904 · 57615-32906 · 57615-32910 |
| 57616A | Rear floor left rear longitudinal member | 57616-32910 · 57616-32911 · 57616-32912 |
| 57643 | Rear floor center right longitudinal beam reinforcement | 57643-20020 |
| 57644 | Rear floor center left longitudinal beam reinforcement | 57644-20020 |
| 58105A | Front right seat outer mounting bracket sub-assembly | 58105-32020 |
| 58106C | Front left seat outer mounting bracket sub-assembly | 58106-32020 |
