Toyota CAMRY 制动配管和卡箍 — Figure 4708

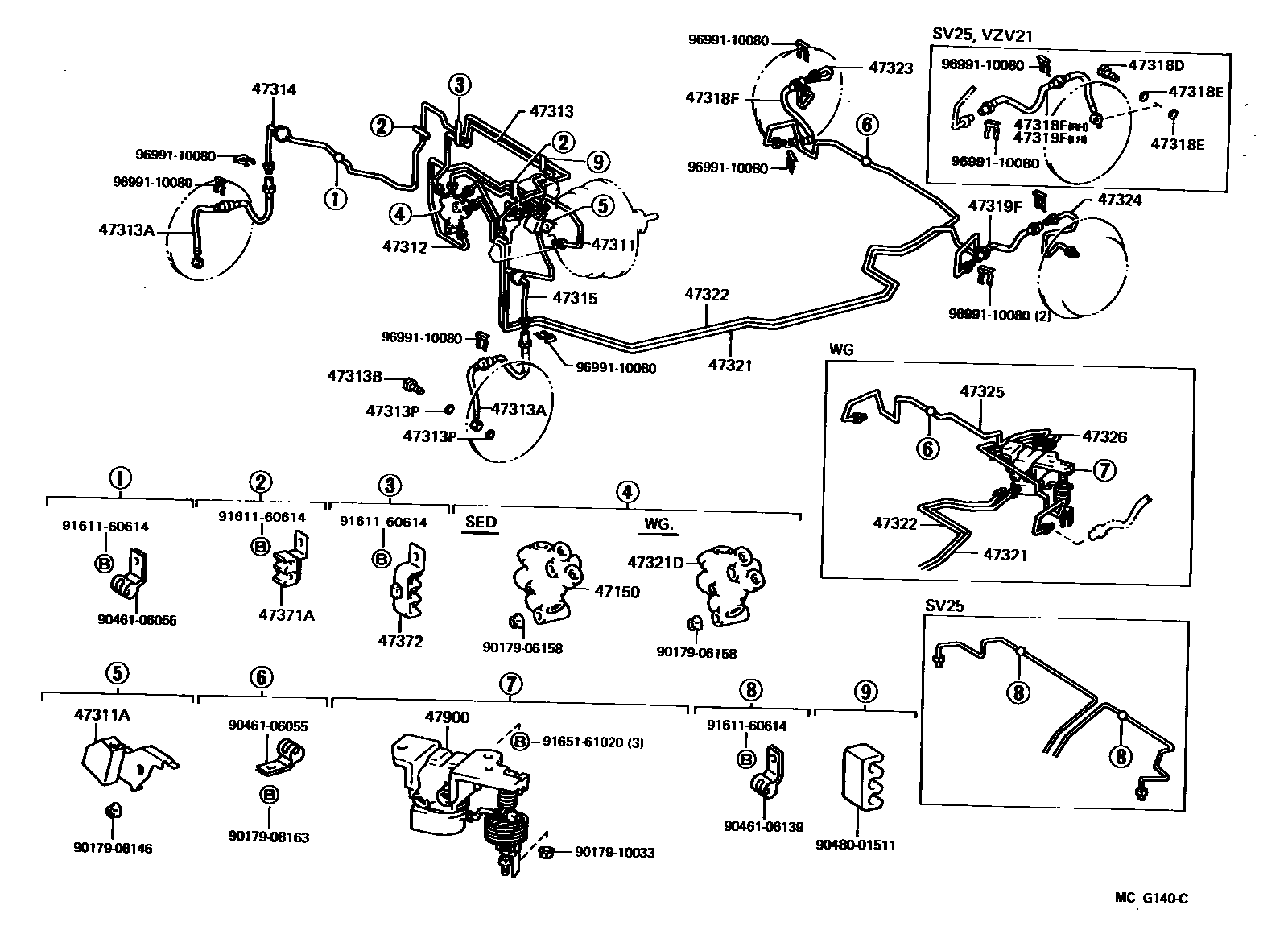

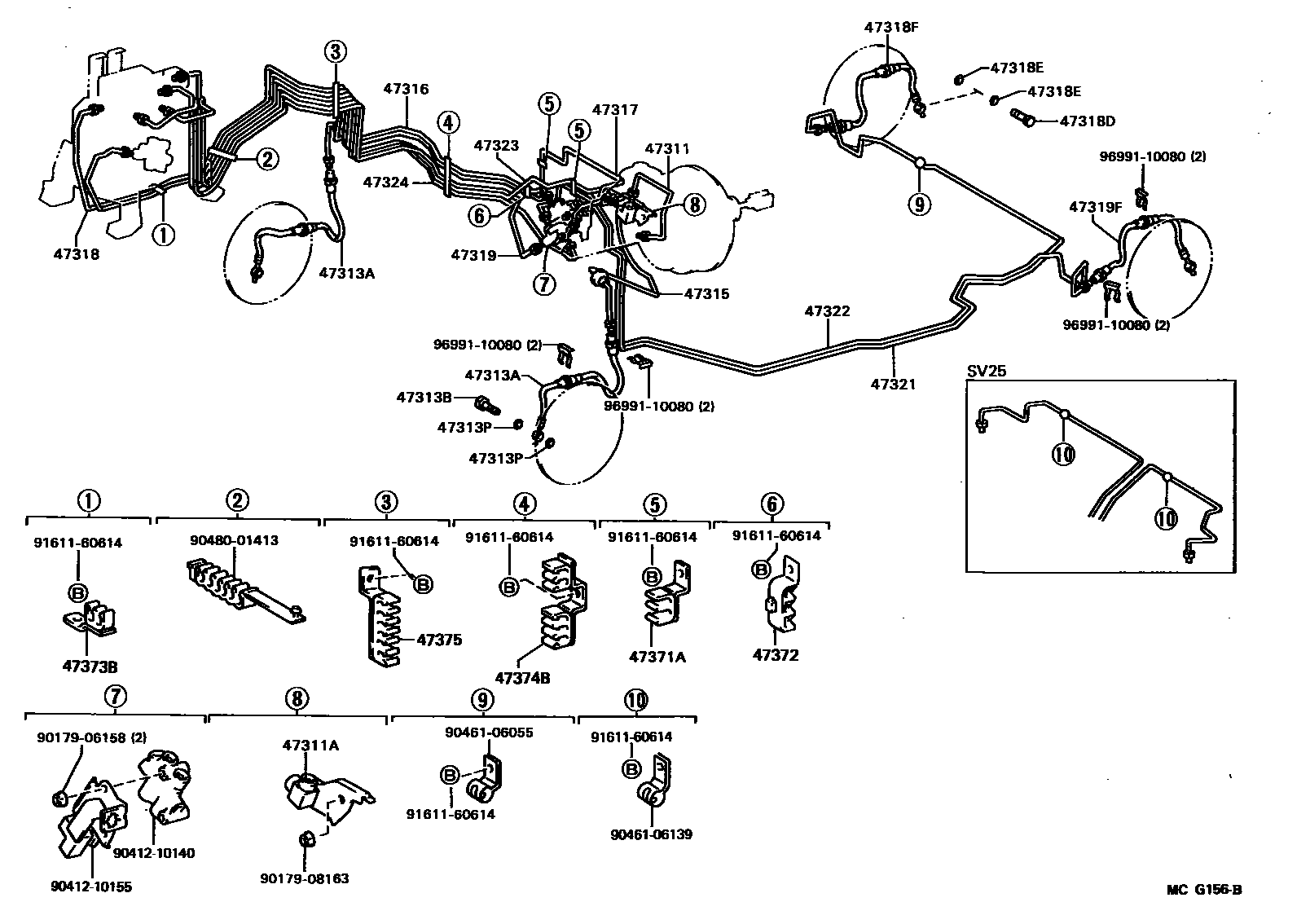

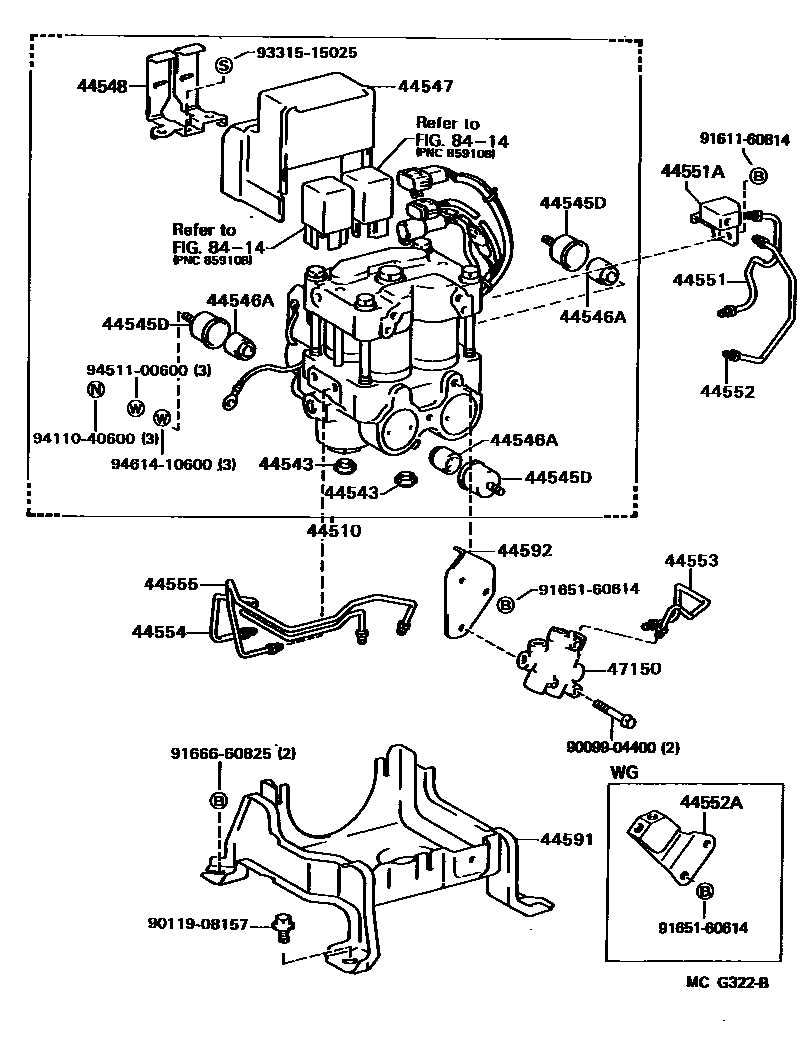

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 3 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44510-32010 |
| 44543 | rubber cap | 44543-14010 |
| 44545D | Brake actuator bolt mount | 44545-14010 |
| 44546A | Brake actuator bolt cushion | 44546-14010 |
| 44547 | Relay box (for brake actuator) | 44547-32010 |
| 44548 | Clamp (for brake actuator) | 44548-32010 |
| 44551 | No. 1 brake actuator pipe | 44551-32010 |
| 44551A | Pipe joint No. 1 (for brake actuator) | 90413-10185 |
| 44552 | No. 2 brake actuator pipe | 44552-32010 · 44556-32010 · 44556-32011 |
| 44552A | Pipe joint No. 2 (for brake actuator) | 90413-10229 |
| 44553 | No. 3 brake actuator tube | 44553-32010 |
| 44554 | No. 4 brake actuator tube | 44554-32010 · 44554-32030 |
| 44555 | No. 5 brake actuator tube | 44555-32010 · 44555-32030 |
| 44591 | No. 1 brake actuator bracket | 44591-32010 |
| 44592 | No. 2 brake actuator bracket | 44592-32010 |
| 47150 | Proportional valve assembly | 47150-12100 · 47150-16050 · 47150-20130 · 47150-20140 · 47150-20160 · 47150-32060 · 47150-32070 |
| 47311 | No. 1 front brake pipe | 47311-32060 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10147 · 90412-10163 · 90413-10165 |
| 47312 | No. 2 front brake pipe | 47312-32101 |
| 47313 | No. 3 front brake pipe | 47313-32090 |
| 47313A | No. 1 front flexible hose | 90947-02496 · 90947-02540 · 90947-02593 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-32091 |
| 47315 | No. 5 front brake pipe | 47315-32070 · 47315-32100 |
| 47316 | No. 6 front brake pipe | 47316-32021 |
| 47317 | No. 7 front brake pipe | 47317-32020 |
| 47318 | No. 8 front brake pipe | 47318-32010 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47318F | Right rear flexible hose | 90947-02497 · 90947-02498 · 90947-02549 |
| 47319 | No. 9 front brake pipe | 47319-32020 |
| 47319F | Left rear flexible hose | 90947-02497 · 90947-02498 · 90947-02549 |
| 47321 | No. 1 rear brake pipe | 47321-32060 · 47321-32100 · 47321-32110 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90413-10205 |
| 47322 | No. 2 rear brake pipe | 47322-32050 · 47322-32090 · 47322-32100 |
| 47323 | No. 3 rear brake pipe | 47323-32050 · 47323-32070 |
| 47324 | No. 4 rear brake pipe | 47324-32050 · 47324-32070 |
| 47325 | No. 5 rear brake pipe | 47325-32030 |
| 47326 | No. 6 rear brake pipe | 47326-32010 |
| 47371A | No. 1 brake pipe clamp | 47371-30010 |
| 47372 | No. 2 brake pipe clamp | 47371-30030 |
| 47373B | No. 3 brake pipe clamp | 47371-32040 |
| 47374B | No. 4 brake pipe clamp | 47371-32050 |
| 47375 | No. 5 brake pipe clamp | 47371-32060 |
| 47900 | Load sensing valve assembly with spring | 47900-32011 · 47900-32021 · 47900-32030 · 47900-32050 |
