Toyota CAMRY Front Drive Shaft — Figure 4302

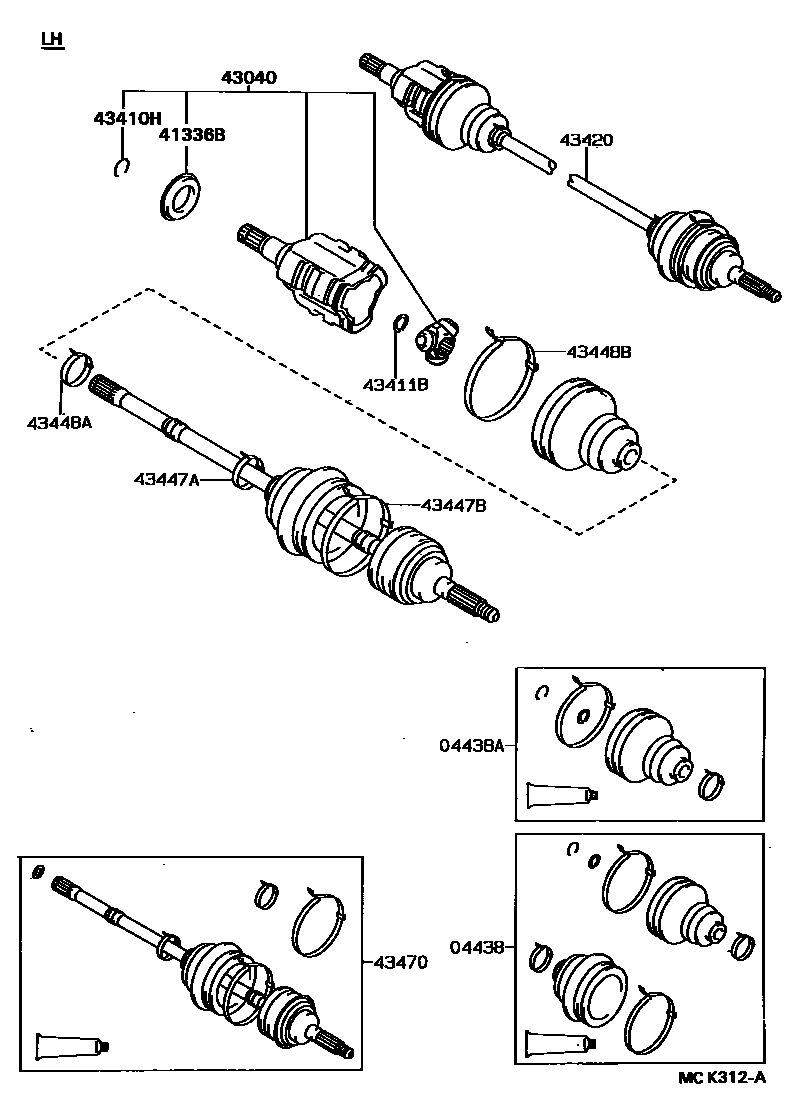

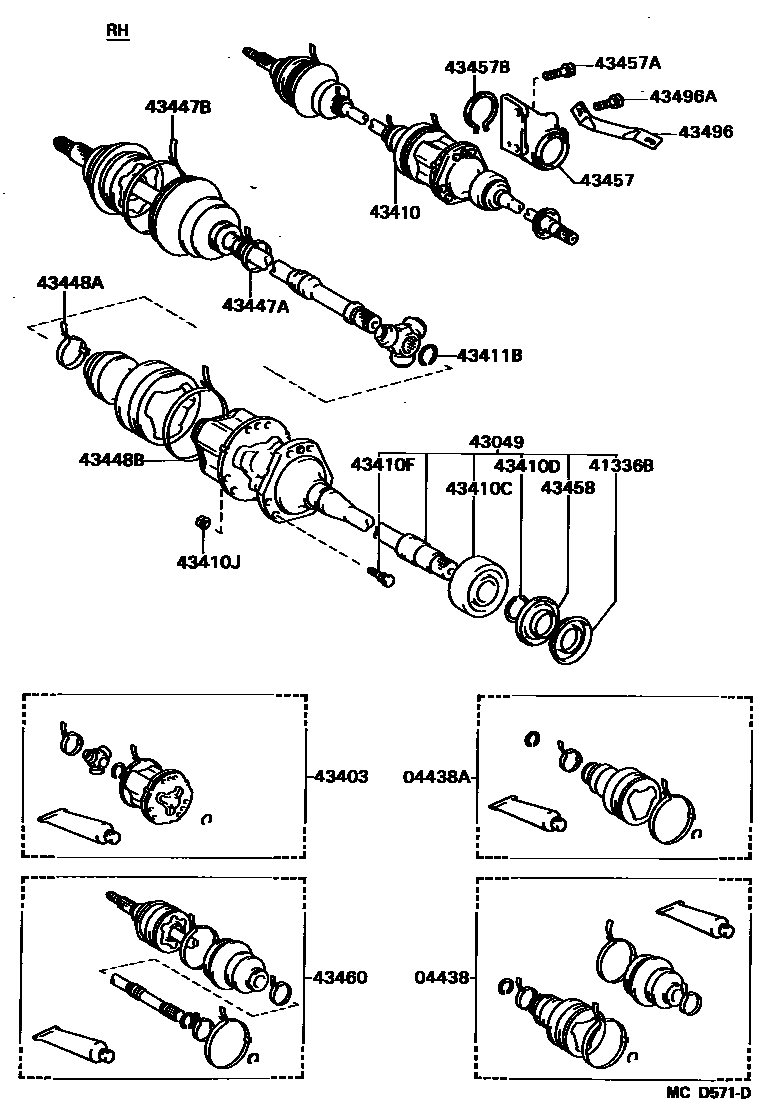

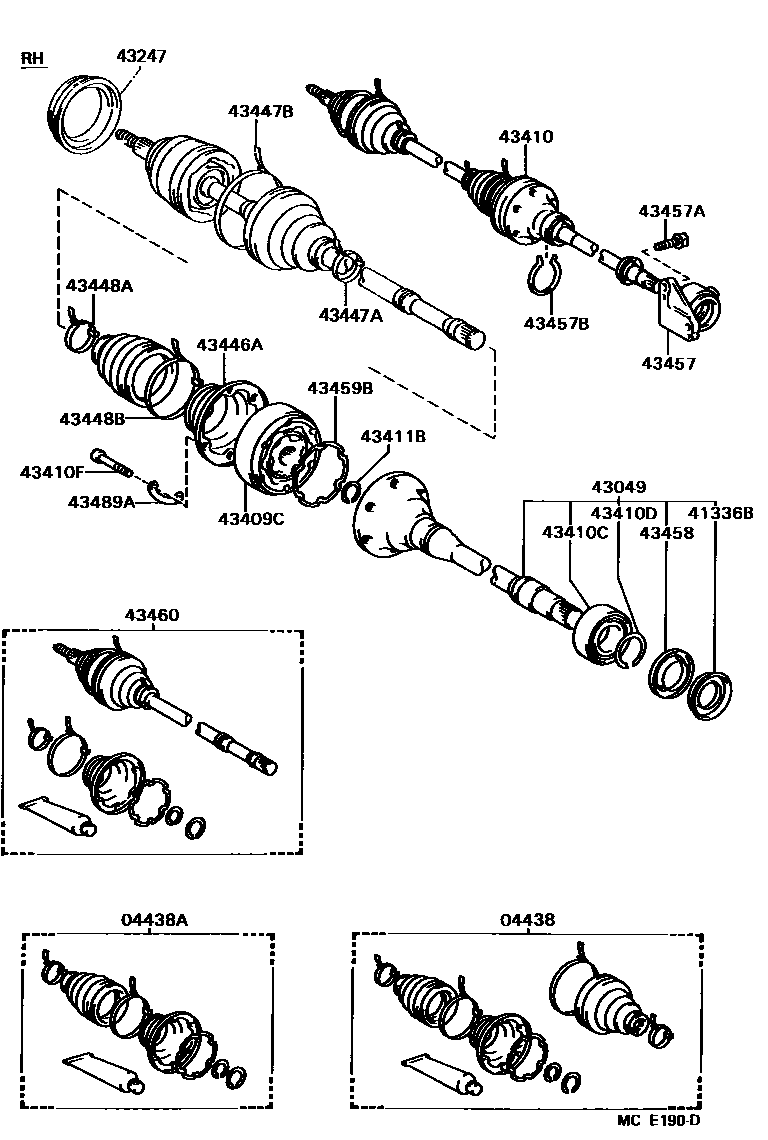

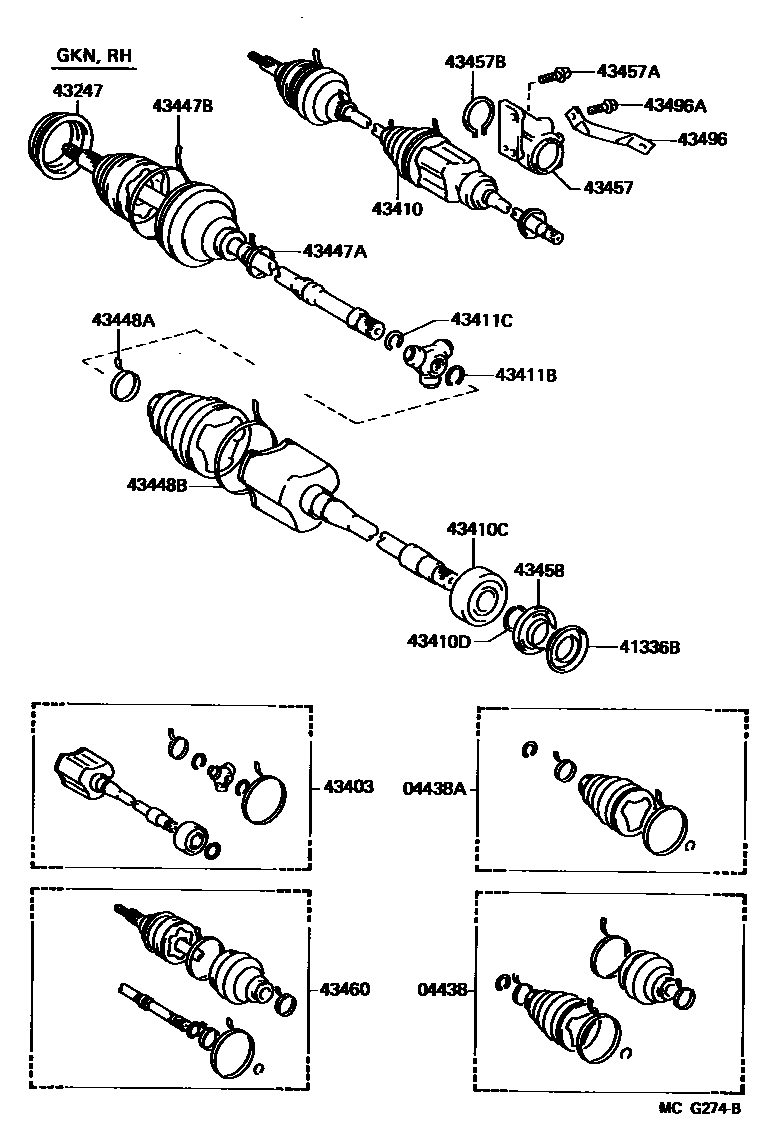

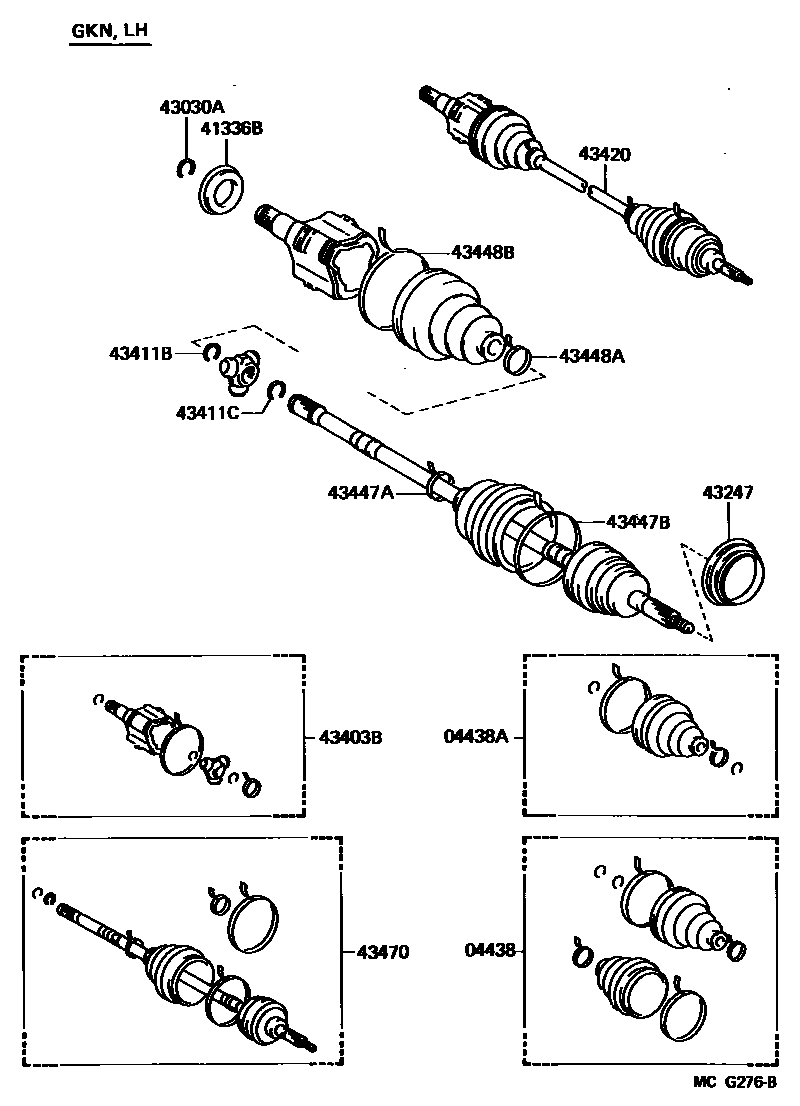

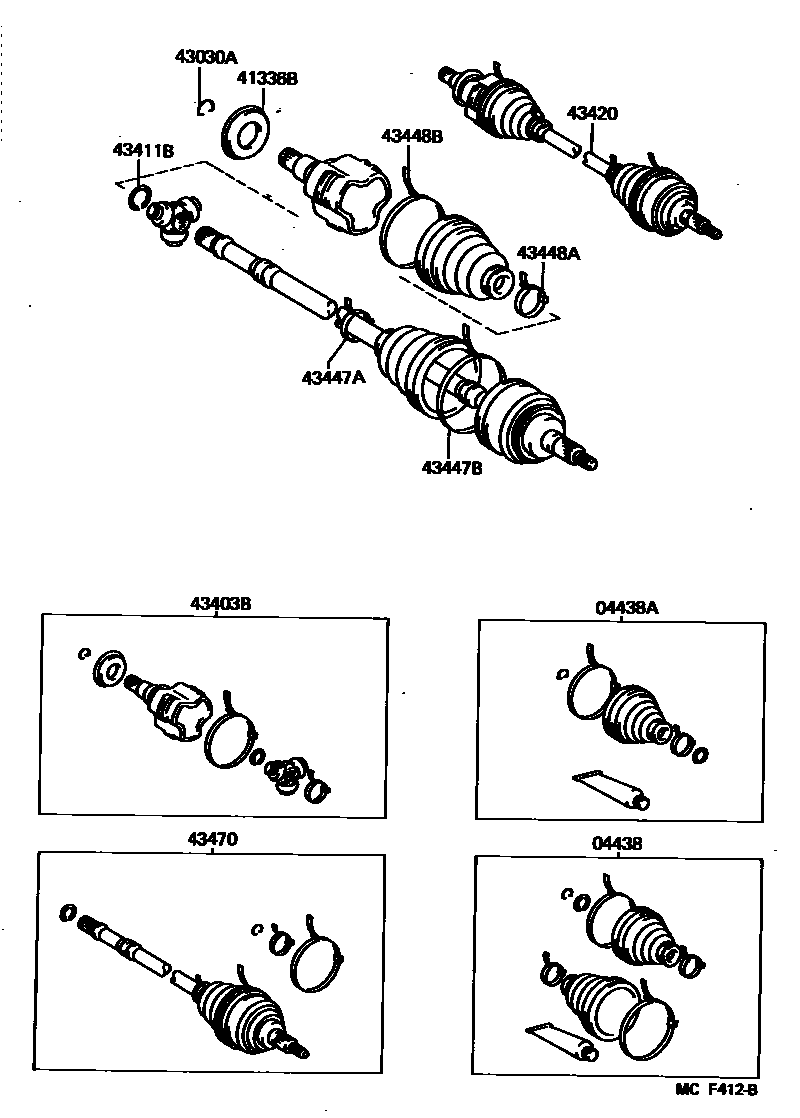

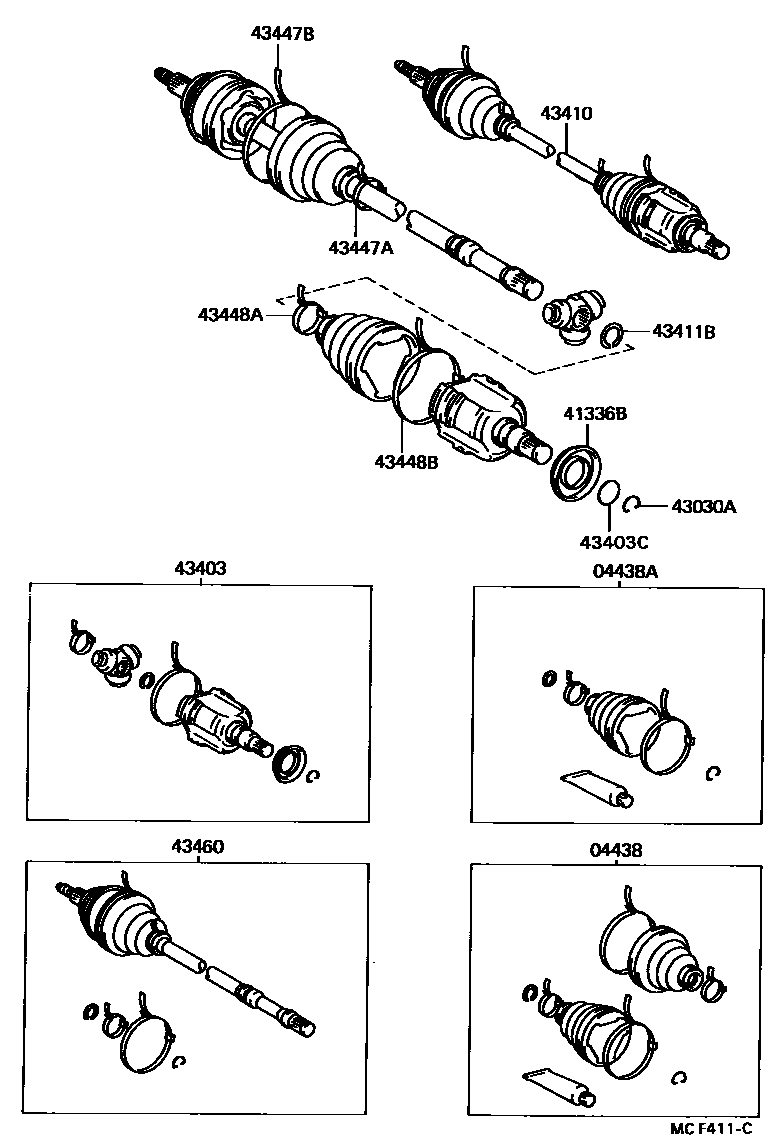

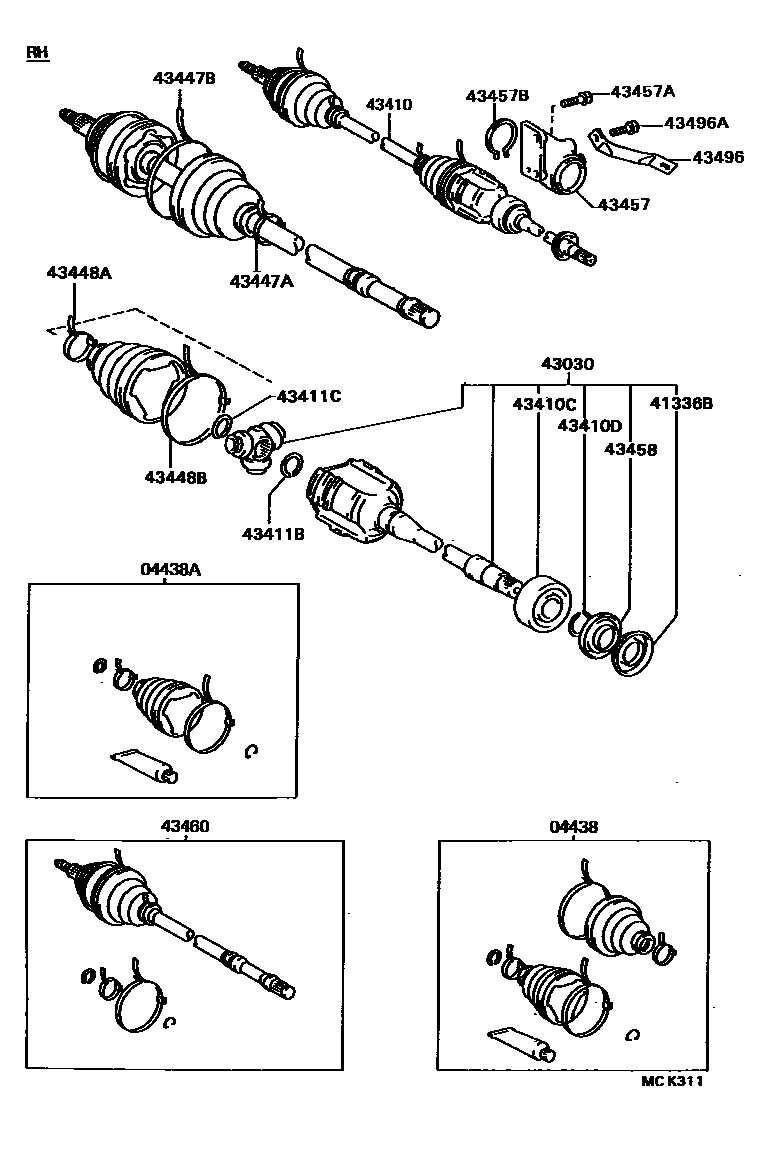

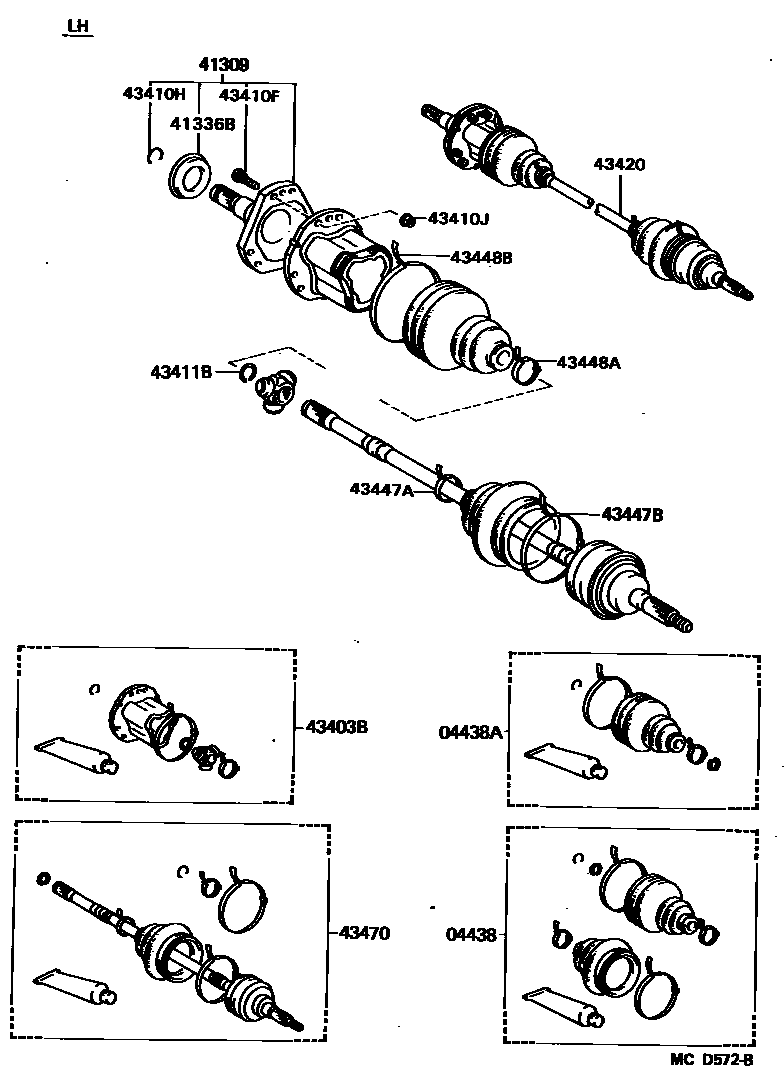

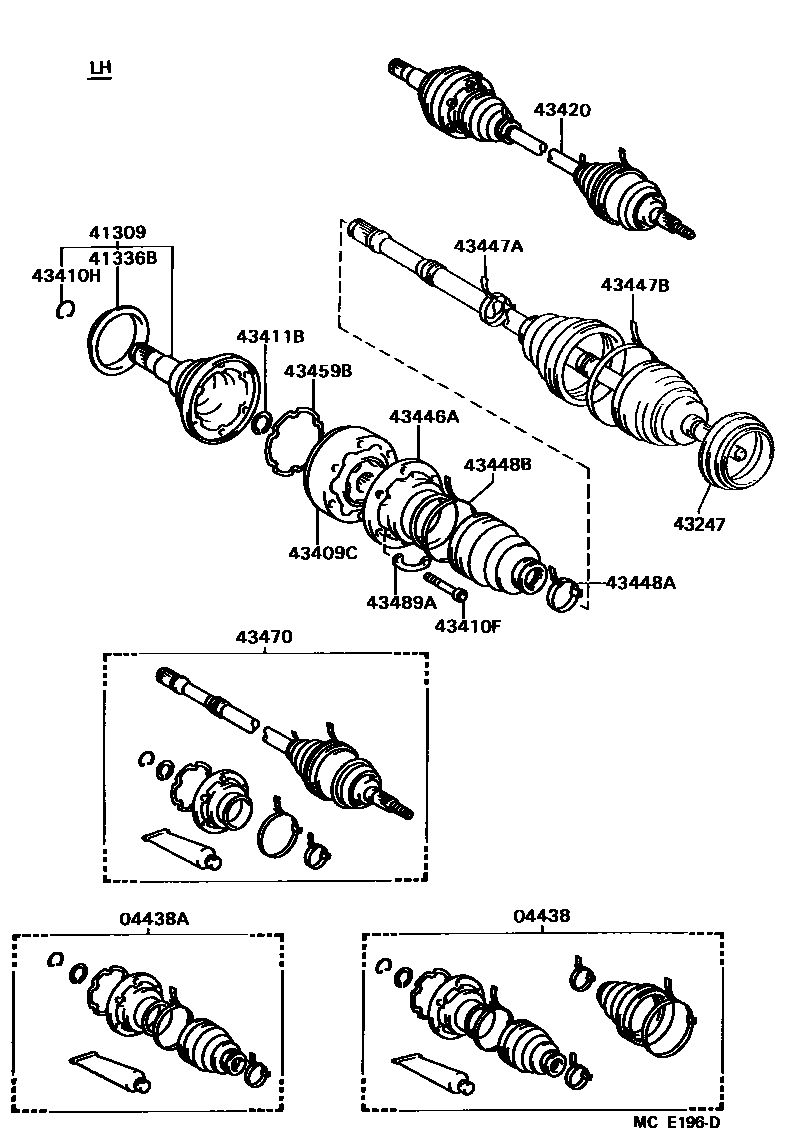

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 10 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438 | Front drive shaft dust boot assembly | 04438-03020 · 04438-12031 · 04438-12140 · 04438-12191 · 04438-12200 · 04438-20070 · 04438-20110 · 04438-32070 · 04438-32100 · 04438-32130 |
| 04438A | Front drive shaft inner universal joint dust boot assembly | 04438-03010 · 04438-12050 · 04438-12150 · 04438-12161 · 04438-12162 · 04438-12210 · 04438-20060 · 04438-32060 |
| 41309 | Left differential side gear shaft sub-assembly | 41309-17030 · 41309-32010 |
| 41336B | Dust cover (for front drive shaft) | 41336-03010 · 41336-03020 · 41336-12020 · 41336-12040 · 41336-17020 · 41336-20011 · 41336-20040 · 41336-32020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-32030 · 43030-32040 |
| 43030A | Hole snap ring (for front drive shaft inboard universal joint) | 90081-52005 · 90521-26004 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-20010 · 43040-20020 |
| 43049 | Front drive flange shaft sub-assembly | 43049-20050 · 43049-32020 · 43049-32030 |
| 43247 | No. 2 front wheel bearing dust cover | 43247-03010 · 43247-32011 |
| 43403 | Right front axle inner universal joint assembly | 43030-09010 · 43403-12050 · 43403-19065 · 43403-39016 |
| 43403B | Left front axle inner universal joint assembly | 43040-09010 · 43403-12060 · 43403-19075 · 43403-39016 |
| 43403C | O-ring (for front drive shaft inboard universal joint) | 90301-26006 |
| 43409C | Front drive shaft cross-slot universal joint sub-assembly | 43409-17010 |
| 43410 | Right front driveshaft assembly | 43410-03010 · 43410-03011 · 43410-32040 · 43410-32090 · 43410-32091 · 43410-32130 · 43410-32140 · 43410-32170 · 43410-32171 · 43410-32180 |
| 43410C | Bearings (for front driveshaft) | 90369-36001 · 90369-41001 |
| 43410D | Shaft snap ring (for front drive shaft) | 90081-52006 · 90520-33008 · 90520-38015 |
| 43410F | Serrated threaded bolt (for front drive shaft) | 90110-10007 · 90114-08006 |
| 43410H | Hole snap ring (for front driveshaft) | 90521-27005 · 90521-33002 |
| 43410J | Nut (for front driveshaft) | 90179-08053 |
| 43411B | Inner shaft snap ring (for front axle inner shaft) | 90081-52004 · 90520-22005 · 90520-26028 · 90520-26048 |
| 43411C | Outer shaft snap ring (for front axle inner shaft) | 90081-52003 · 90520-25037 |
| 43420 | Left front drive shaft assembly | 43420-03010 · 43420-03011 · 43420-20170 · 43420-20171 · 43420-20190 · 43420-32030 · 43420-32070 · 43420-32071 · 43420-32110 · 43420-32120 |
| 43446A | Front axle inner universal joint cover | 43446-17010 |
| 43447A | Clamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle) | 42345-14010 · 90081-46024 · 90949-01559 |
| 43447B | Clamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle) | 90081-46022 · 90081-46024 · 90949-01076 · 90949-01339 · 90949-01473 |
| 43448A | Clamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle) | 42345-14010 · 90081-46024 · 90949-01078 · 90949-01559 |
| 43448B | No. 2 clip (used to fix the universal joint dust cover on the inside of the front axle) | 42345-14020 · 42345-30010 · 90081-46023 · 90949-01076 · 90949-01340 |
| 43457 | drive shaft bearing bracket | 43457-20022 · 43457-32040 · 43457-32050 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10202 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 · 90521-78002 |
| 43458 | Front drive shaft dust cover | 43458-03010 · 43458-12010 · 43458-20011 |
| 43459B | Front driveshaft cross-recessed universal joint gasket | 43459-17010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-09030 · 43470-09031 · 43470-29135 · 43470-29155 · 43470-29156 · 43470-39025 · 43470-39045 · 43470-39046 · 43470-39075 · 43470-39085 · 43470-39086 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09030 · 43470-09031 · 43470-29136 · 43470-29155 · 43470-29156 · 43470-32060 · 43470-39025 · 43470-39045 · 43470-39046 · 43470-39075 · 43470-39085 · 43470-39086 |
| 43489A | Cross recessed universal joint washer | 43489-17010 |
| 43496 | No. 1 front drive shaft bearing bracket stay | 43496-32010 |
| 43496A | Bolt (for driveshaft bearing bracket stay) | 90105-10202 · 90105-10285 |
