Toyota CAMRY 前桥壳和差速器 — Figure 4301

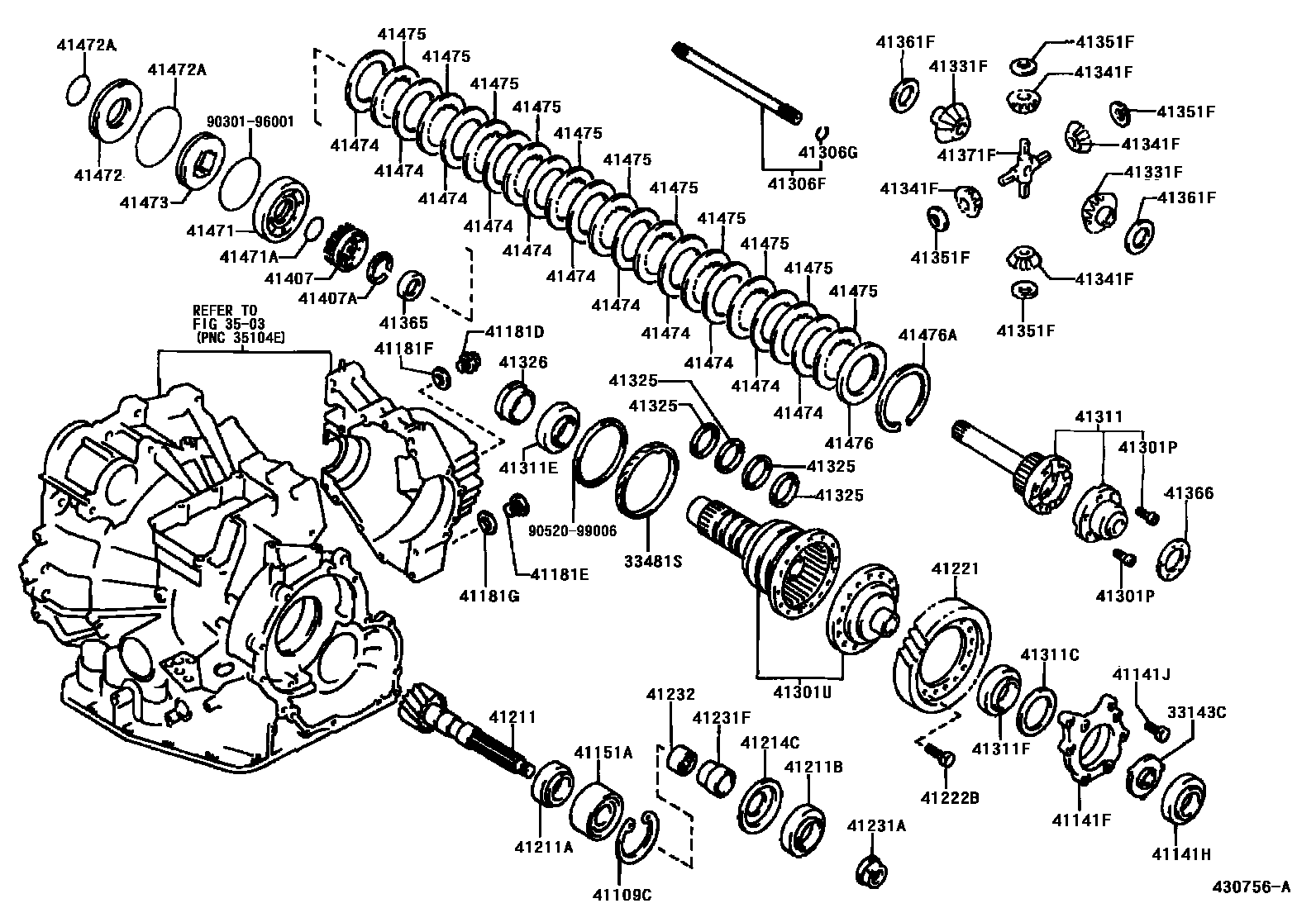

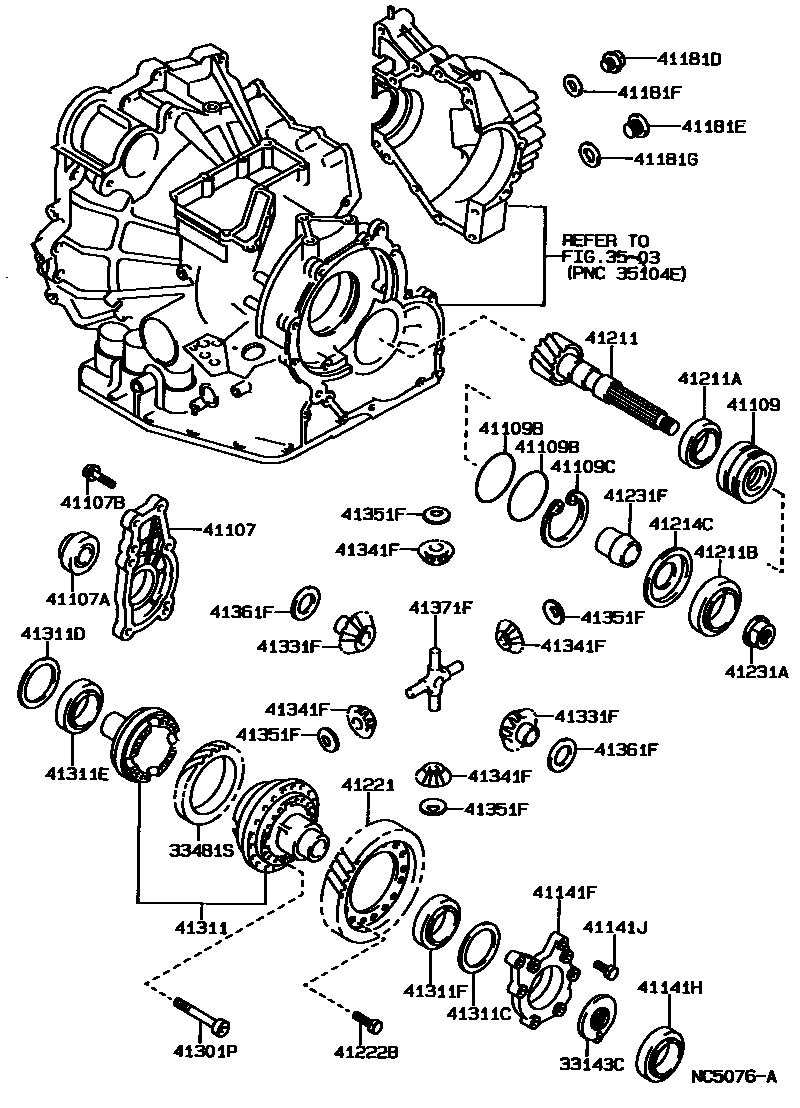

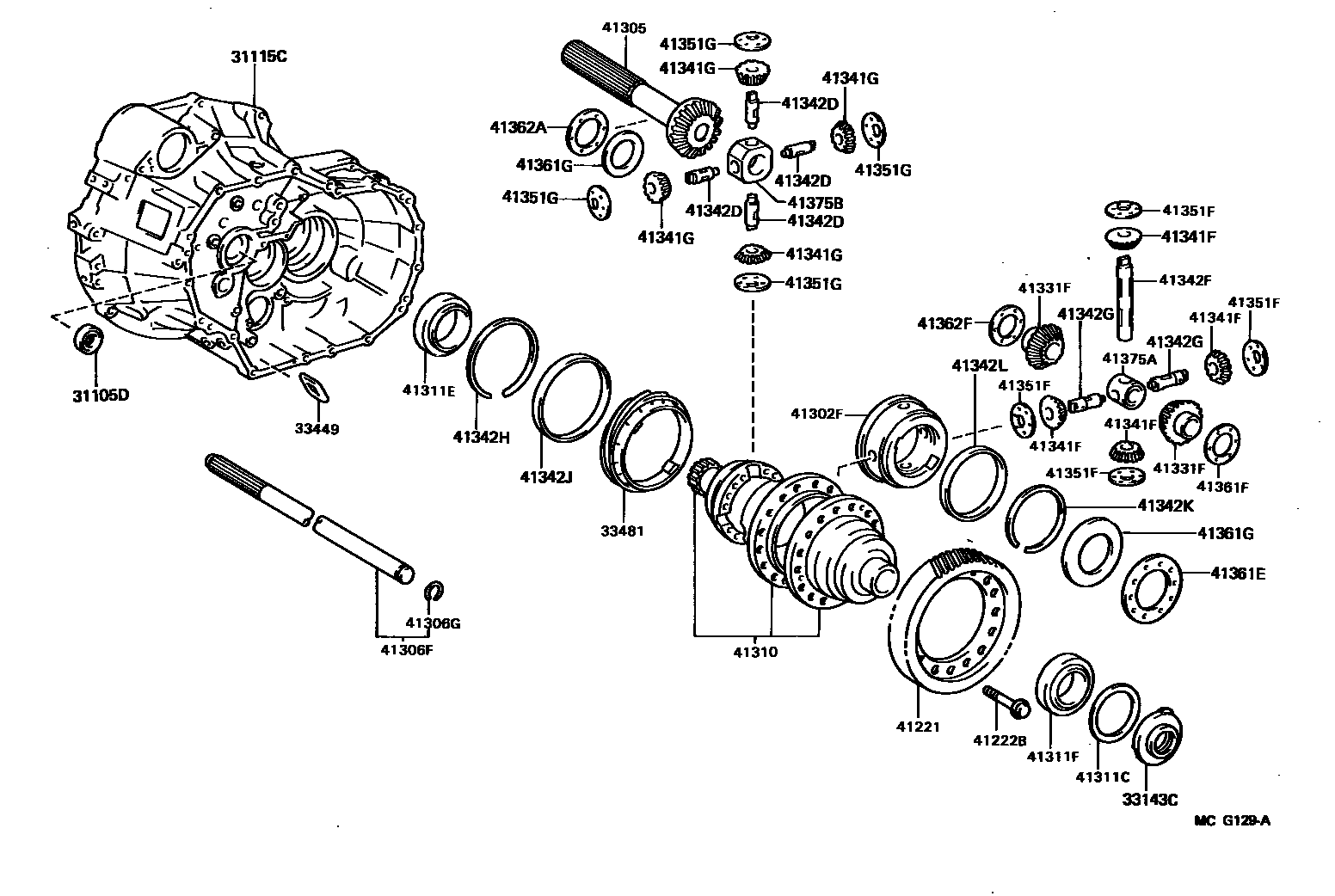

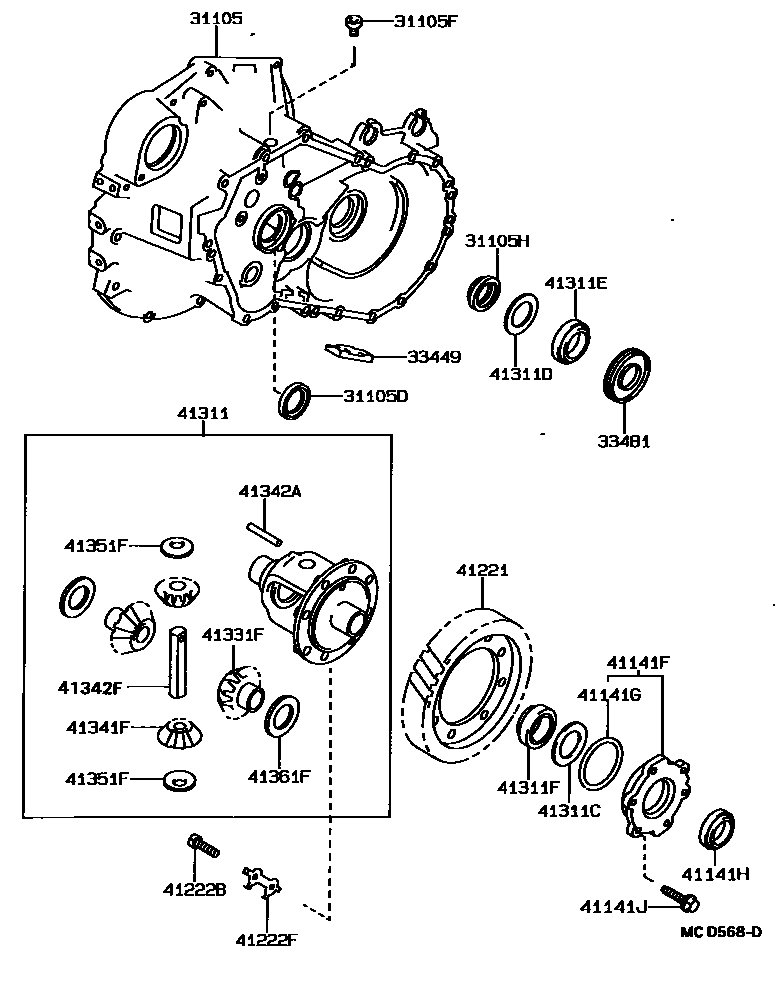

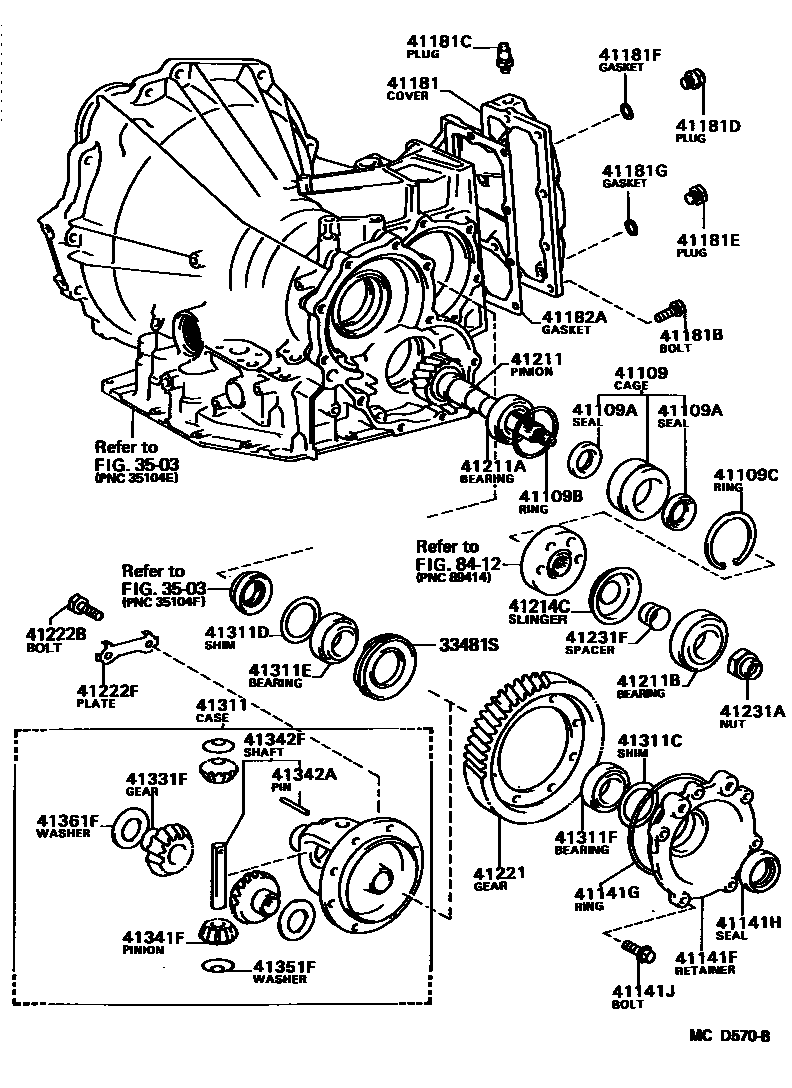

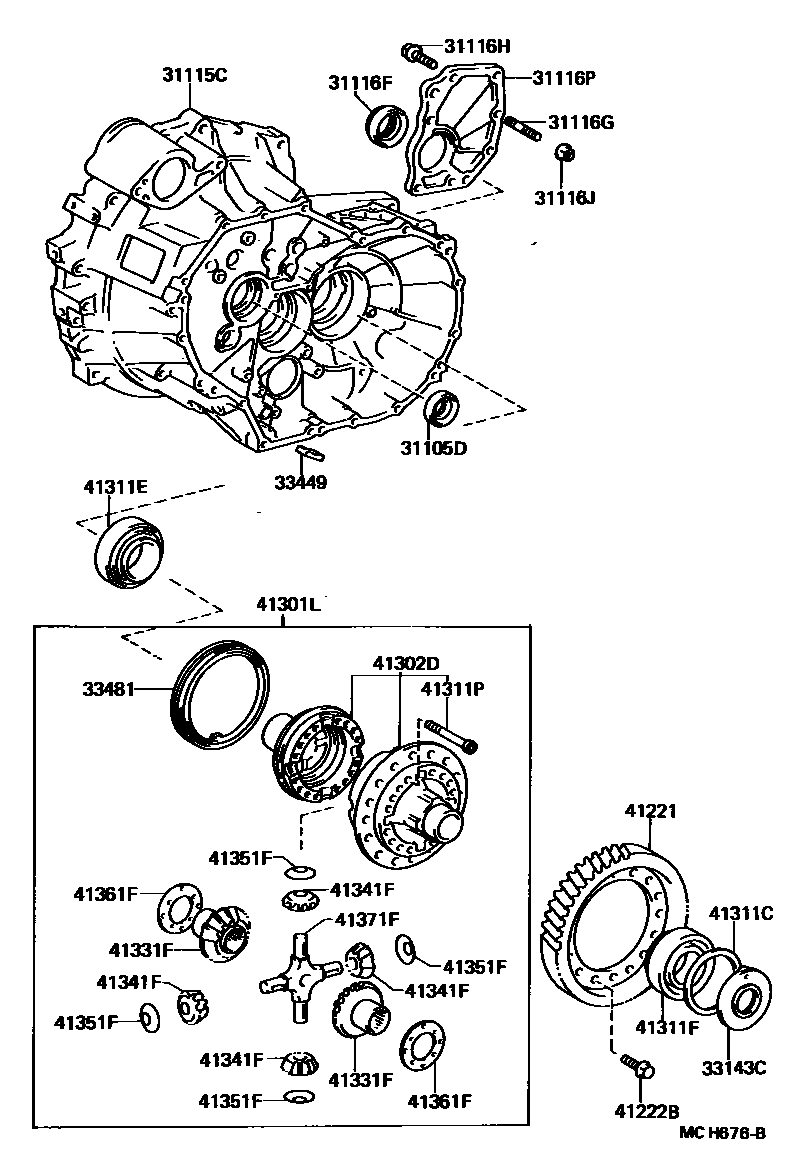

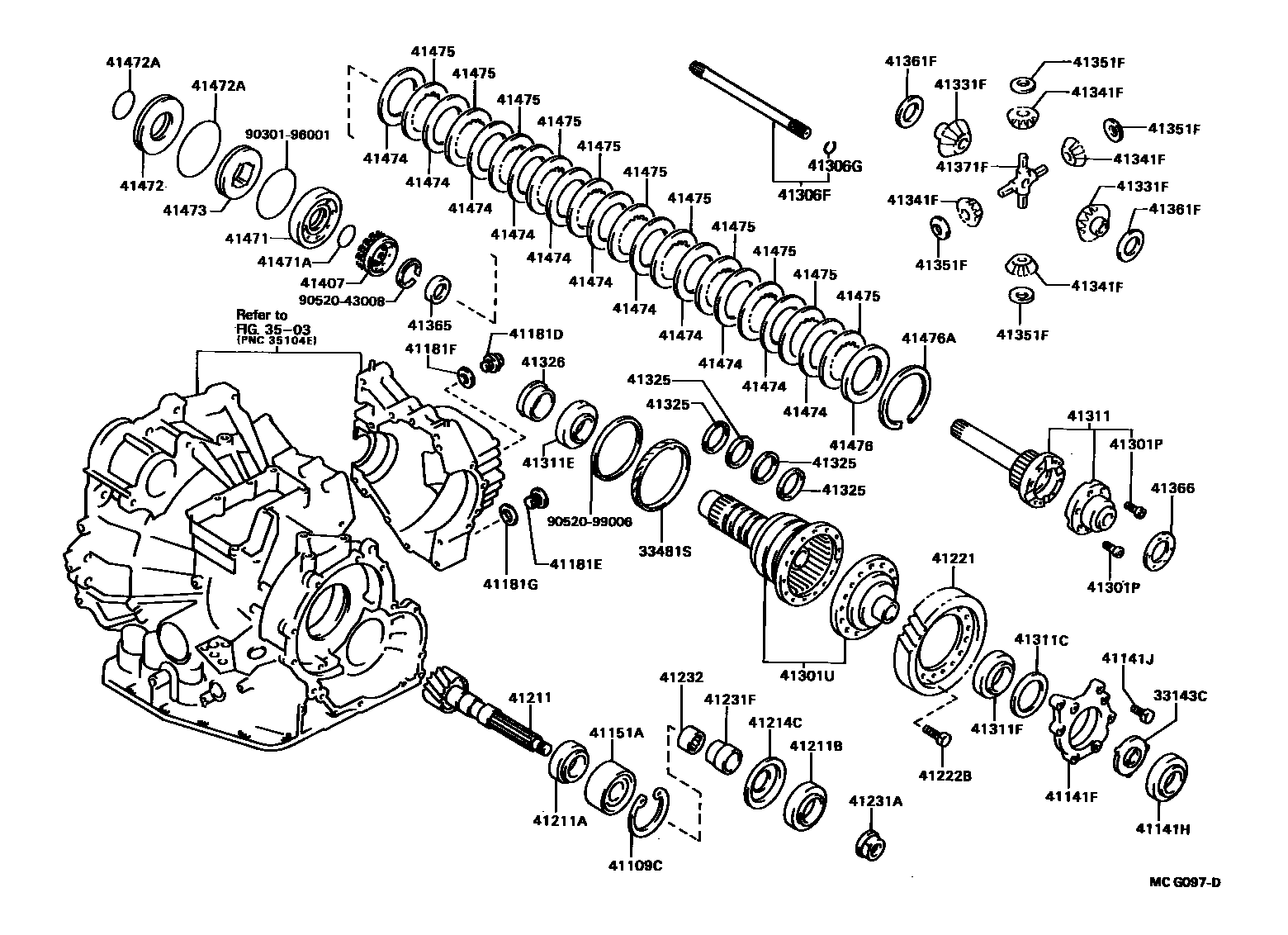

Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 7 images and 95 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-32020 · 31105-32060 · 31105-32061 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-30002 · 90311-30006 |
| 31105F | Screw plug (for transaxle housing) | 90341-10065 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-35014 · 90311-35026 |
| 31115C | Front transmission axle housing (MTM) | 31115-20013 · 31115-20014 · 31115-20020 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-40004 |
| 31116G | Stud bolts (for front transaxle housing cover) | 90116-12019 |
| 31116H | Bolts (for front transaxle housing cover) | 90105-12135 |
| 31116J | Nut (for transaxle housing cover) | 90179-12068 |
| 31116P | Transmission axle housing cover | 31116-17010 |
| 33143C | Front differential oil baffle | 33143-12010 · 33143-20040 · 33143-32010 |
| 33449 | derailleur magnet | 33449-20010 · 33449-32010 |
| 33481 | Speedometer driving gear (MTM) | 33481-12080 · 33481-17010 · 33481-17011 · 33481-32020 · 33481-32030 · 33481-32070 |
| 33481S | Speedometer driving gear (ATM) | 33481-32020 · 33481-32040 · 33481-32050 |
| 41107 | Front differential oil seal race sub-assembly | 41107-32010 |
| 41107A | Oil seal (for front differential oil seal race) | 90311-40010 |
| 41107B | Bolt (for front differential oil seal race) | 90105-08155 |
| 41109 | Differential driving pinion bearing cover sub-assembly | 41109-20010 · 41109-20011 · 41109-32020 · 41109-32030 |
| 41109A | Oil seal (for differential drive pinion bearing housing) | 90310-34005 |
| 41109B | O-ring (for differential drive pinion bearing housing) | 90301-65003 · 90301-69003 |
| 41109C | Hole snap ring (for differential drive pinion bearing housing) | 90521-76002 · 90521-79007 · 90521-79008 |
| 41141F | Front differential side bearing retainer | 41101-32010 · 41101-32020 · 41101-32030 · 41141-32041 |
| 41141G | O-ring (for front differential side bearing retainer) | 90301-63004 · 90301-99018 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-35014 · 90311-35019 · 90311-35026 · 90311-44003 · 90311-50011 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-08061 · 90105-08155 · 91611-60825 |
| 41151A | Differential drive pinion tapered bearing housing | 41151-32030 · 41151-32031 |
| 41181 | front differential case cover | 41181-32011 · 41181-32012 |
| 41181B | Bolts (for securing front differential case cover) | 90105-08062 |
| 41181C | Breather plug (for front differential case cover) | 90930-03031 |
| 41181D | Plug (for front differential oil fill port) | 90341-18002 · 90341-18038 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181F | Gasket (for front differential oil plug) | 90430-18008 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41182A | Differential case cover gasket | 41182-32010 |
| 41211 | Differential drive pinion | 41211-32020 · 41211-32060 · 41211-32061 · 41211-32070 · 41211-32071 · 41211-32100 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-35050 · 90366-36002 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-40010 · 90366-40051 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-32010 · 41214-32020 |
| 41221 | Front differential ring gear | 41221-12240 · 41221-12260 · 41221-32030 · 41221-32060 · 41221-32070 · 41221-32080 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-12150 · 90105-12154 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41231A | Drive pinion lock nut | 90179-20004 · 90179-24006 |
| 41231F | Front differential drive pinion bearing spacer | 41231-32010 · 41231-32020 |
| 41232 | No. 2 driving pinion bearing spacer | 41232-32010 · 41232-32011 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-12070 |
| 41301P | Screw (for front differential case) | 90149-10004 · 90149-80017 |
| 41301U | Front differential ring gear mounting housing sub-assembly | 41301-32040 |
| 41302D | No. 2 front differential housing sub-assembly | 41302-17012 · 41302-17013 |
| 41302F | Front differential housing sub-assembly | 41302-12020 · 41302-12030 |
| 41305 | Differential side gear sub-assembly | 41305-32010 · 41305-32020 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-32010 |
| 41306G | Hole snap ring (for differential side gear countershaft) | 90521-26004 |
| 41310 | Differential case assembly | 41310-32010 · 41310-32020 |
| 41311 | front differential case | 41301-32010 · 41301-32021 · 41301-32022 · 41301-32023 · 41301-32060 · 41302-32020 · 41302-32030 |
| 41311C | Rear gasket (for front differential case) | 90564-45001 · 90564-45002 · 90564-45003 · 90564-45004 · 90564-45005 · 90564-45006 · 90564-45007 · 90564-45008 · 90564-45009 · 90564-45010 · 90564-45011 · 90564-45012 · 90564-45013 · 90564-45014 · 90564-45015 · 90564-45016 · 90564-45017 · 90564-45018 · 90564-45019 · 90564-76001 · 90564-76002 · 90564-76003 · 90564-76004 · 90564-76005 · 90564-76006 · 90564-76007 · 90564-76008 · 90564-76009 · 90564-76010 · 90564-76011 · 90564-76012 · 90564-76013 · 90564-76014 · 90564-76015 · 90564-76016 · 90564-76017 · 90564-76018 |
| 41311D | Front gasket (for front differential case) | 90564-45011 · 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 · 90564-80001 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-40016 · 90366-57001 · 90366-57020 · 90366-67004 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40023 · 90366-44001 · 90366-50014 · 90366-50030 · 90366-55034 |
| 41311P | Bolt (for front differential case) | 90149-10003 |
| 41325 | Front differential ring gear mounting housing oil seal ring | 41325-12010 |
| 41326 | Ring gear mounting shell sleeve | 41326-32010 |
| 41331F | Front differential side gear | 41331-12030 · 41331-17010 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-20011 · 41341-20020 · 41341-30011 |
| 41341G | Center differential planetary gear | 41341-12040 · 41341-20020 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342D | Center differential planetary gear shaft | 41342-12030 · 41342-12120 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-12040 · 41342-20050 · 41342-32010 |
| 41342G | No. 2 front differential planetary gear shaft | 41342-12050 |
| 41342H | Shaft snap ring (for center differential planetary gear shaft) | 90520-99002 · 90520-99007 |
| 41342J | Spacer (for center differential planetary gear shaft) | 90560-99001 · 90560-99002 |
| 41342K | Shaft snap ring (for front differential planetary gear shaft) | 90520-94001 |
| 41342L | Spacer (for differential planetary gear shaft) | 90560-97001 |
| 41351F | Front differential planetary gear thrust washer | 41351-12010 · 41351-20010 · 41351-32010 · 41351-32020 · 41351-32030 |
| 41351G | Center differential planetary gear thrust washer | 41351-12060 · 41351-20010 |
| 41361E | No. 1 center differential side gear thrust washer | 41362-20020 · 41362-20030 · 41362-20040 · 41362-20050 · 41362-20060 · 41362-20070 · 41362-20080 · 41362-20090 · 41362-20100 · 41362-20110 · 41362-20120 · 41362-20130 · 41362-20140 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-12330 · 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 · 41361-12400 · 41361-12410 · 41361-12420 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41362-17010 · 41362-17020 · 41362-17030 · 41362-17040 · 41362-17050 · 41362-17060 · 41362-17070 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-36001 · 90208-41001 |
| 41362A | No. 2 center differential side gear thrust washer | 41362-20150 · 41362-20160 · 41362-20170 · 41362-20180 · 41362-20190 · 41362-20200 · 41362-20210 · 41362-20220 · 41362-20230 · 41362-20240 · 41362-20250 · 41362-20260 · 41362-20270 |
| 41362F | No. 2 front differential side gear thrust washer | 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 |
| 41365 | No. 1 front differential side gear thrust washer | 41365-12010 |
| 41366 | No. 2 front differential side gear thrust washer | 41366-12010 |
| 41371F | Front differential cross shaft | 41371-17010 · 41371-32010 · 41371-32020 |
| 41375A | Front differential planetary gear shaft support | 41375-12020 |
| 41375B | Center differential planetary gear shaft support | 41375-12010 · 41375-12050 |
| 41407 | Differential lock piston return spring sub-assembly | 41407-32010 |
| 41407A | Shaft snap ring (for differential lock piston return spring) | 90520-43008 |
| 41471 | No. 1 differential lock clutch piston | 41471-32010 |
| 41471A | O-ring (for No. 1 differential lock clutch piston) | 90301-46002 |
| 41472 | No. 2 differential lock clutch piston | 41472-32010 |
| 41472A | O-ring (for No. 2 differential lock clutch piston) | 90301-59004 · 90301-99055 |
| 41473 | Differential lock clutch piston reaction sleeve | 41473-32010 |
| 41474 | Differential lock clutch plate | 41474-32011 |
| 41475 | Differential lock clutch disc | 41475-32010 · 41475-32020 |
| 41476 | Differential lock clutch flange | 41476-32011 |
| 41476A | Hole snap ring (for differential lock clutch flange) | 90521-99061 |
