Toyota CAMRY 后桥半轴和后桥轮毂 — Figure 4102

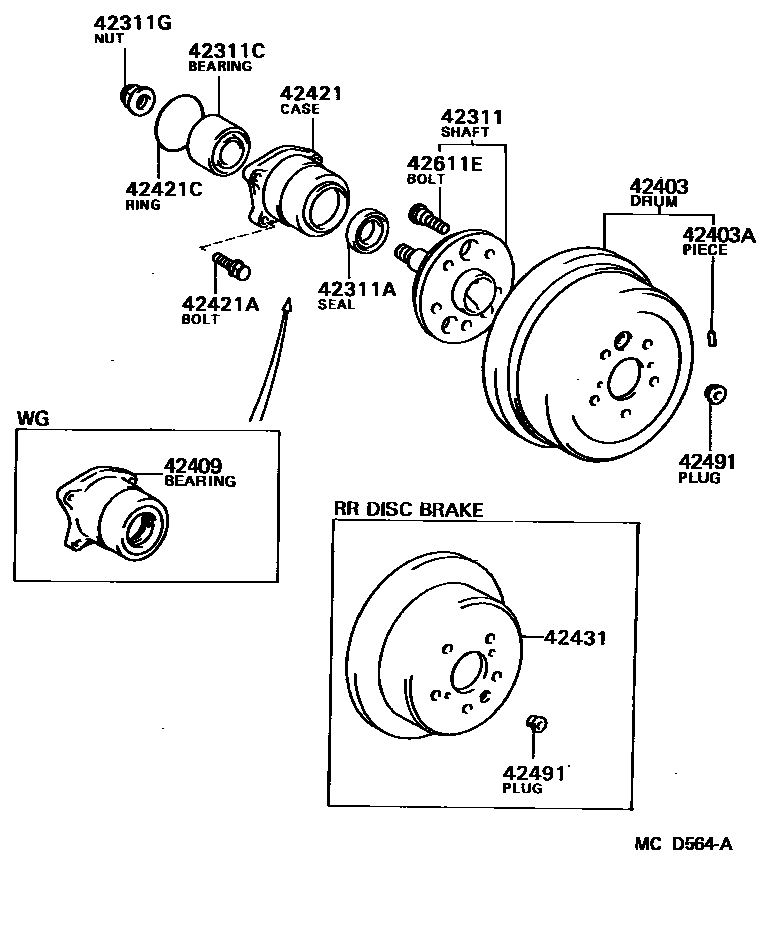

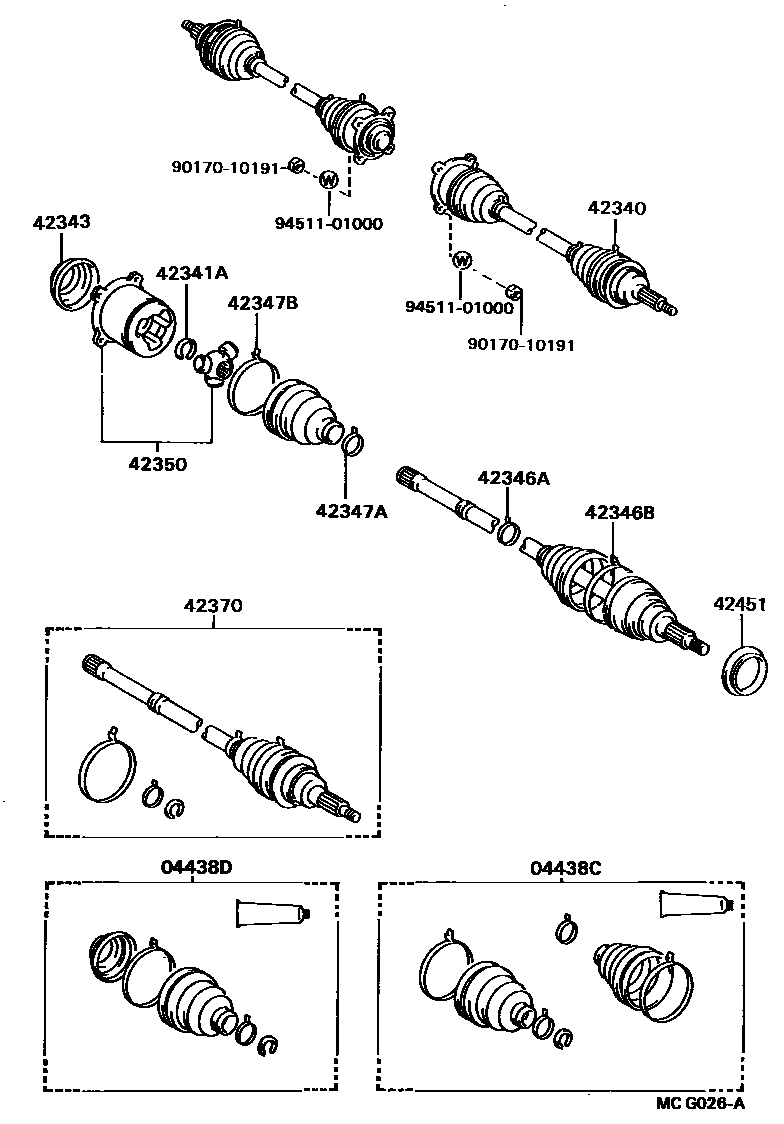

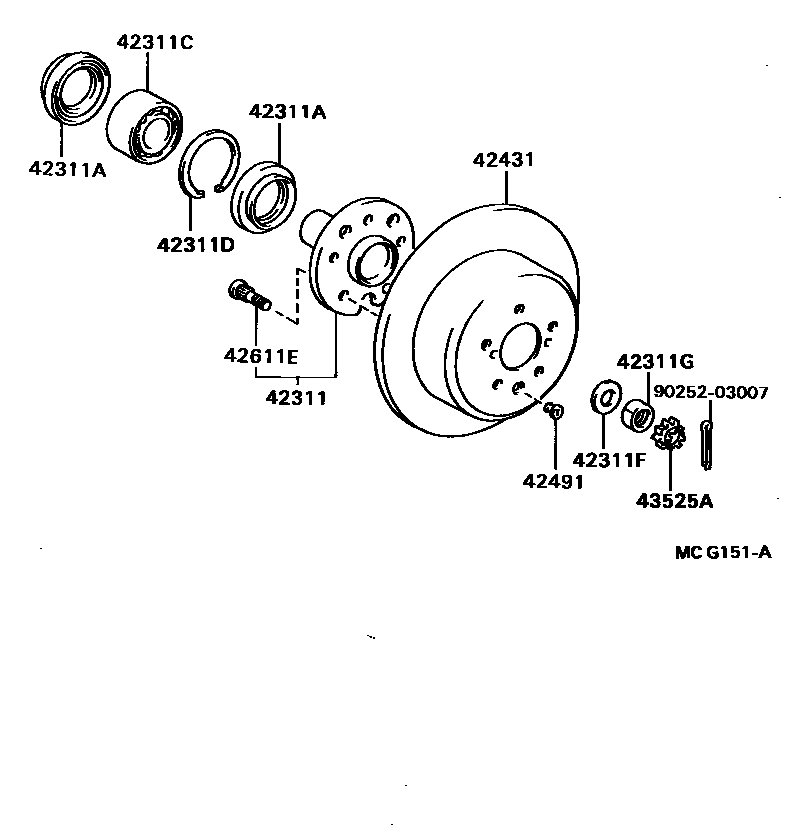

Toyota CAMRY EPC diagram 4102, 后桥半轴和后桥轮毂, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438C | Rear drive shaft dust boot assembly | 04437-32010 |
| 04438D | Rear drive shaft inner universal joint dust boot assembly | 04437-14020 |
| 42311 | Rear axle half shaft | 42301-20070 · 42301-32020 · 42301-32031 |
| 42311A | Oil seal (for rear axle half shaft) | 90311-42018 · 90311-52005 · 90311-56007 |
| 42311C | Bearings (for rear axle half shaft) | 90369-30044 · 90369-38003 |
| 42311D | Snap ring (for rear axle half shaft) | 90521-79002 |
| 42311F | Flat washer (for rear axle half shaft) | 90201-20012 |
| 42311G | Nut (for rear axle half shaft) | 90170-19001 · 90179-20003 · 90179-20017 · 90179-22020 |
| 42340 | Rear drive shaft assembly | 42340-32011 · 42340-32020 |
| 42341A | Snap ring (for rear driveshaft) | 90520-23024 |
| 42343 | Outer universal joint end cover | 42343-14010 |
| 42346A | Clamp (for rear drive shaft outer universal joint dust cover) | 42345-14010 |
| 42346B | Clamp No. 2 (for the universal joint dust cover on the outside of the rear drive shaft) | 90949-01076 |
| 42347A | Clamp (for rear drive shaft inner universal joint dust cover) | 42345-14010 |
| 42347B | Clamp No. 2 (for the universal joint dust cover on the inside of the rear drive shaft) | 42345-14020 |
| 42350 | Rear drive shaft outer universal joint assembly | 42350-14010 |
| 42370 | Rear drive shaft outer universal joint assembly | 42370-39016 · 42370-39017 · 42370-39025 · 42370-39026 |
| 42403 | Rear brake drum sub-assembly | 42431-32030 |
| 42403A | Balance weight (for rear brake drum) | 90937-01287 · 90937-01288 · 90937-01289 |
| 42409 | Rear axle bearing sub-assembly | 42409-32010 |
| 42421 | Rear axle bearing housing | 42421-20020 |
| 42421A | Bolt (for rear axle bearing housing) | 90105-10124 · 90105-10309 |
| 42421C | O-ring (for rear axle bearing housing) | 90301-63003 |
| 42431 | rear brake disc | 42431-20090 · 42431-20100 |
| 42451 | No. 1 rear wheel bearing dust cover | 42451-20010 · 42451-20020 |
| 42491 | Brake shoe adjustment hole plug (for parking brake) | 47491-14010 · 47491-22020 |
| 42611E | Hub bolts (for rear axle) | 90942-02047 |
| 43525A | Rear wheel adjustment lock cover | 43525-20020 · 43525-20040 |
