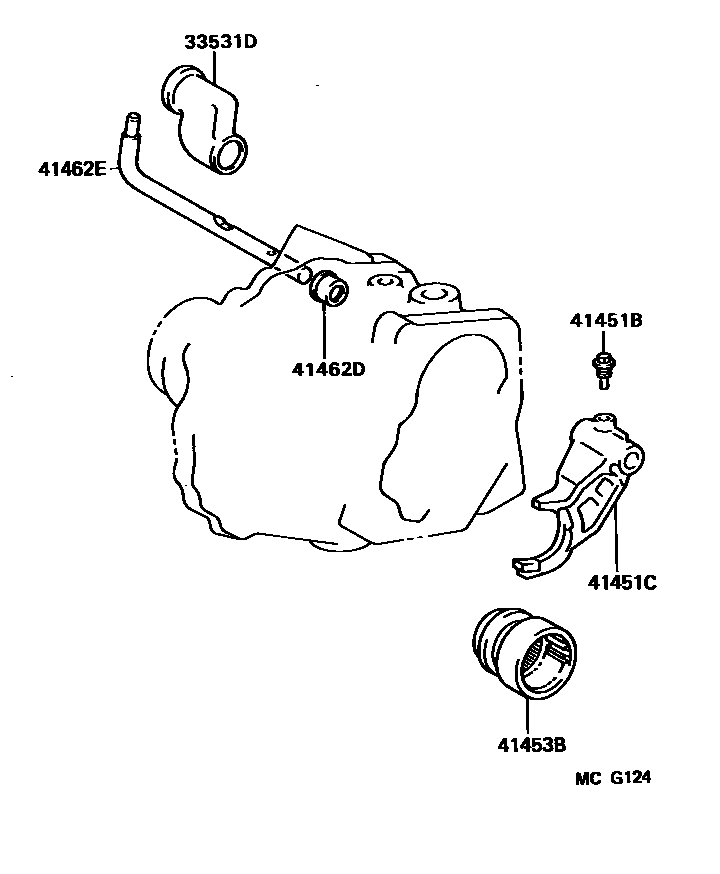

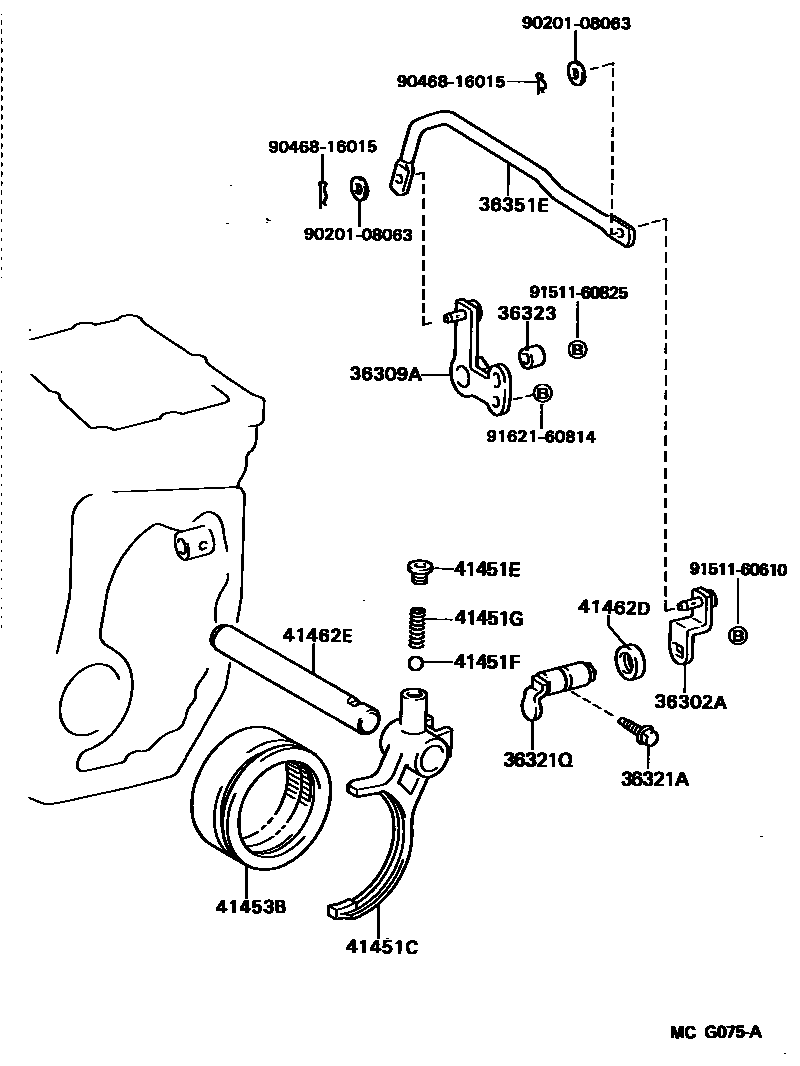

Toyota CAMRY Transfer Lever & Shift Fork Shaft — Figure 3611
Toyota CAMRY EPC diagram 3611, Transfer Lever & Shift Fork Shaft, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33531D | Dust boot (for differential lock shift fork shaft) | 33531-12010 |
| 36302A | No. 1 transfer case shift lever sub-assembly | 36302-32010 |
| 36309A | Transfer case external shift lever sub-assembly | 36309-32010 |
| 36321A | Bolt (for transfer case shift lever) | 90105-05020 |
| 36321Q | Transfer case shift lever | 36321-32010 |
| 36323 | Transfer case shift lever guide plate | 36323-32010 |
| 36351E | Transfer case shift lever | 36351-32010 |
| 41451B | Bolt (for differential lock shift fork) | 90105-06094 |
| 41451C | Differential lock shift fork | 41451-12010 · 41451-32010 |
| 41451E | Plug (for differential lock shift fork) | 90341-10010 |
| 41451F | Steel ball (for differential lock shift fork) | 90360-08009 |
| 41451G | Compression spring (for differential lock shift fork) | 90501-14110 |
| 41453B | Differential lock sleeve | 41453-12010 · 41453-12030 |
| 41462D | Oil seal (for differential lock shift fork shaft) | 90311-14007 · 90311-14009 |
| 41462E | Differential lock shift fork shaft | 41462-12010 · 41462-32010 |
