Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

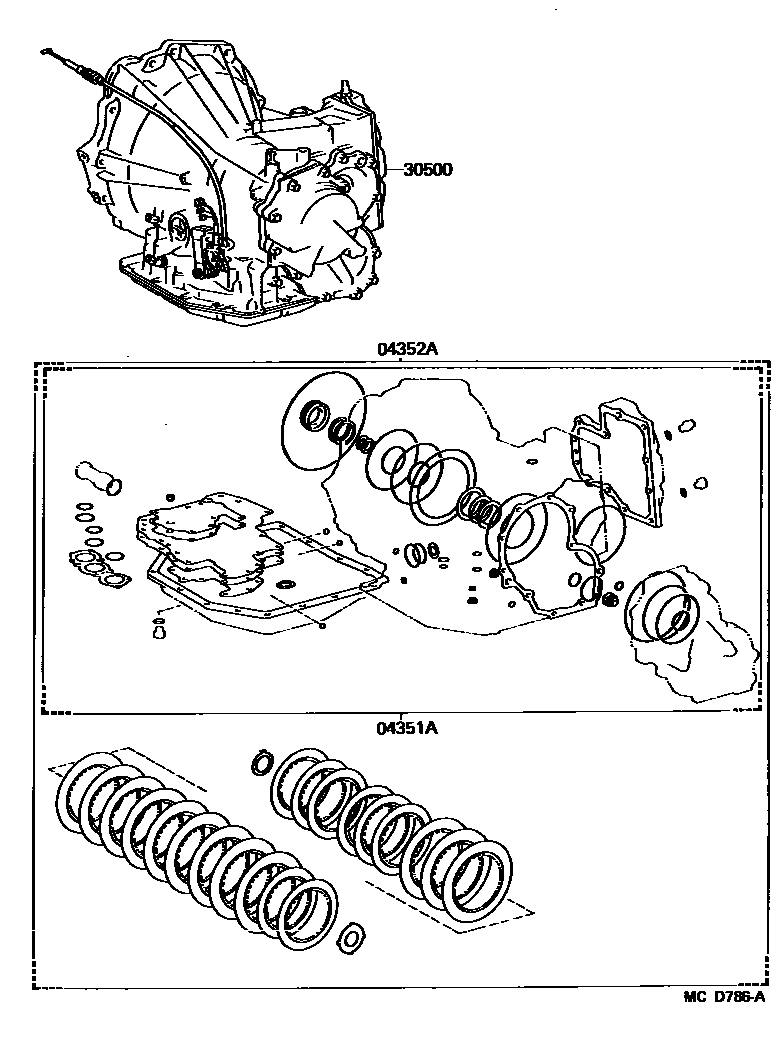

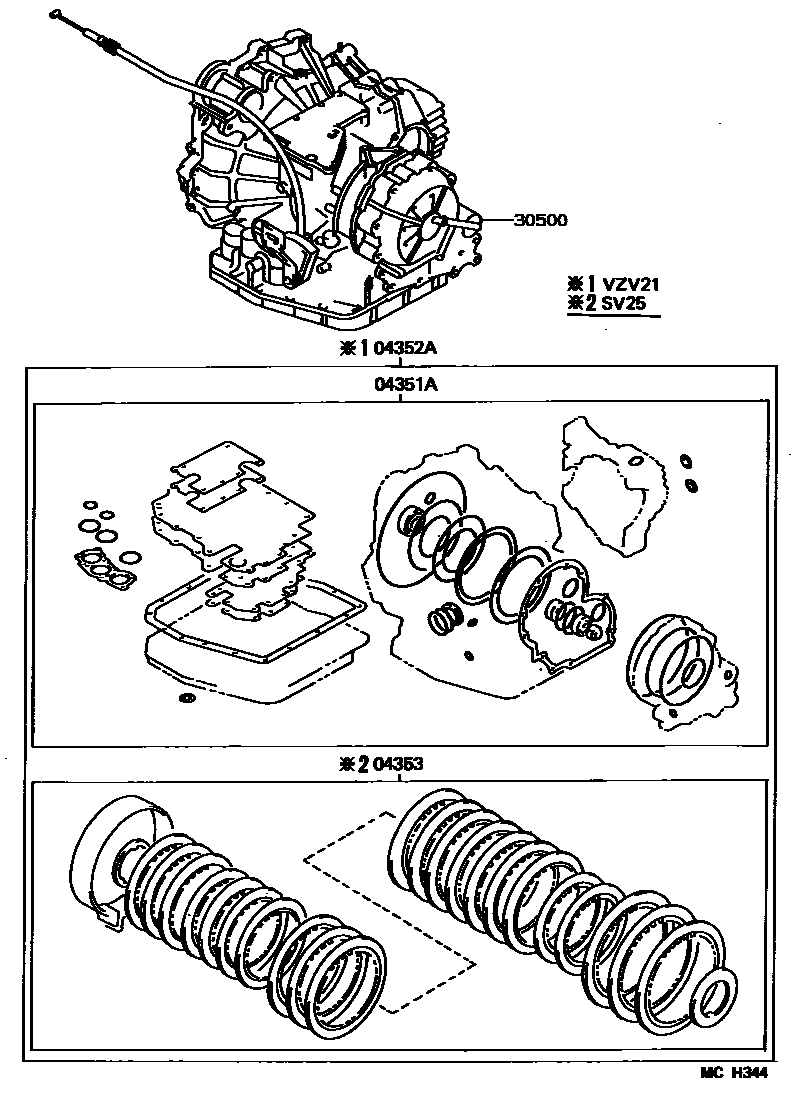

Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-20080 · 04351-20090 · 04351-32050 · 04351-32051 · 04351-32060 |
| 04352A | Transaxle Overhaul Kit (ATM) | 04352-20020 · 04352-20030 · 04352-32050 · 04352-32051 |
| 04353 | Clutch Disk Pack Overhaul Kit (ATM) | 04353-32010 |
| 30500 | Automatic transmission axle assembly | 30500-32320 · 30500-32330 · 30500-32460 · 30500-32461 · 30500-32480 · 30500-32481 |
