Toyota CAMRY 暖风和空调系统 - 真空管 — Figure 8717

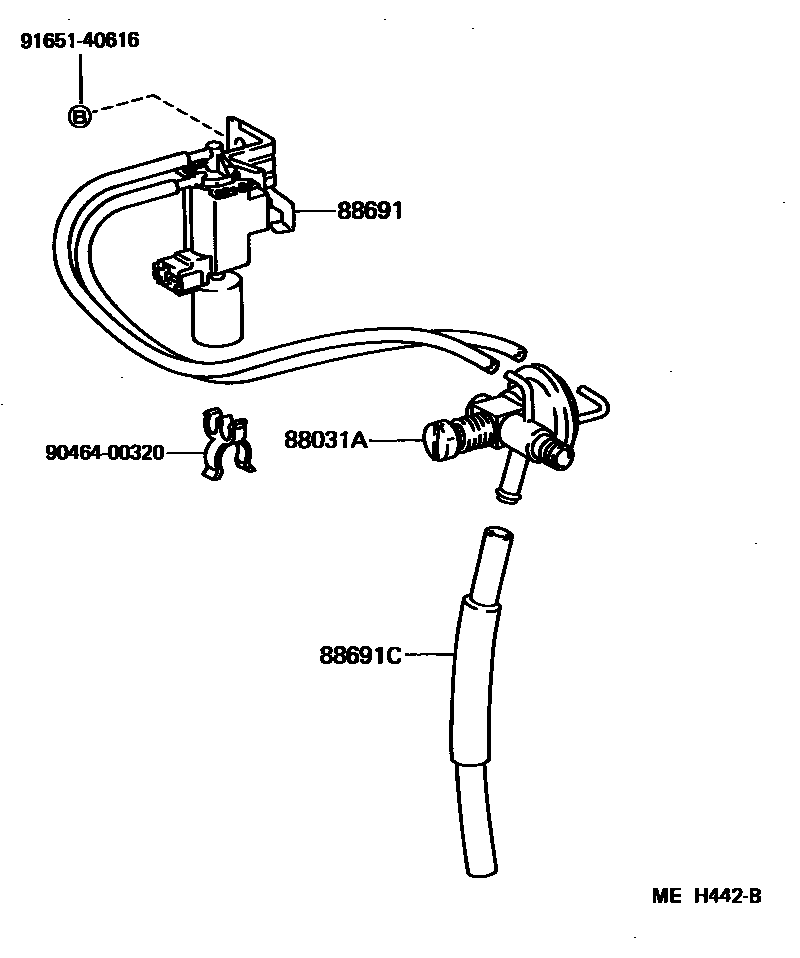

Toyota CAMRY EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-32010 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-32280 · 88691-32070 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 88689-32050 |
