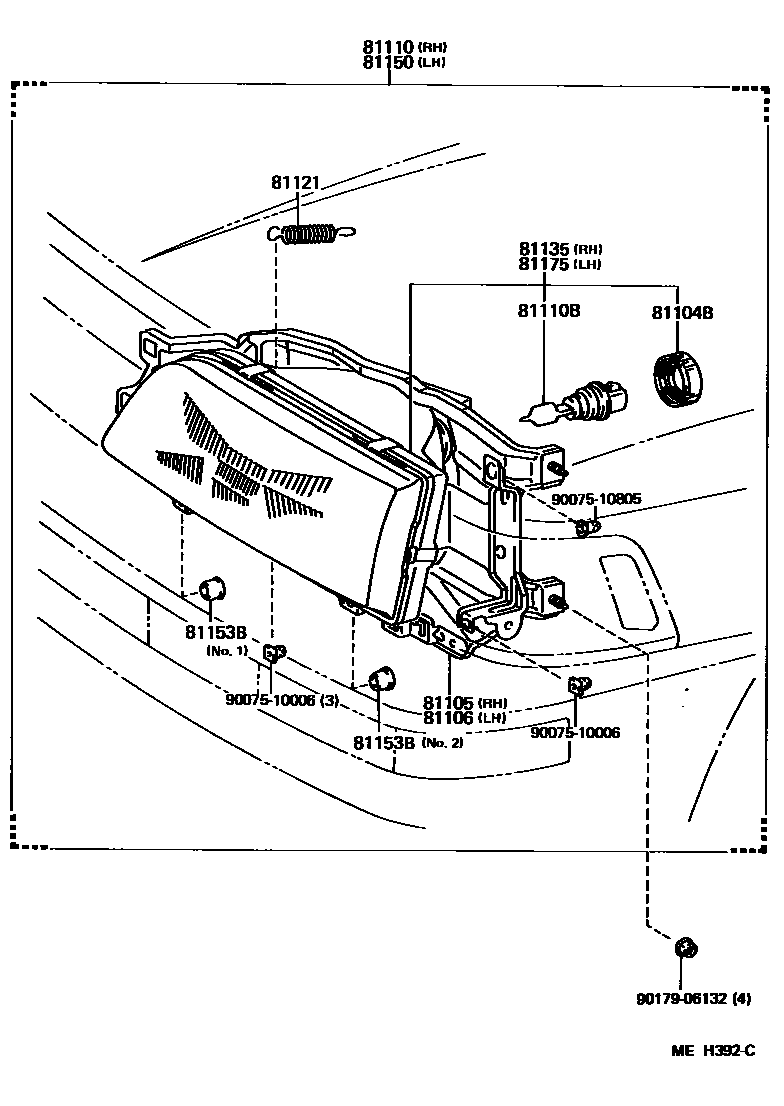

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81104B | headlight lock cover | 81104-22520 |
| 81105 | Right headlight housing sub-assembly | 81105-32200 |
| 81106 | Left headlight housing sub-assembly | 81106-32200 |
| 81110 | Right headlight assembly | 81110-32200 |
| 81110B | Bulb (for headlight No. 1) | 90981-13032 |
| 81121 | headlight spring | 81121-22520 |
| 81135 | Right headlight assembly | 81130-32200 |
| 81150 | Left headlight assembly | 81150-32200 |
| 81153B | headlight support | 81128-32200 · 90075-10806 |
| 81175 | Left headlight assembly | 81170-32200 |
