Toyota CAMRY 后防护条 — Figure 7504

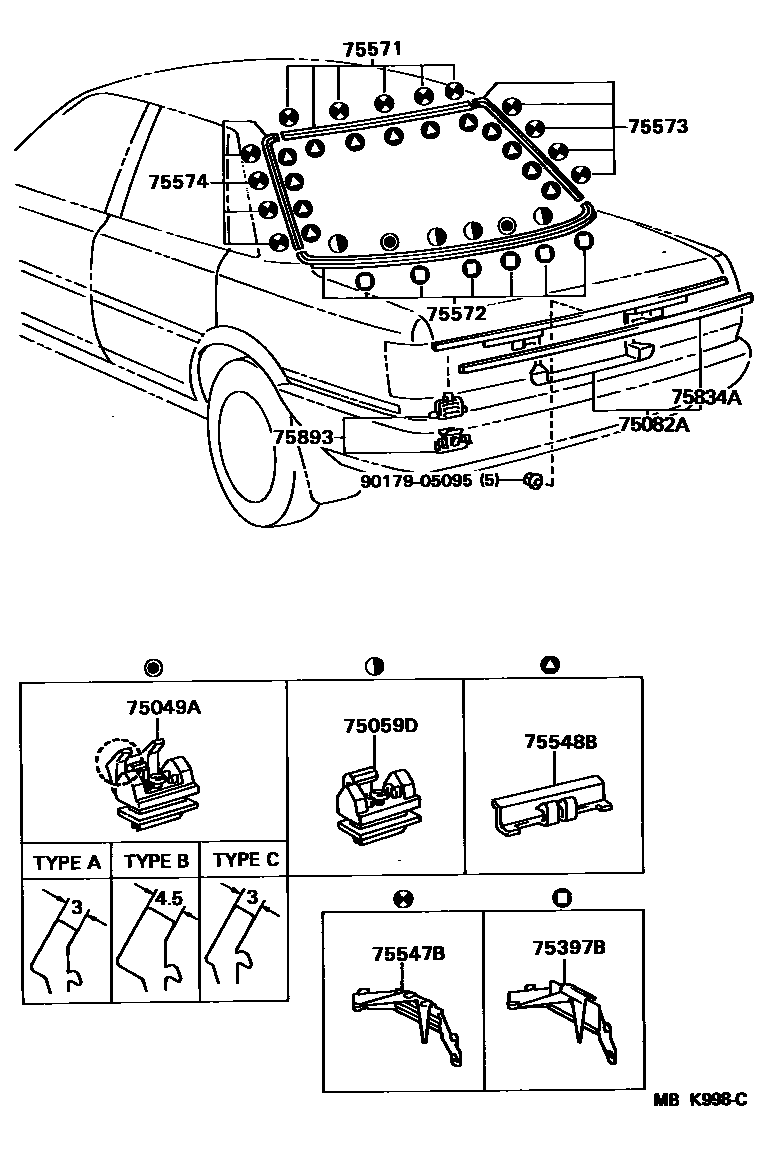

Toyota CAMRY EPC diagram 7504, 后防护条, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75049A | No. 2 clip sub-assembly of outer protective strip | 75049-32010 · 75049-32050 · 75049-32060 |
| 75059D | No. 3 clip sub-assembly of outer protective strip | 75059-32010 |
| 75081A | Rear door decorative panel sub-assembly | 75081-32090 · 75081-32100 |
| 75082A | Trunk door decorative panel sub-assembly | 75082-32100 |
| 75397B | No. 3 rear window protective strip clip | 75397-32010 |
| 75547B | No. 3 windshield outer protective strip clip | 75547-32010 |
| 75548B | Rear window protective strip fasteners | 75548-20060 |
| 75571 | Protective strips on the outside of the rear window | 75571-32030 · 75573-32040 |
| 75572 | Protective strip under rear window | 75507-32010 · 75575-32040 |
| 75573 | Right protective strip on rear window side | 75501-32010 |
| 75574 | Protective strip on the left side of the rear window | 75502-32010 |
| 75834A | Rear lower decorative panel protective strip | 75834-32020 |
| 75893 | Trunk door protective strip fixings | 75893-32010 |
| 76581 | Rear window protective strip fixings | 76581-32020 |
| 76817 | Rear door exterior decorative strip clip | 76817-23010 |
| 76823 | Rear door right side decorative strip protective cover | 76823-32010 |
| 76824 | Rear door left side decorative strip protective cover | 76824-32010 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-32020 · 76825-32021 |
