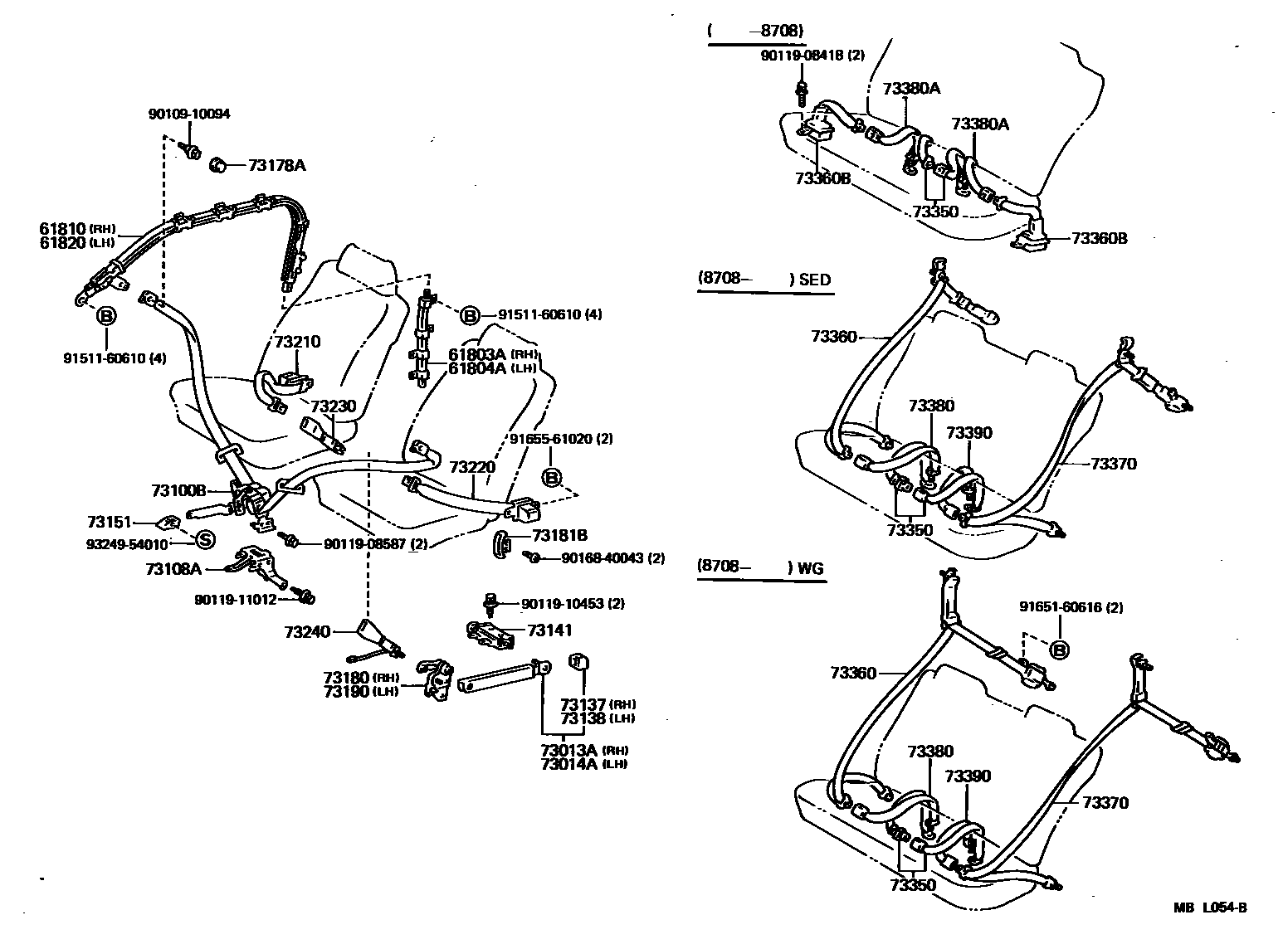

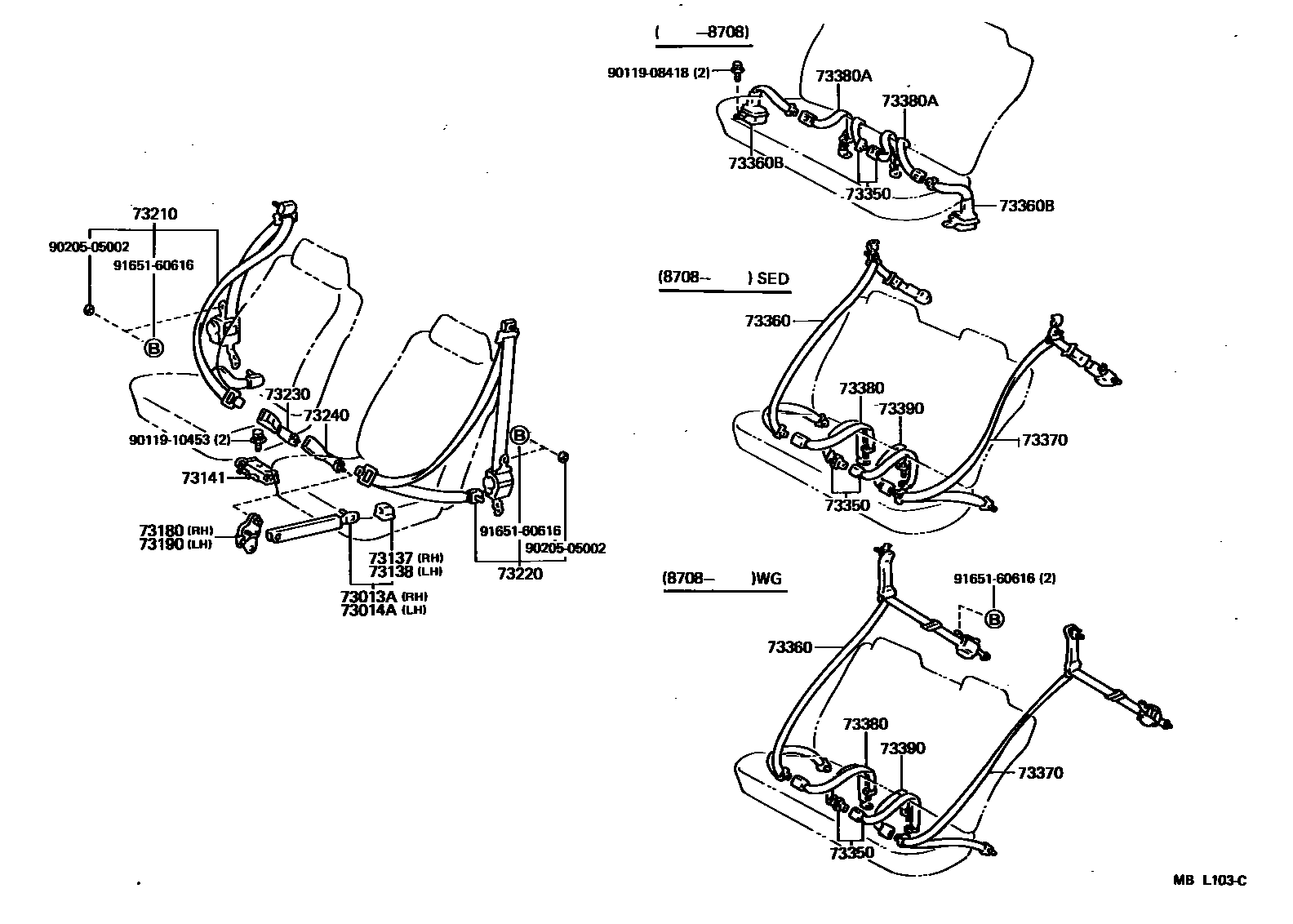

Toyota CAMRY 安全带和儿童保护座椅 — Figure 7104
Toyota CAMRY EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61803A | Right seat belt drive belt slide rail sub-assembly | 61803-32010 |
| 61804A | Left seat belt drive belt slide rail sub-assembly | 61804-32010 |
| 61810 | Right shoulder safety belt guide assembly | 61810-32010 |
| 61820 | Left shoulder safety belt guide assembly | 61820-32010 |
| 73013A | Front right seat seat belt inner anchor plate sub-assembly | 73013-32040 |
| 73014A | Front left seat belt inner anchor plate sub-assembly | 73014-32040 |
| 73108A | Front seat belt anchor base sub-assembly | 73108-32010 · 73108-32020 |
| 73141 | Front seat belt anchor base | 73141-32040 |
| 73180 | Right seat belt inner anchor bracket assembly | 73011-32020 · 73011-32030 |
| 73190 | Left side seat belt inner anchor bracket assembly | 73012-32020 · 73012-32030 |
