Toyota CAMRY 后保险杠及附件 — Figure 5202

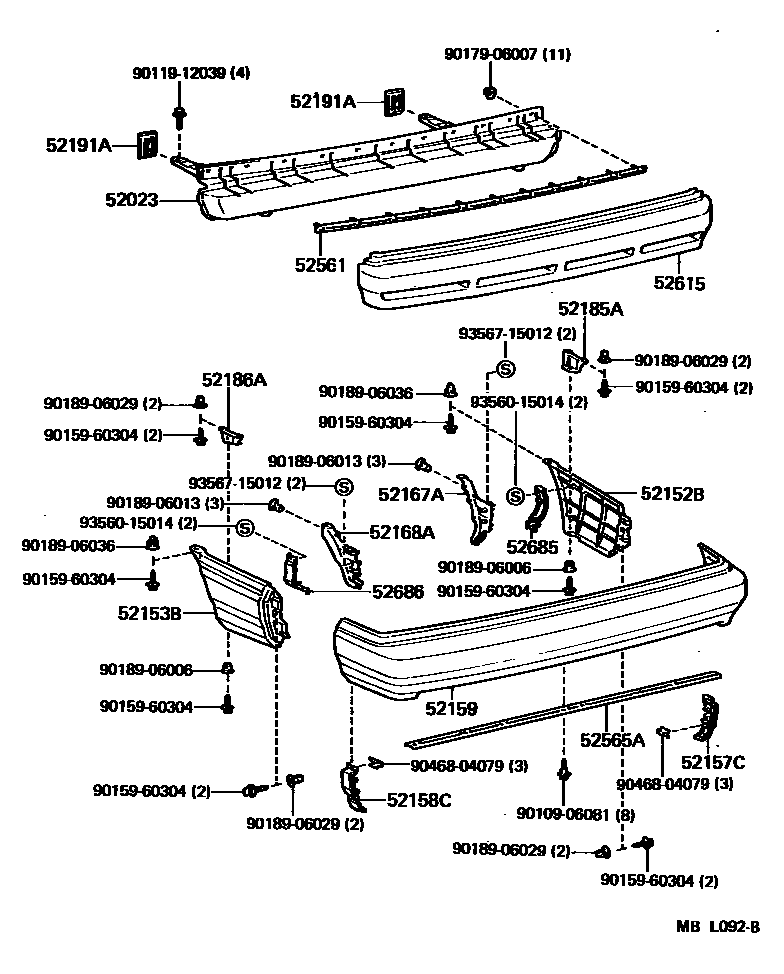

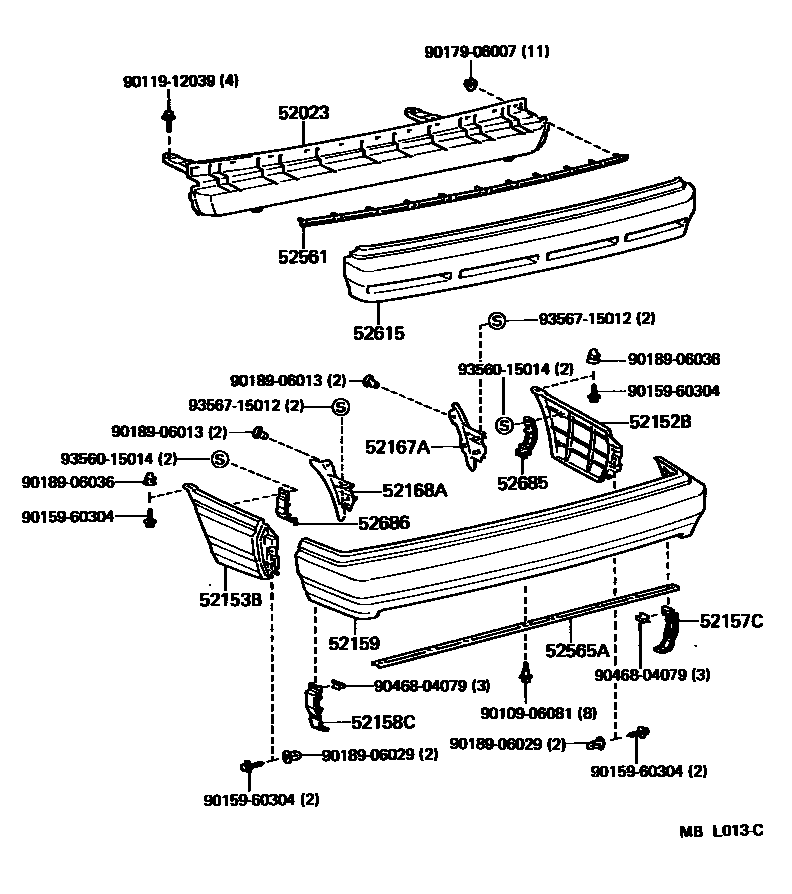

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-32060 · 52023-32090 · 52023-32120 |
| 52152B | Rear bumper right extension | 52152-32060 · 52152-32080 |
| 52153B | Rear bumper left extension | 52153-32060 · 52153-32080 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-32040 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-32020 |
| 52159 | rear bumper cover | 52159-32140 · 52159-32910 |
| 52167A | Rear bumper No. 4 right side bracket | 52167-32020 · 52167-32040 |
| 52168A | Rear bumper No. 4 left side bracket | 52168-32020 · 52168-32040 |
| 52185A | Rear bumper right side bracket | 52185-32010 |
| 52186A | Rear bumper left bracket | 52186-32010 |
| 52191A | Rear bumper arm seal | 52191-32020 |
| 52561 | Rear bumper upper center fixing bracket | 52561-32030 |
| 52565A | Rear bumper lower fixing bracket | 52565-32030 |
| 52615 | Rear bumper energy absorber | 52615-32060 |
| 52685 | Rear bumper No. 3 right side bracket | 52685-32020 |
| 52686 | Rear bumper No. 3 left bracket | 52686-32020 |
