Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102

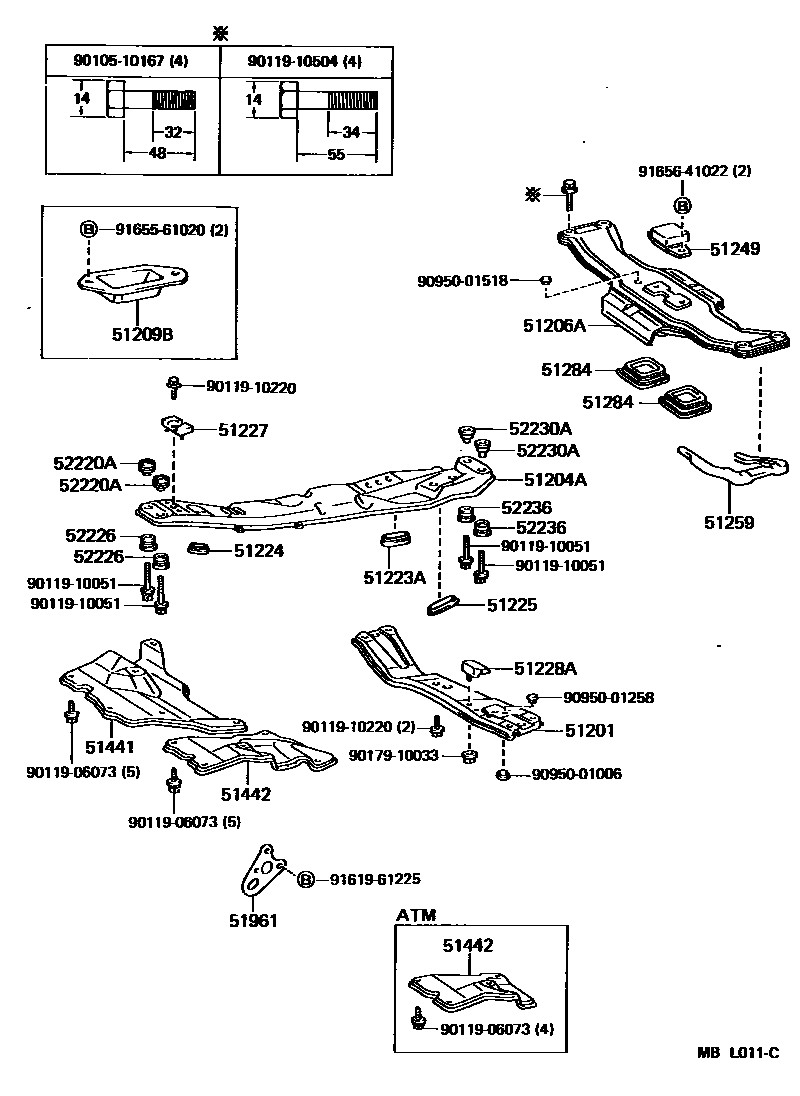

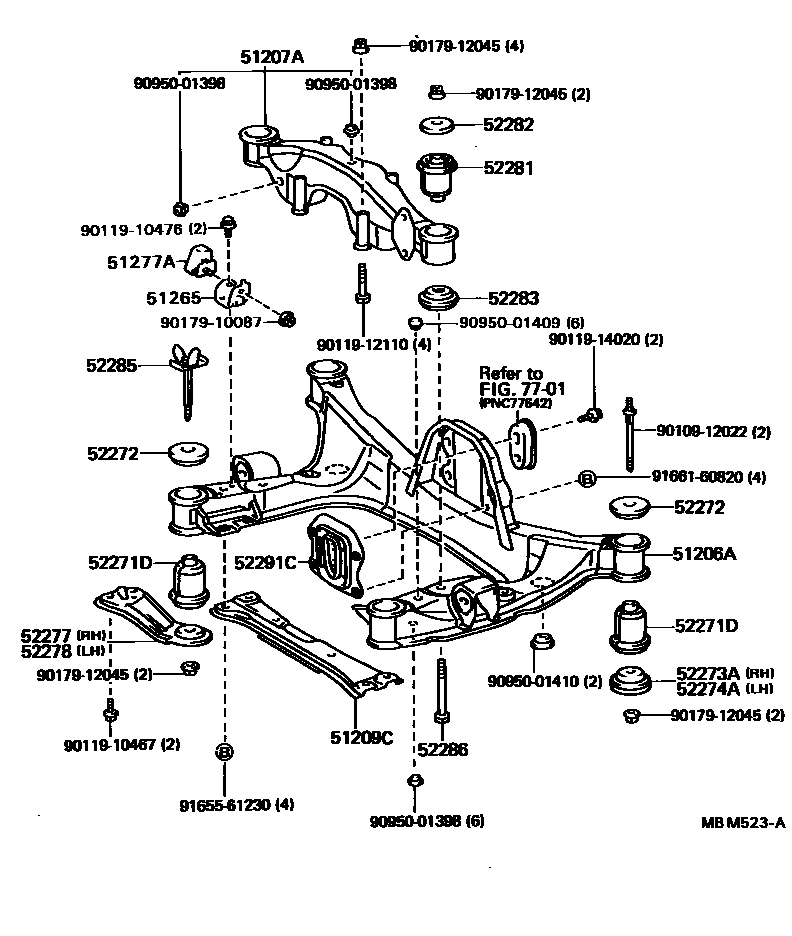

Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-32010 · 51201-32030 |
| 51204A | Engine center mount beam sub-assembly | 51204-32020 · 51204-32021 · 51204-32040 · 51204-32041 |
| 51206A | Rear suspension cross member sub-assembly | 51206-20010 · 51206-20011 · 51206-32010 |
| 51207A | Differential support beam sub-assembly | 51207-20010 · 51207-20011 |
| 51209B | Center beam front protective cover sub-assembly | 51209-32030 |
| 51209C | Frame rear cross member sub-assembly | 51209-32020 |
| 51223A | Engine mounting hole cover | 51223-32020 |
| 51224 | Engine mount hole cover No. 2 | 51224-32010 |
| 51225 | Engine mount hole cover No. 3 | 51225-32010 · 51225-32020 |
| 51227 | Front suspension cross member shock absorber counterweight | 51227-32010 |
| 51228A | Left front suspension cross member shock absorber counterweight | 51228-32010 |
| 51249 | Rear suspension cross member shock absorber | 51249-32010 |
| 51259 | Rear suspension cross member edge protector | 51259-32010 |
| 51265 | Rear suspension cross member front bracket | 51265-32020 |
| 51277A | Differential support beam counterweight | 51277-32010 |
| 51284 | Rear suspension cross member hole cover | 51284-32010 |
| 51441 | No. 1 engine bottom cover | 51441-32030 |
| 51442 | No. 2 engine bottom cover | 51442-32030 · 51442-32040 |
| 51961 | No. 1 hook | 51963-32010 |
| 52220A | Fixed buffer pad assembly on front center beam | 52220-32040 |
| 52226 | Fixed cushion pad under front center beam | 52226-32010 |
| 52230A | Fixed buffer pad assembly on rear center beam | 52230-32030 |
| 52236 | Fixed cushion pad under rear center beam | 52236-32020 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-20010 |
| 52272 | Rear suspension cross member upper block | 52272-20010 |
| 52273A | Rear suspension cross member right lower stop | 52273-20010 |
| 52274A | Rear suspension cross member left lower stop | 52273-20010 |
| 52277 | Right rear suspension cross member lower block fixing piece | 52277-20010 |
| 52278 | Left rear suspension cross member lower block fixing piece | 52278-20010 |
| 52281 | Differential support beam cushion | 52281-20010 |
| 52282 | Differential support beam upper stop | 52282-32010 |
| 52283 | Differential support beam lower block | 52283-20010 |
| 52285 | No. 1 differential support beam mounting bolts | 52285-20010 |
| 52286 | No. 2 differential support beam mounting bolts | 52286-32010 |
| 52291C | Rear differential support beam cushion | 52291-20010 |
