Toyota CAMRY Steering Wheel — Figure 4504

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 2 images and 12 PNC and OE references.

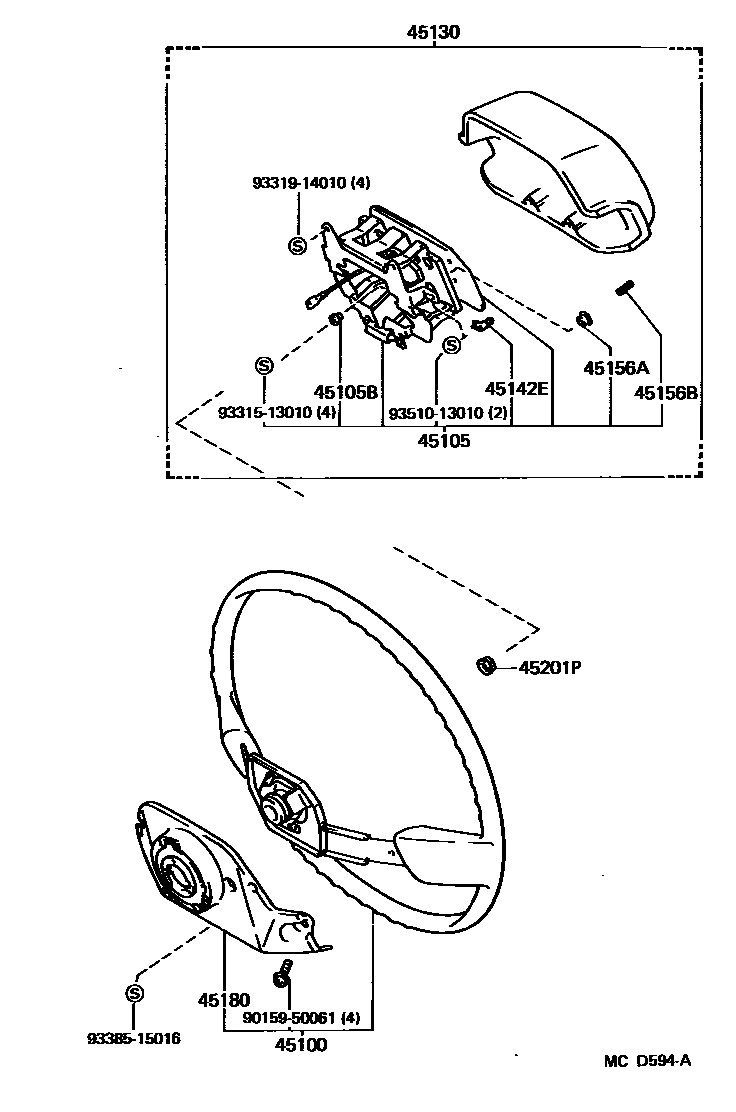

Toyota CAMRY Steering Wheel EPC diagram — MCD594A
Steering Wheel — MCD594A (198608 – 999999)

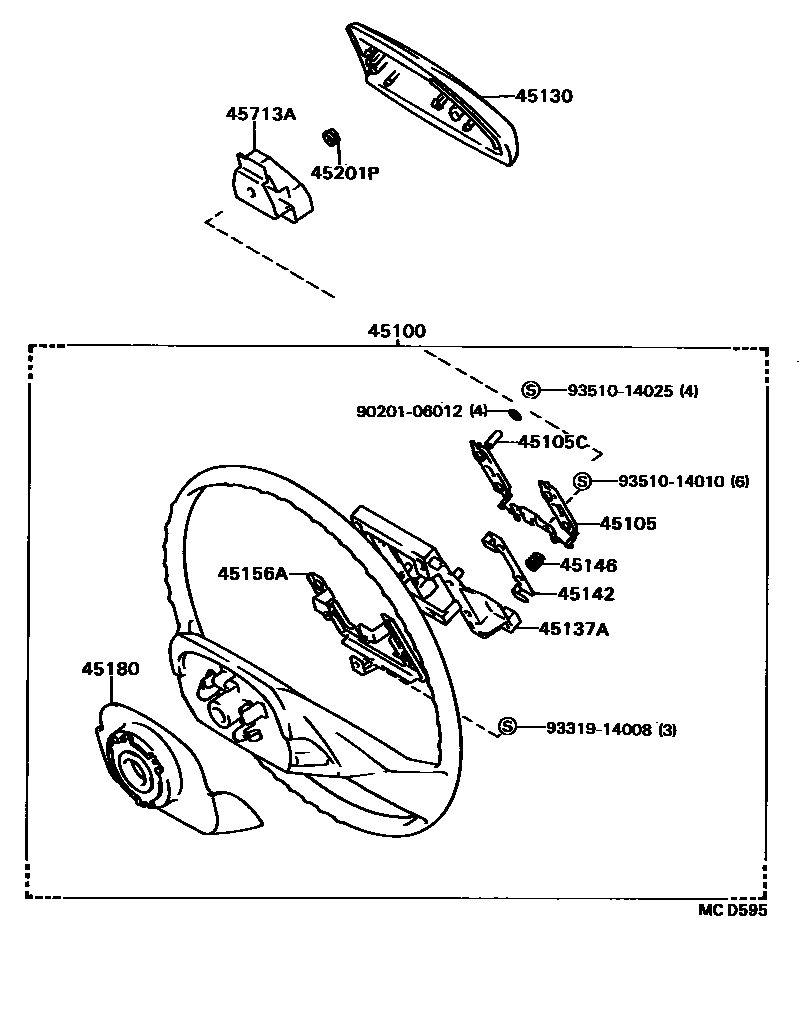

Toyota CAMRY Steering Wheel EPC diagram — MCD595
Steering Wheel — MCD595 (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
45105No. 1 horn button contact piece sub-assembly45105-32050 · 45105-32070
45105BSpacer (for horn button contact piece)90561-02001
45105CCollar (for horn button contact piece)90387-04005
45137ANo. 2 horn button contact piece45137-32040
45142No. 1 horn button contact seat45142-32050
45142ESpeaker contacts45142-20060
45146Horn button contact spring45146-20140
45156ASpeaker contact spring holder45156-16010 · 45156-32010
45156BSpring (for horn contact spring holder)90501-06032
45180Steering wheel cover sub-assembly45180-32040
45201PSteering wheel fixing nut90179-12086
45713Asteering damper45713-32020 · 45713-32030
