Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 4 PNC and OE references.

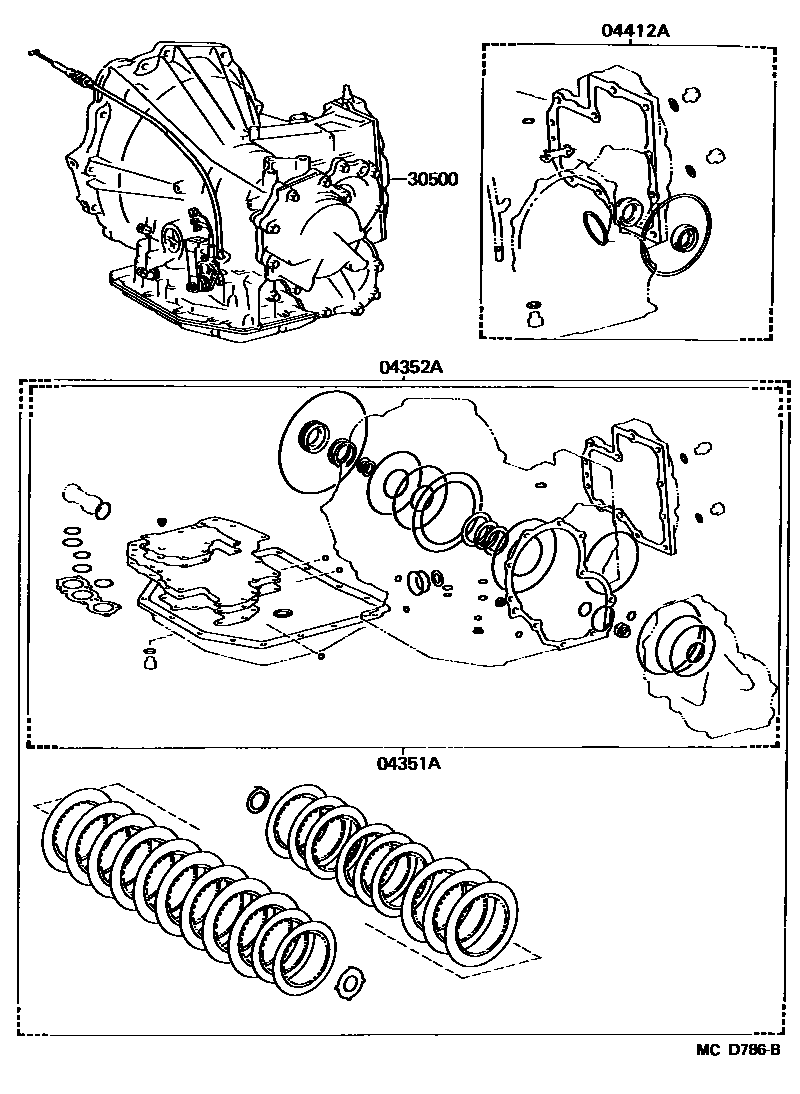

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — MCD786B
传动桥或变速器总成和衬垫组件(ATM) — MCD786B (198608 – 999999)

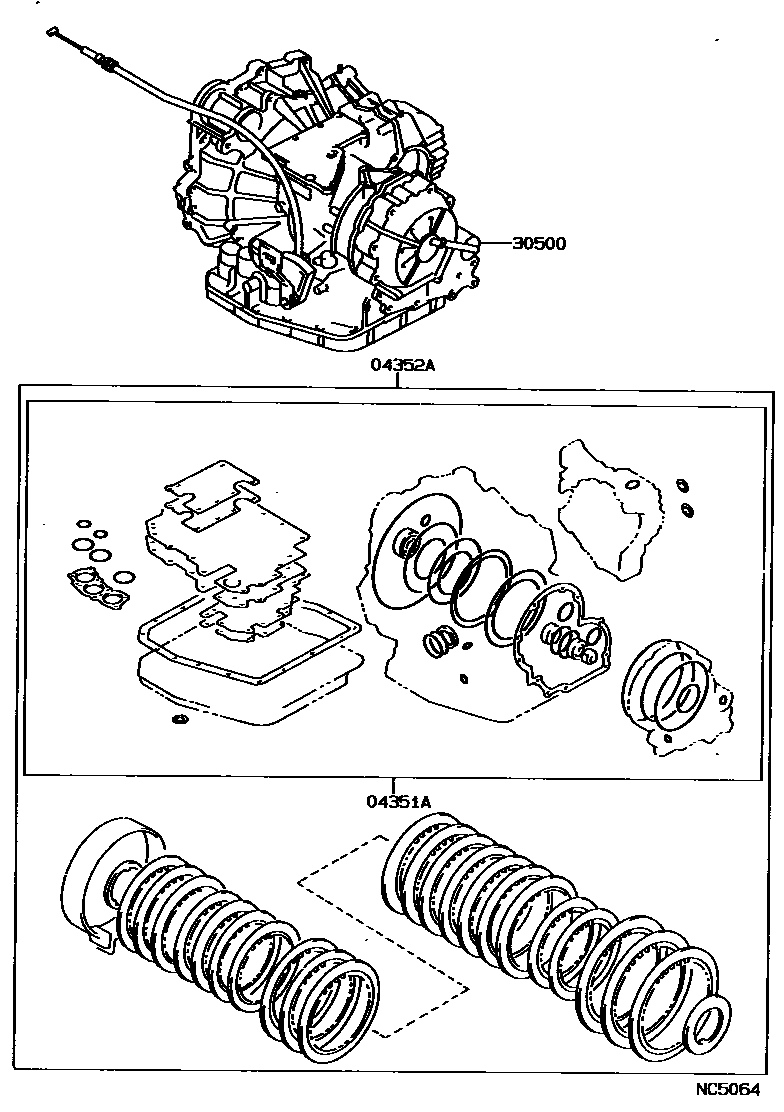

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — NC5064
传动桥或变速器总成和衬垫组件(ATM) — NC5064 (198802 – 999999)

PNC and OE references

PNCPart nameOE numbers
04351ATransaxle overhaul gasket assembly (ATM)04351-20080 · 04351-20090 · 04351-32050
04352ATransaxle Overhaul Kit (ATM)04352-20020 · 04352-32030 · 04352-32050
04412ADifferential case gasket assembly (ATM)04412-16020
30500Automatic transmission axle assembly30500-32220 · 30500-32320 · 30500-32330 · 30500-32460
