Toyota CAMRY 点火线圈和火花塞 — Figure 1901

Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 2 images and 14 PNC and OE references.

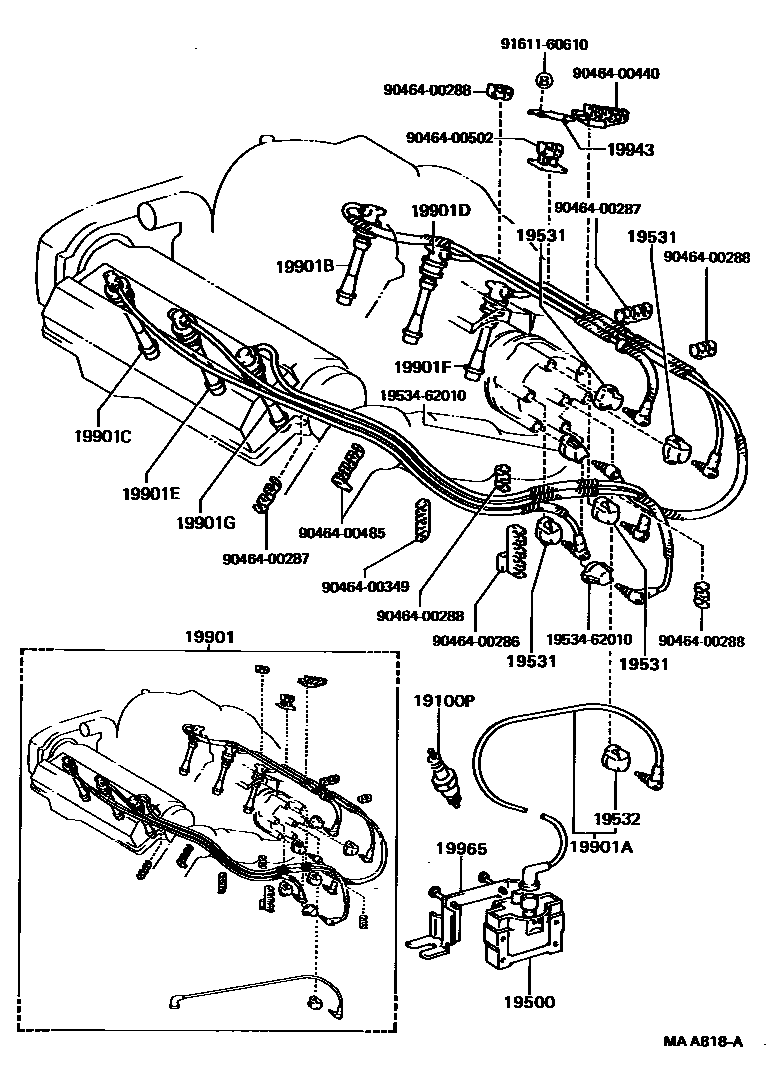

Toyota CAMRY 点火线圈和火花塞 EPC diagram — MAA818A
点火线圈和火花塞 — MAA818A (198802 – 999999)

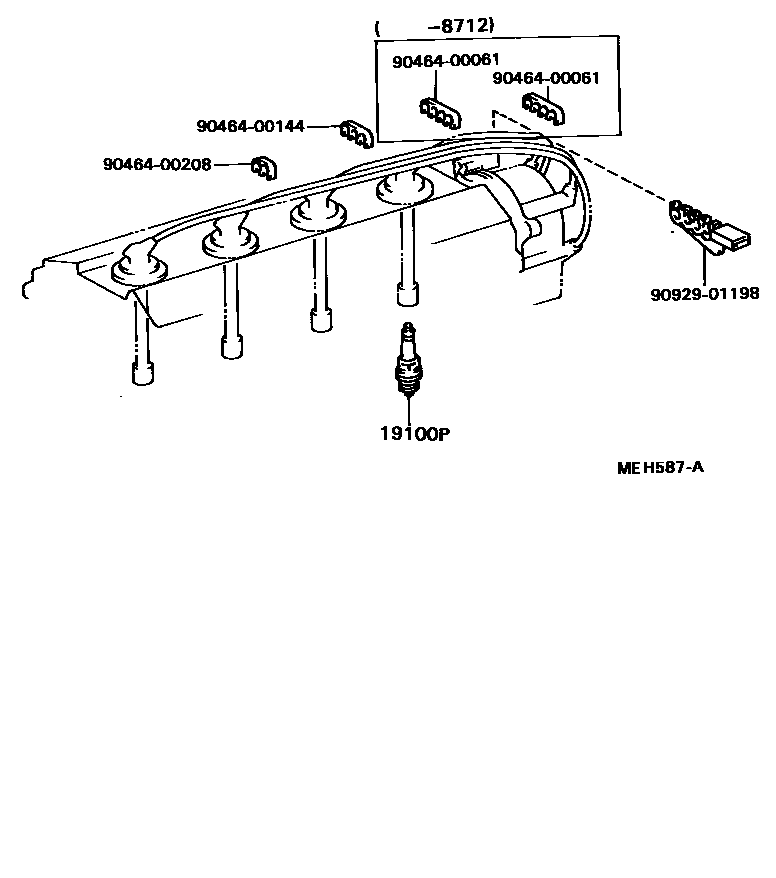

Toyota CAMRY 点火线圈和火花塞 EPC diagram — MEH587A
点火线圈和火花塞 — MEH587A (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01127 · 90919-01129
19500Ignition coil assembly90919-02185
19531No. 1 damping wire fixing piece19531-62010
19532No. 2 damping wire fixing piece19532-62010
19901Coil and spark plug assembly with damper wire90919-21414
19901Acoil damping line19590-62010
19901BNo. 1 spark plug damper wire90919-12811
19901CNo. 2 spark plug damper wire90919-12812
19901DNo. 3 spark plug damper wire90919-12813
19901ENo. 4 spark plug damper wire90919-12814
19901FNo. 5 spark plug damper wire90919-12815
19901GNo. 6 spark plug damper wire90919-12816
19943No. 1 damping wire clip support plate19943-62010
19965No. 1 ignition coil band90919-03110
