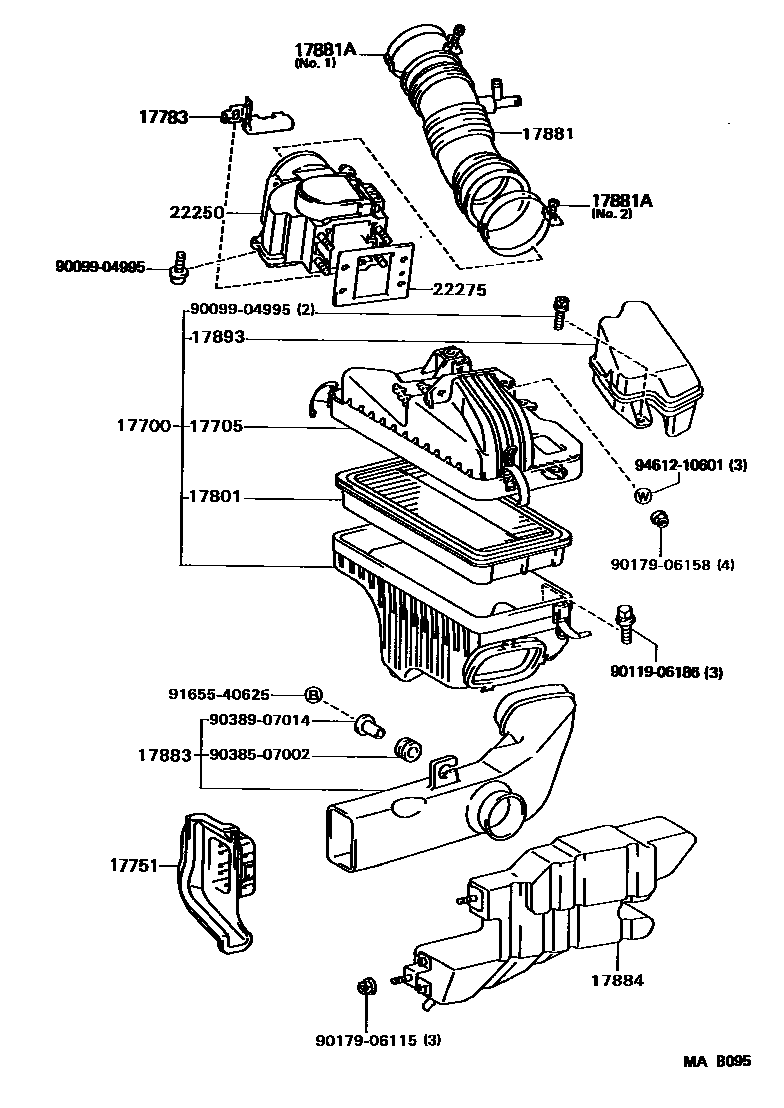

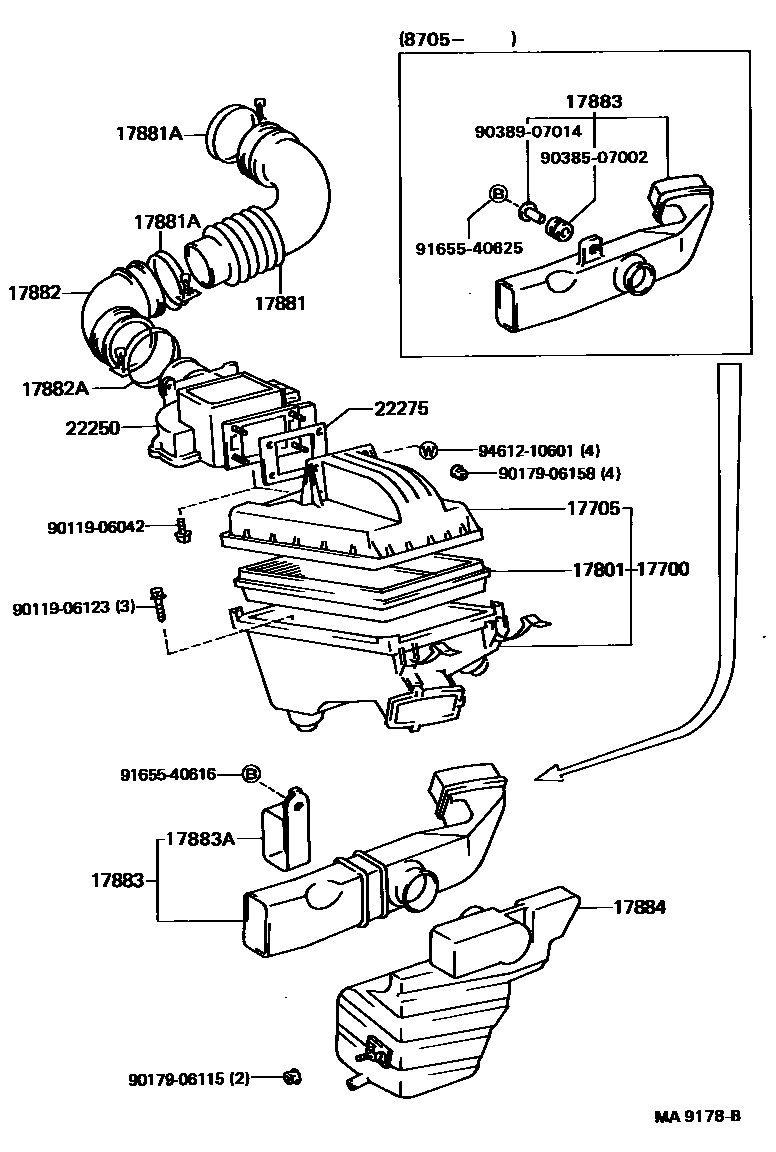

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-62020 · 17700-74100 |
| 17705 | Air filter cover sub-assembly | 17705-62020 · 17705-74070 |
| 17751 | No. 1 air filter air inlet | 17751-62010 |
| 17783 | air filter baffle | 17783-74030 |
| 17801 | Air filter element sub-assembly | 17801-74010 · 17801-74020 |
| 17881 | No. 1 air cleaner hose | 17881-62020 · 17881-74110 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10730 · 96111-10750 · 96111-10900 |
| 17882 | No. 2 air cleaner hose | 17882-74040 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10800 |
| 17883 | No. 3 air cleaner hose | 17882-63110 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-01046 |
| 17884 | No. 4 air cleaner hose | 17883-62010 · 17883-63030 |
| 17893 | Intake resonator | 17893-62010 |
| 22250 | Intake air flow meter assembly | 22250-62020 · 22250-74100 · 22250-74140 |
| 22275 | air flow meter gasket | 22275-41010 · 22275-43010 |
