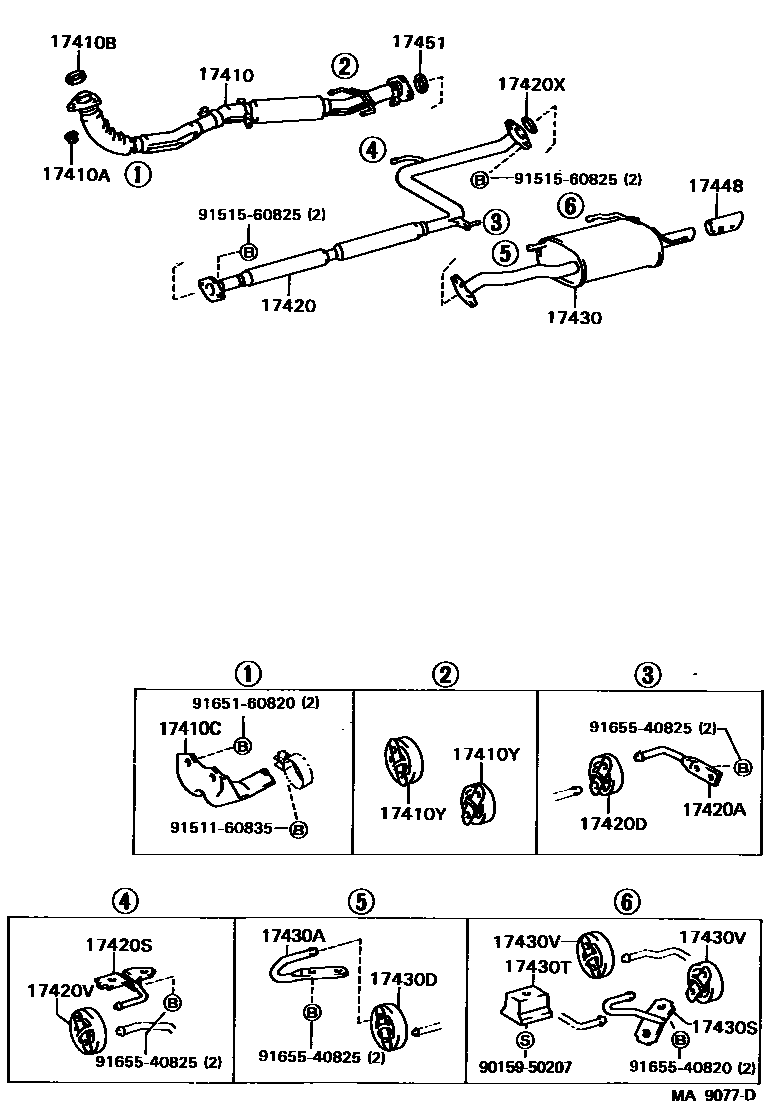

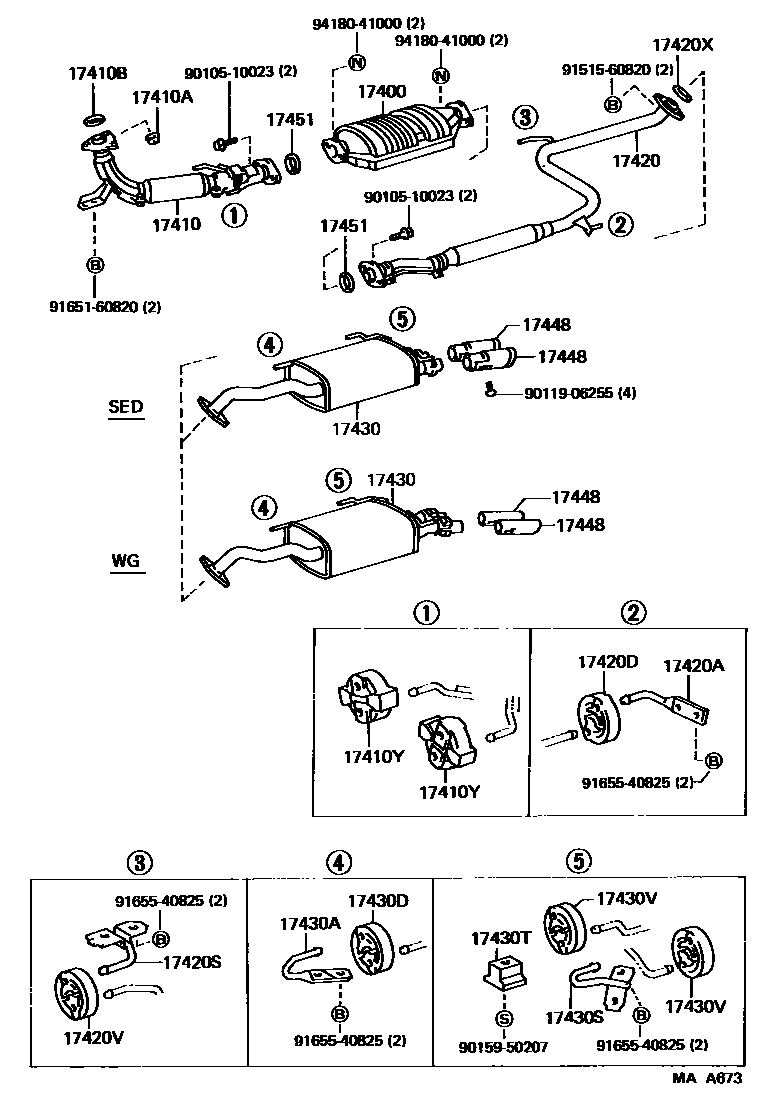

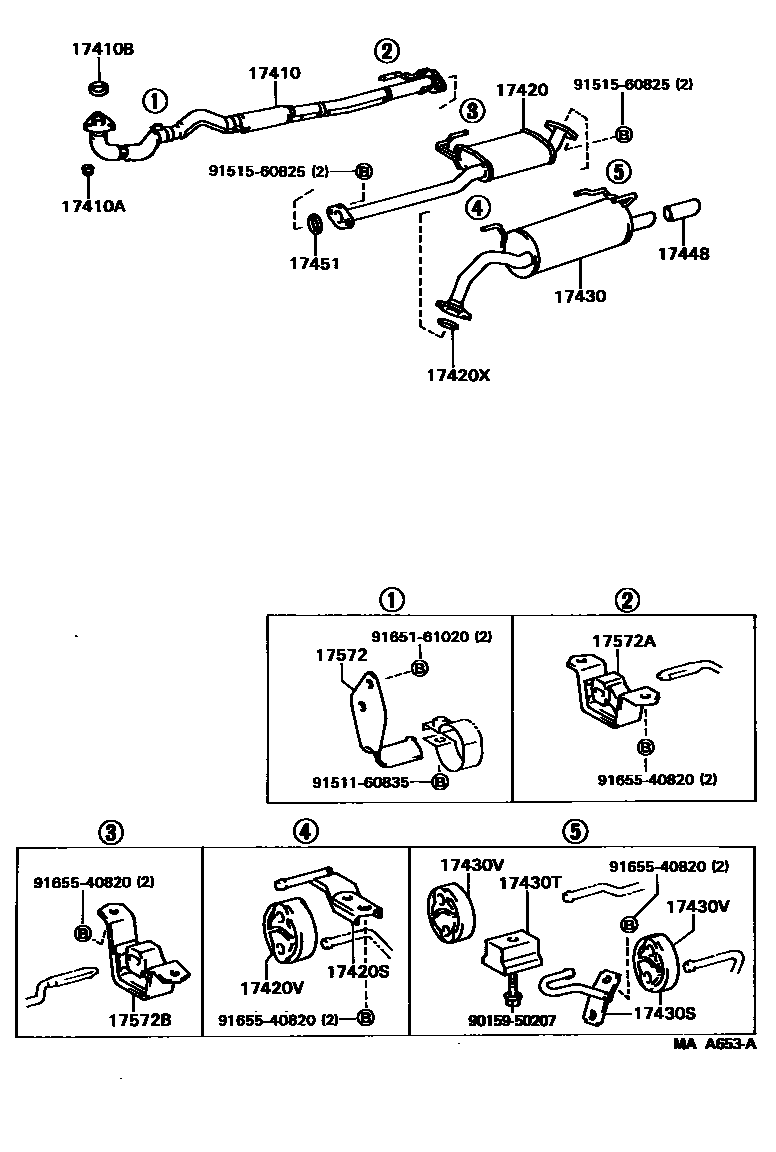

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-62010 |
| 17410 | Front exhaust pipe assembly | 17410-62020 · 17410-74150 · 17410-74300 · 17410-74470 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06005 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-74050 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17565-11100 · 17565-62010 |
| 17420 | Central exhaust pipe assembly | 17420-62020 · 17420-62030 · 17420-74130 · 17420-74200 |
| 17420A | Center exhaust pipe front bracket | 17572-63050 |
| 17420D | Center exhaust pipe front bolt or ring | 17565-11100 · 17565-62010 |
| 17420S | Center exhaust pipe rear bracket | 17507-63030 · 17508-74020 |
| 17420V | Center exhaust pipe rear bolt or ring | 17565-11100 · 17565-62010 |
| 17420X | Center exhaust pipe liner | 90917-06012 |
| 17430 | Exhaust tailpipe assembly | 17430-62021 · 17430-62031 · 17430-74190 · 17430-74191 · 17430-74200 · 17430-74290 · 17430-74291 · 17430-74380 · 17430-74381 |
| 17430A | Exhaust tailpipe bracket (for front) | 17563-63080 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17565-55020 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17509-63060 · 17509-74040 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17591-36010 · 17591-36011 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17565-63120 |
| 17448 | Exhaust pipe tail throat | 17448-41050 · 17448-74010 · 17448-79025 |
| 17451 | Exhaust pipe gasket | 90917-06012 |
| 17572 | No. 1 exhaust pipe bracket | 17571-74110 |
| 17572A | No. 1 lower exhaust pipe bracket | 17573-74010 |
| 17572B | No. 2 exhaust pipe bracket | 17572-74020 |
