Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719

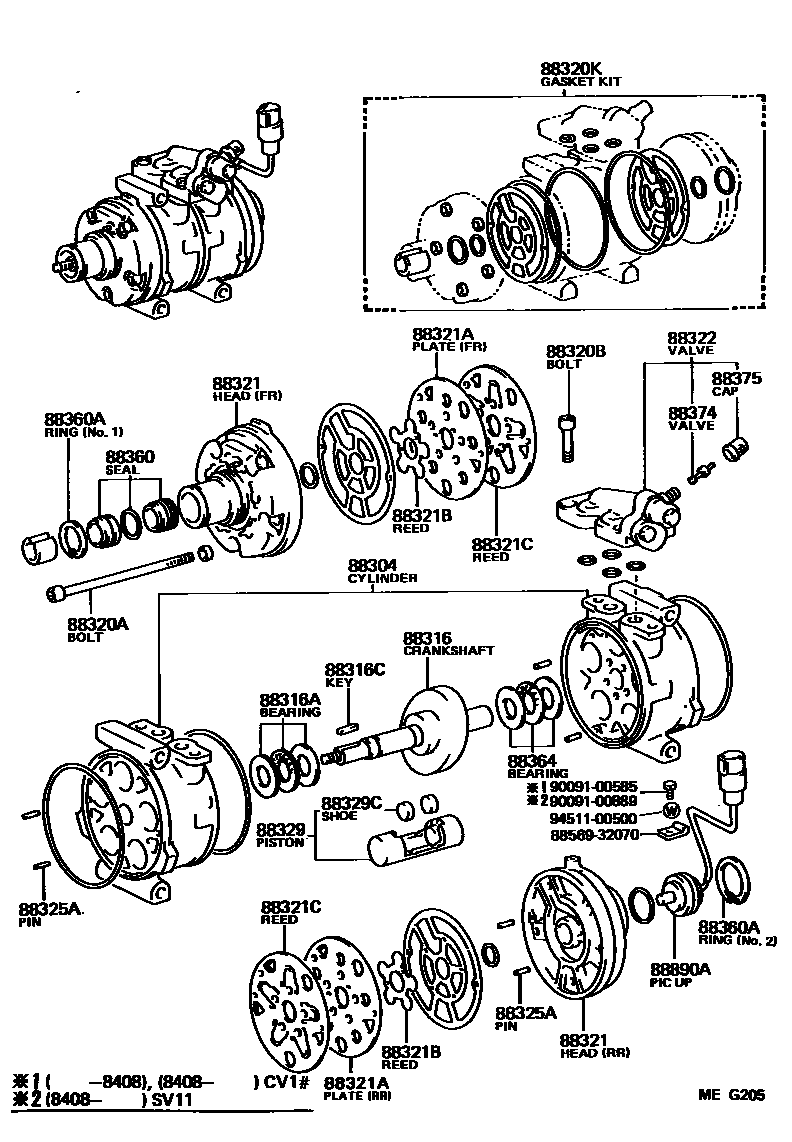

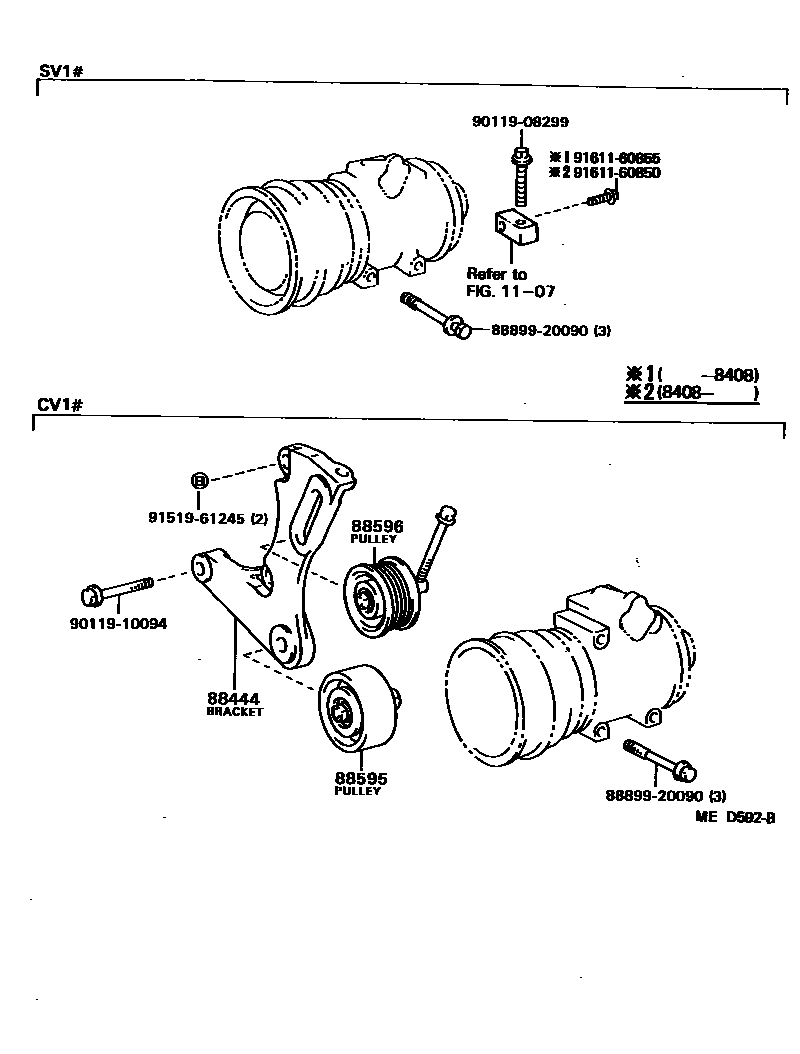

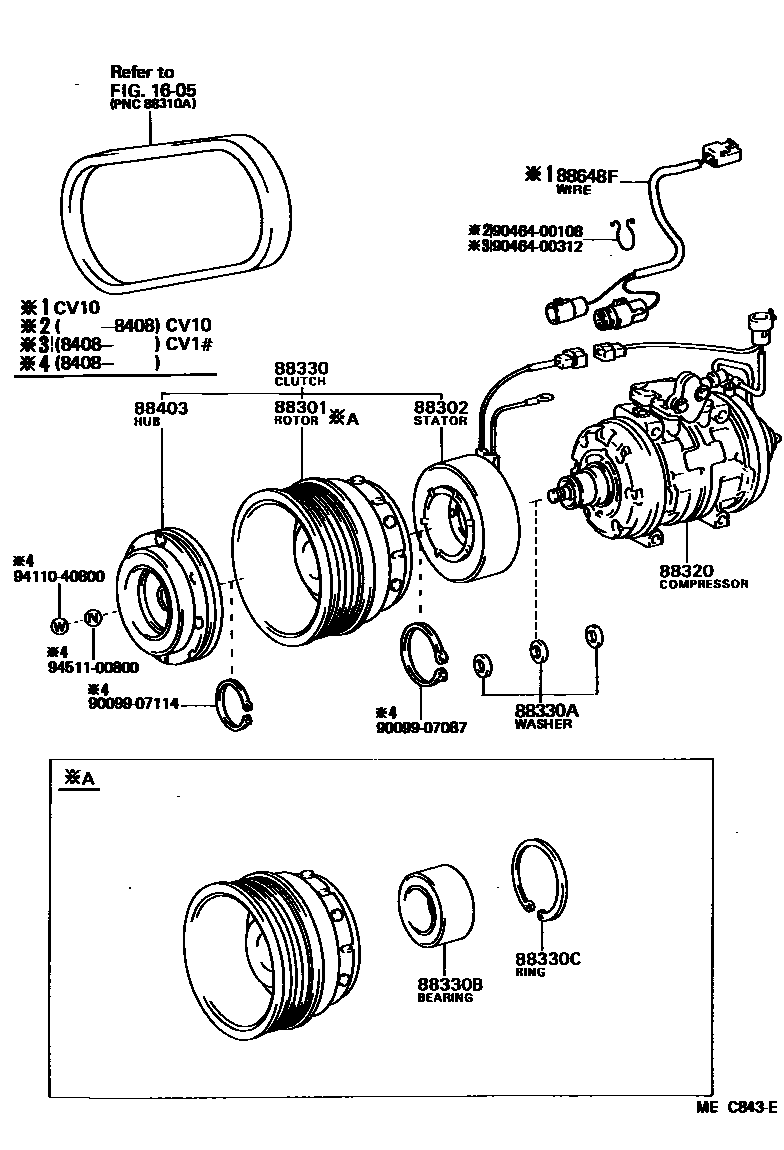

Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-32010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-32010 |
| 88304 | Cooler compressor cylinder sub-assembly | 88304-14021 |
| 88316 | Cooler compressor crankshaft | 88316-32010 · 88316-32011 |
| 88316A | Compressor crankshaft front bearing | 88366-14010 |
| 88316C | Compressor crankshaft key | 90099-13011 · 90099-13024 |
| 88320 | Cooler Compressor Assembly | 88320-32021 · 88320-32040 · 88320-32060 |
| 88320A | Through bolt | 90099-04958 |
| 88320B | Service valve bolts | 90099-04307 · 90099-04924 |
| 88320K | Cooler compressor overhaul gasket assembly | 04881-32010 |
| 88321 | Cooler compressor cylinder head | 88321-14011 · 88322-32010 |
| 88321A | Valve sub-assembly | 88341-14010 · 88342-14010 |
| 88321B | Valve reed sub-assembly | 88344-14011 |
| 88321C | suction valve reed | 88343-14011 |
| 88322 | Cooler compressor suction service valve | 88371-32010 · 88371-32030 · 88371-32070 |
| 88325A | cylinder pin | 90099-08058 |
| 88329 | Cooler compressor piston sub-assembly | 88301-14020 |
| 88329C | piston shoe | 88313-14010 |
| 88330 | Magnetic Clutch Assembly | 88410-32010 |
| 88330A | Washer (for electromagnetic clutch) | 88335-12050 |
| 88330B | Electromagnetic clutch bearing | 90099-10133 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-07118 |
| 88360 | Cooler compressor shaft seal assembly | 88360-14020 · 88360-40010 |
| 88360A | Compressor seal ring | 90096-90022 · 90099-07119 |
| 88364 | Compressor crankshaft rear bearing | 88366-14010 |
| 88374 | Cooler compressor service valve | 88374-12020 |
| 88375 | Cooler compressor repair valve cover | 88375-30270 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14030 |
| 88444 | Idler gear bracket | 88444-32010 |
| 88595 | Cooler compressor idler pulley | 88440-32020 |
| 88596 | No. 2 idler gear assembly | 88440-12100 |
| 88648F | Electromagnetic clutch wiring harness | 88648-32040 |
| 88890A | sensor assembly | 88890-32010 |
