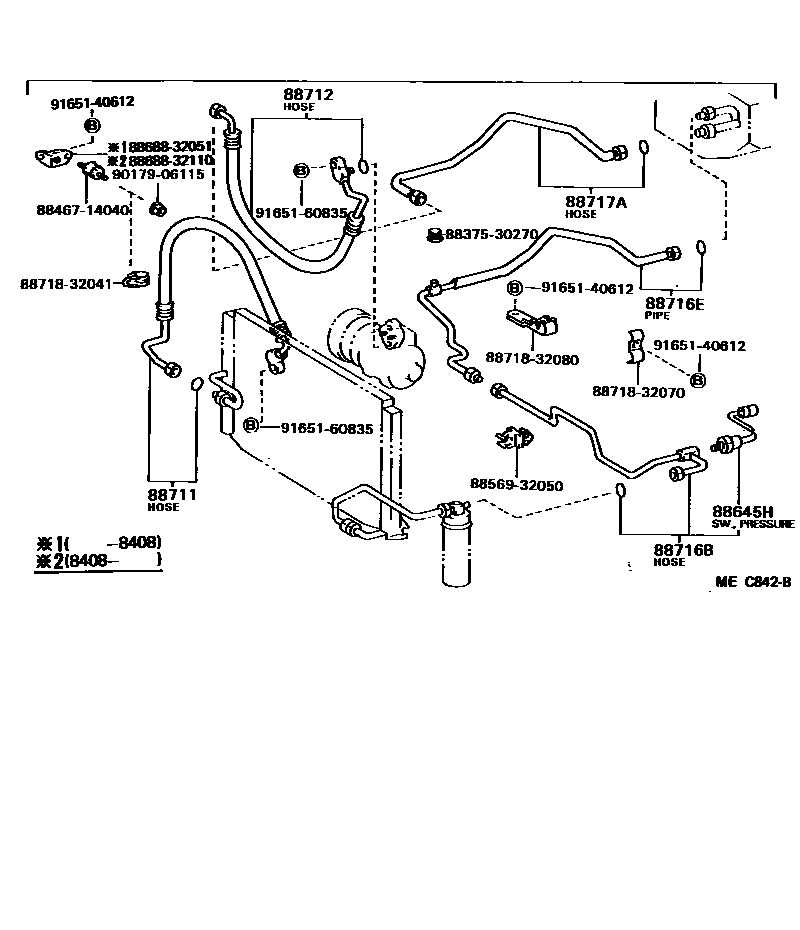

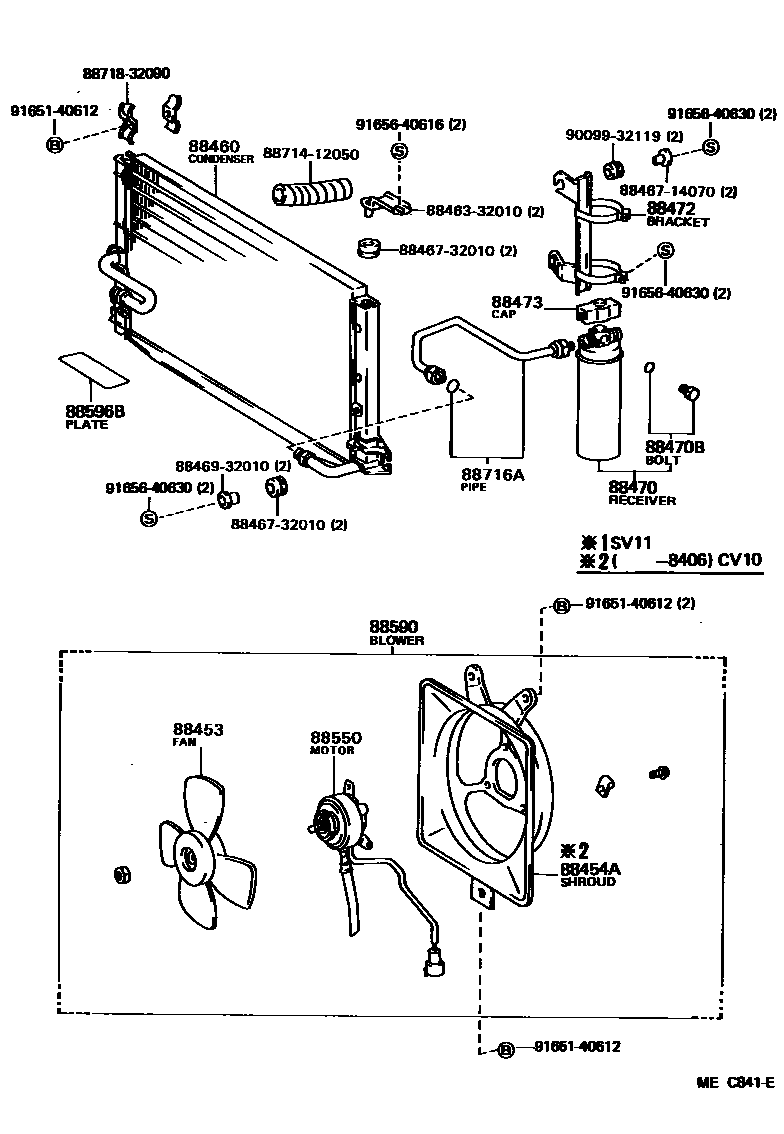

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88453 | Cooling fan (for condenser) | 88453-32010 · 88453-32020 |
| 88454A | fan cover | 16712-64040 · 88454-32030 |
| 88460 | Air conditioning condenser assembly | 88460-32020 · 88460-32030 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12061 · 88470-14010 |
| 88470B | fuse bolt | 88475-12020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-32010 |
| 88473 | Cooler reservoir cap | 88894-12111 |
| 88550 | Blower motor assembly (for condenser) | 16363-64020 · 88550-32010 · 88550-32020 |
| 88590 | Blower assembly with hood | 88590-32040 · 88590-32050 |
| 88596B | No. 1 warning nameplate | 88596-12010 |
| 88645H | No. 1 pressure switch | 88645-32010 · 88645-32030 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-32010 · 88711-32030 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-32030 · 88712-32080 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-32120 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-32050 · 88716-32180 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-32110 |
| 88717A | Cooler refrigerant suction pipe A | 88717-32020 |
