Toyota CAMRY 暖风和空调系统 - 真空管 — Figure 8717

Toyota CAMRY EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 4 PNC and OE references.

Toyota CAMRY 暖风和空调系统 - 真空管 EPC diagram — MEC840D
暖风和空调系统 - 真空管 — MEC840D (198301 – 999999)

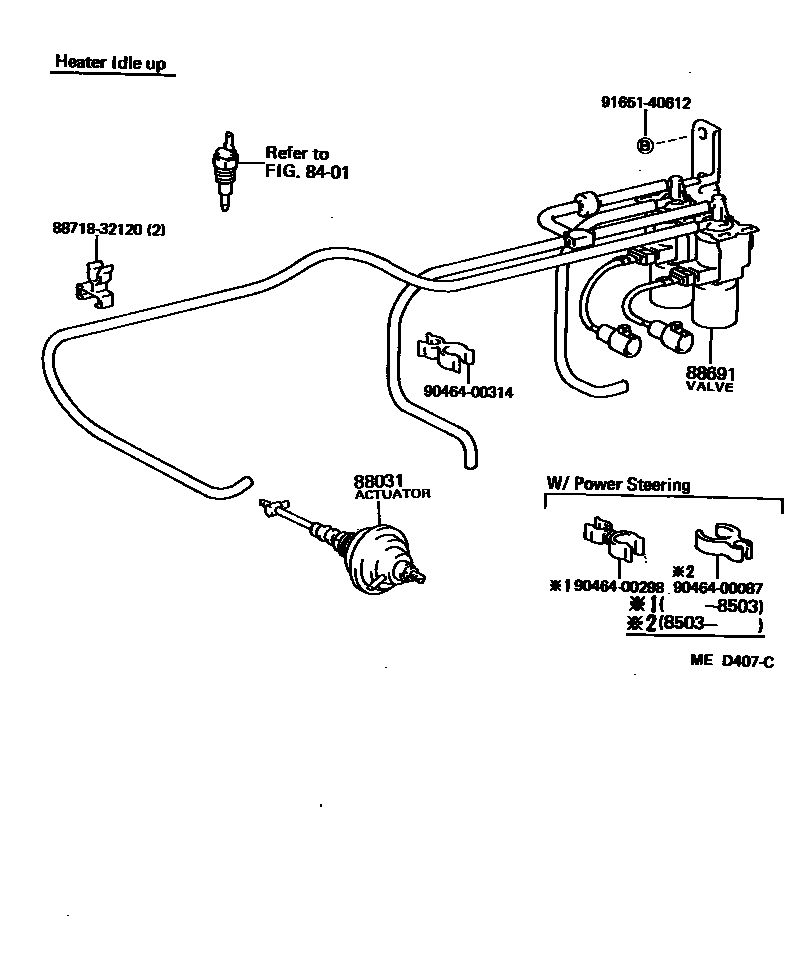

Toyota CAMRY 暖风和空调系统 - 真空管 EPC diagram — MED407C
暖风和空调系统 - 真空管 — MED407C (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
88031Idle speed lift actuator assembly88031-30070
88031AIdle speed lift actuator diaphragm sub-assembly88606-14020
88691Solenoid valve (for idle speed lifting device)88690-32080 · 88690-32130 · 88690-32160
88691DVacuum hose No. 2 (for idle lift)88689-32030
