Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

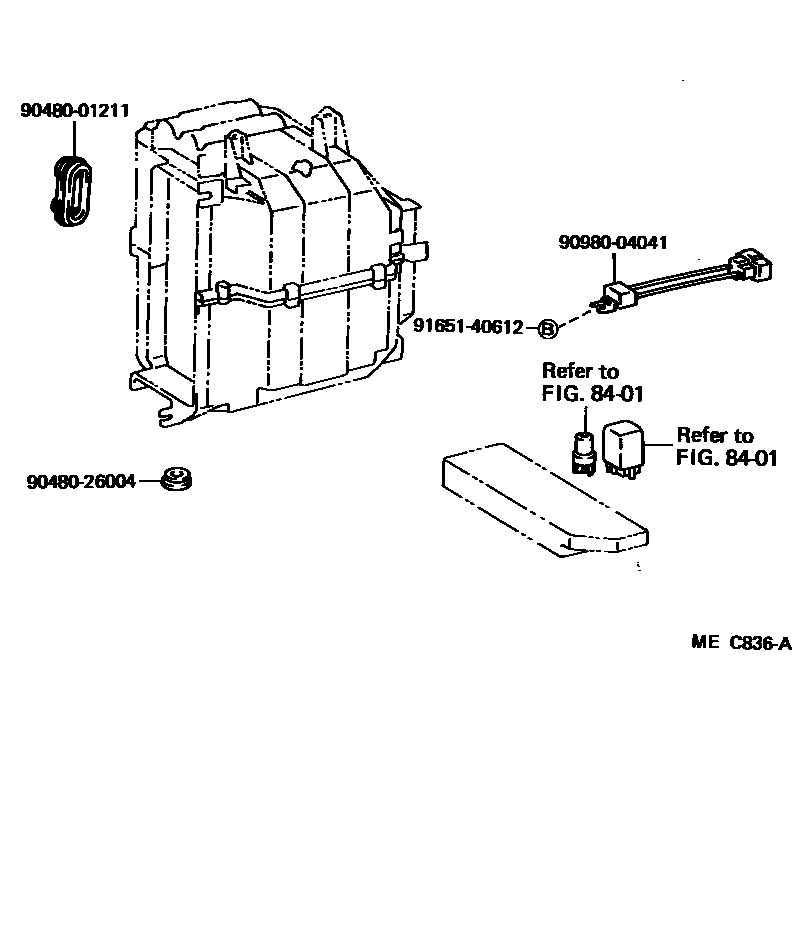

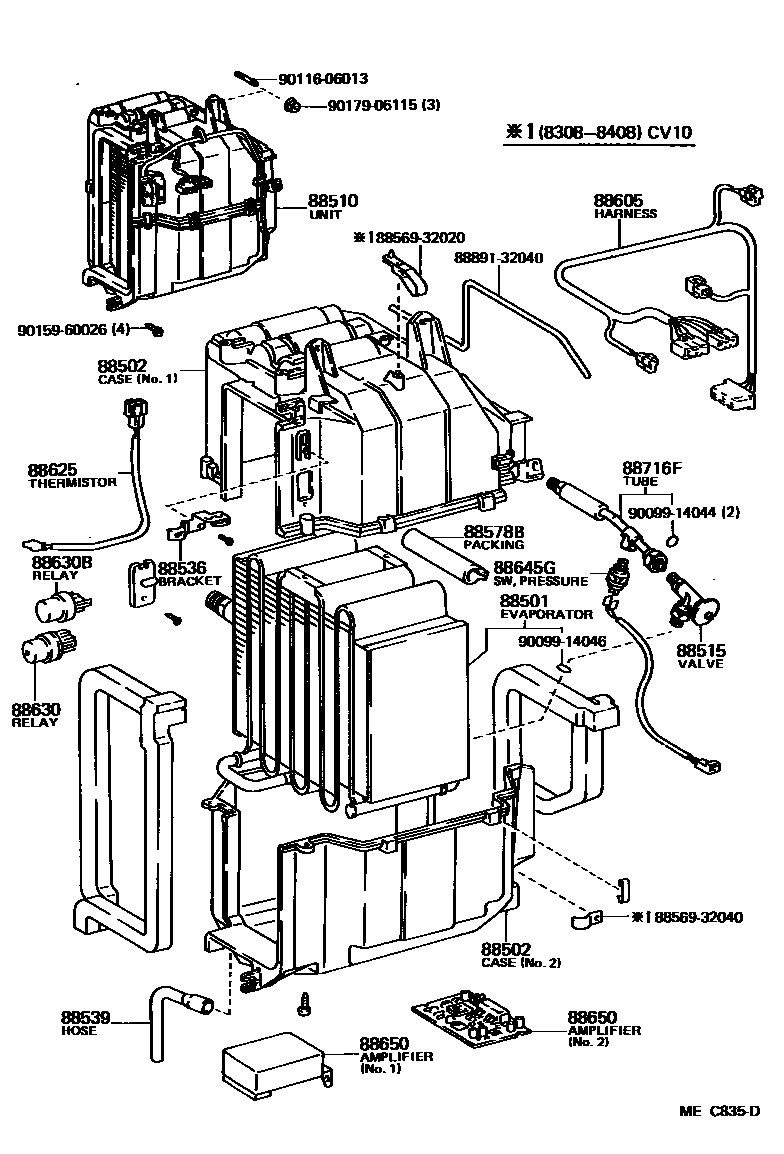

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-32020 · 88501-32021 |
| 88502 | Cooling device shell sub-assembly | 88502-32010 · 88502-32020 |
| 88510 | Cooler device assembly | 88510-32050 · 88510-32090 · 88510-32130 |
| 88515 | Cooler expansion valve | 88515-20050 |
| 88536 | Cooling device bracket No. 1 | 88688-32080 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-32020 |
| 88578B | Cooling unit seal No. 1 | 88578-30360 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-32080 · 88605-32130 · 88605-32230 |
| 88625 | Cooler No. 1 Thermistor | 88625-90A00 |
| 88630 | Cooler relay assembly | 90987-03001 |
| 88630B | Cooler relay assembly | 90987-02004 |
| 88645G | pressure switch | 88645-30250 |
| 88650 | Cooler stabilized amplifier assembly | 88650-32020 · 88650-32030 · 88650-32060 · 88650-32080 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-32140 |
