Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 7 PNC and OE references.

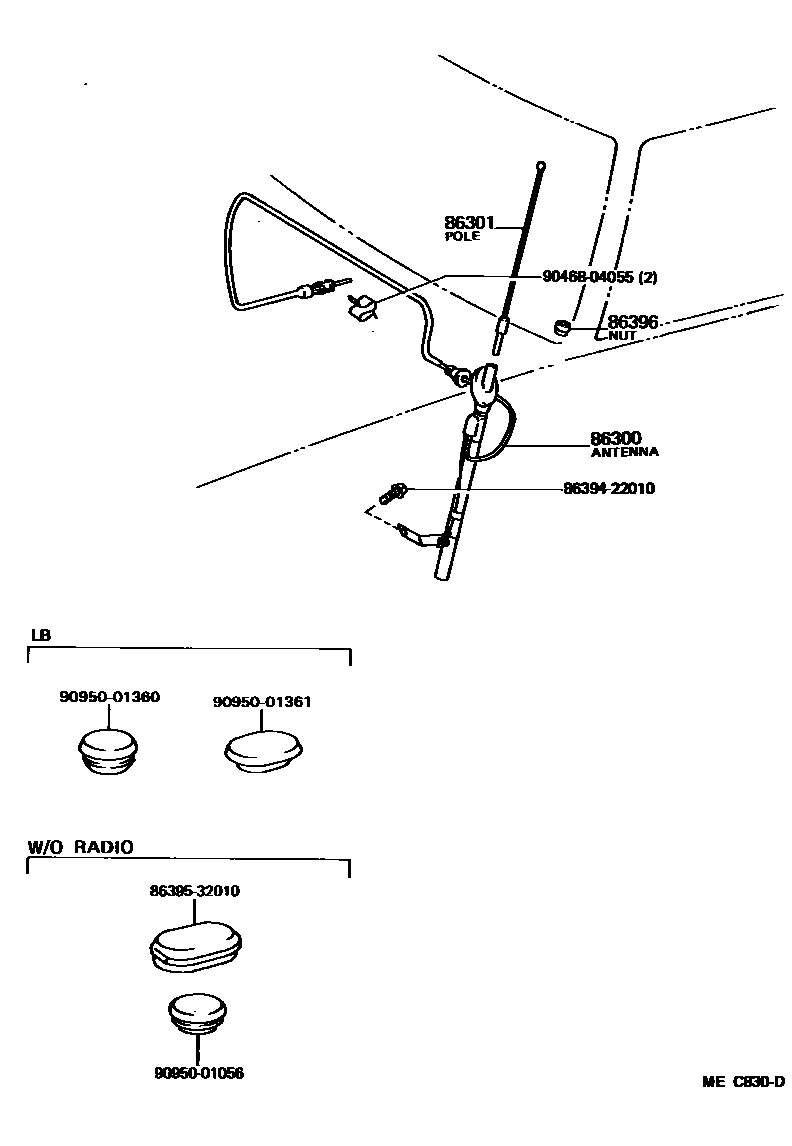

Toyota CAMRY antenna EPC diagram — MEC830D
antenna — MEC830D (198301 – 999999)

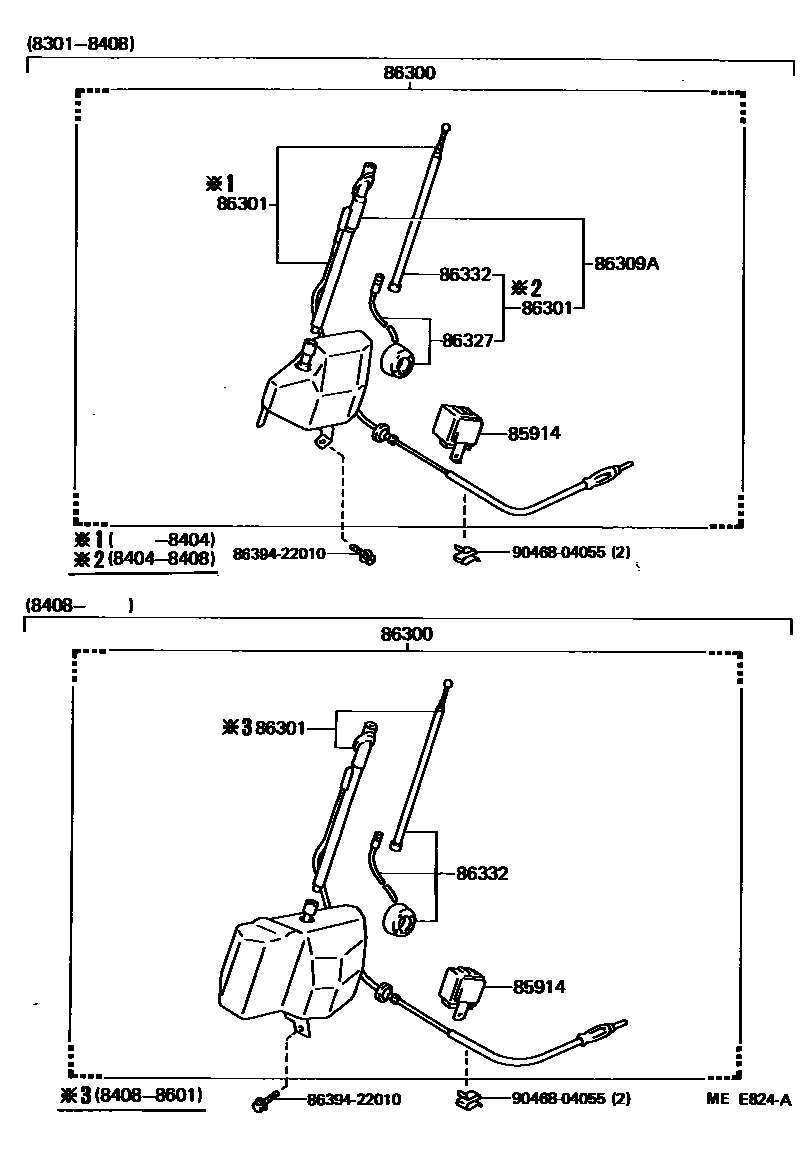

Toyota CAMRY antenna EPC diagram — MEE824A
antenna — MEE824A (198301 – 999999)

PNC and OE references

PNCPart nameOE numbers
85914Electric antenna control relay85914-14010 · 85914-14020
86300Antenna assembly with fixing parts86300-32040 · 86300-32060 · 86300-32070 · 86300-32080
86301Antenna sub-assembly86301-32060 · 86301-32070 · 86309-32011 · 86353-14330
86309AElectric antenna sub-assembly86309-32030
86327Cable with antenna drum86327-22210
86332antenna mast86332-14321 · 86353-32060
86396Antenna nut86396-16020
