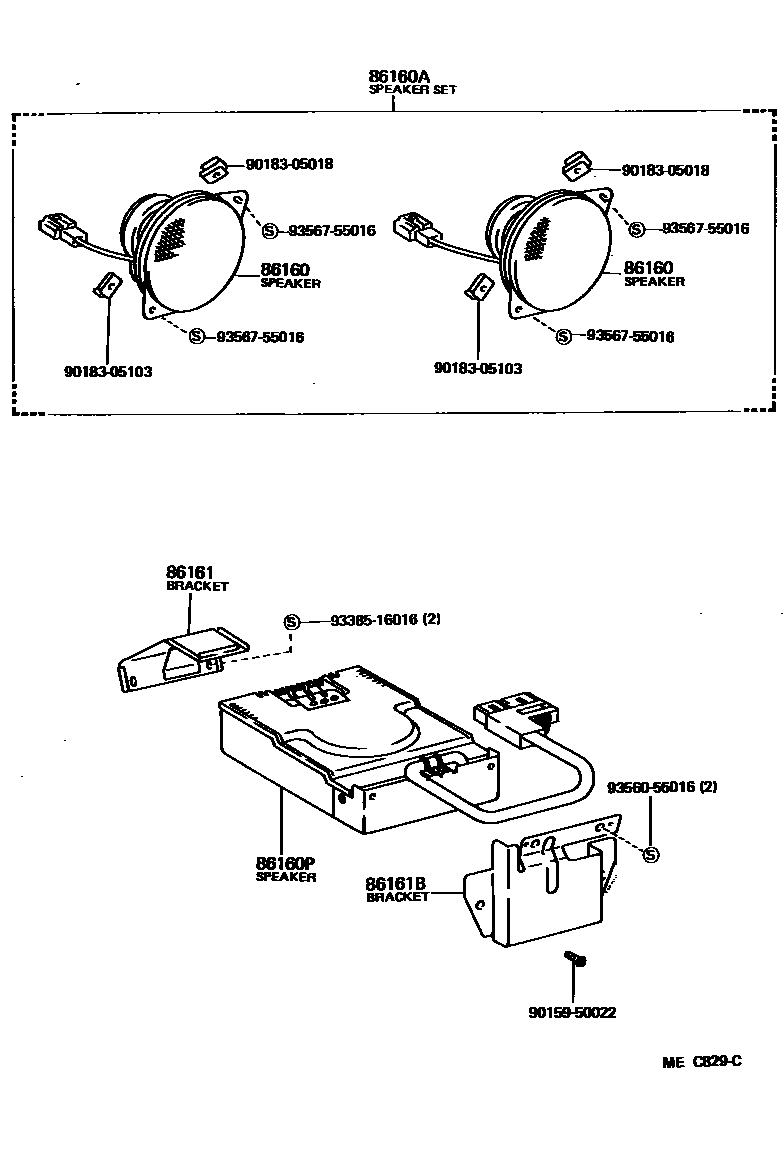

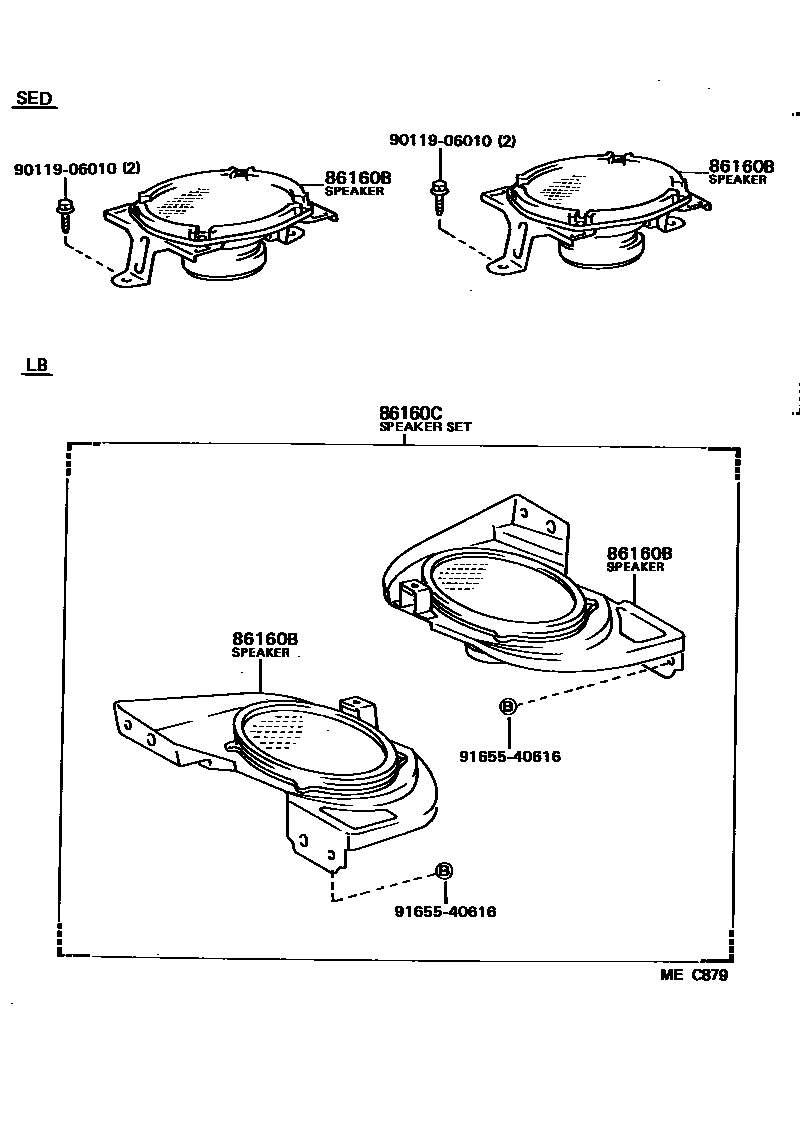

Toyota CAMRY 扬声器 — Figure 8602
Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-32070 · 86160-32080 |
| 86160A | front speaker assembly | 86160-39095 |
| 86160B | Rear speaker assembly | 86160-32010 · 86160-32050 · 86160-32060 |
| 86160C | rear speaker assembly | 86160-39105 |
| 86160P | No. 2 front speaker assembly | 86150-32030 · 86150-32050 |
| 86161 | Front speaker bracket No. 1 | 86219-32040 |
| 86161B | No. 2 front speaker bracket | 86219-32030 · 86219-32060 |
