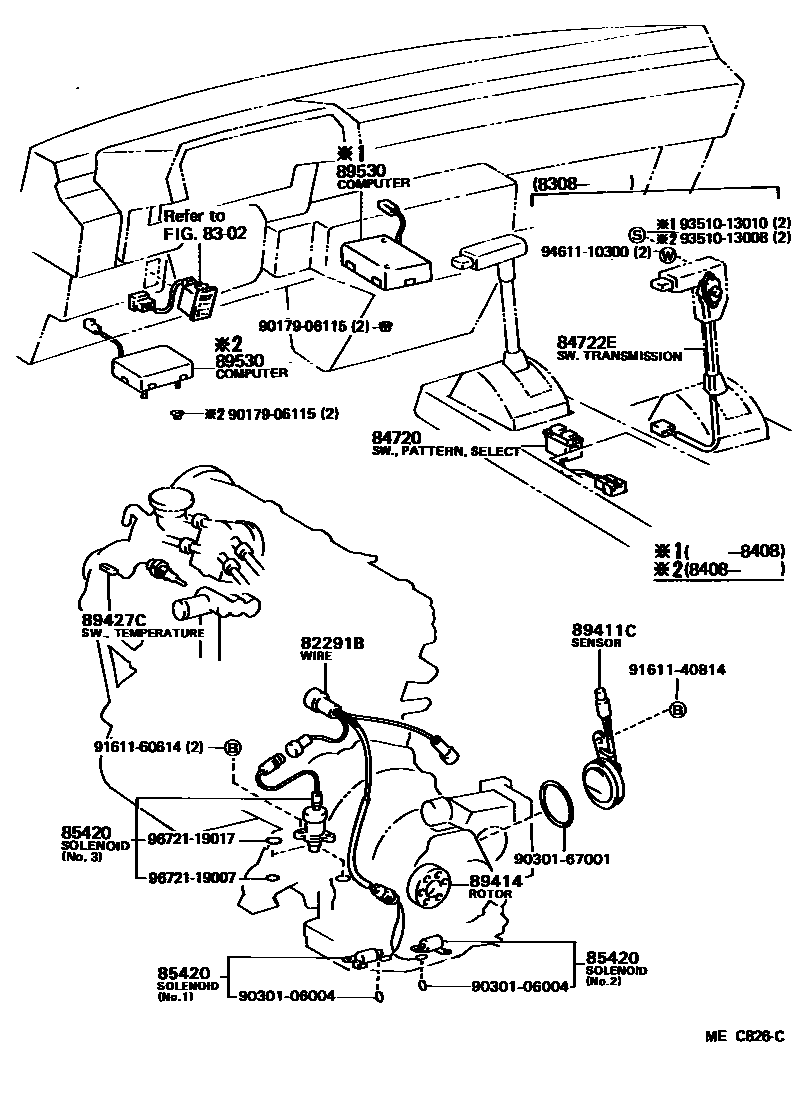

Toyota CAMRY 电子控制变速器 — Figure 8412
Toyota CAMRY EPC diagram 8412, 电子控制变速器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82291B | to solenoid valve harness (for transmission) | 82125-32010 · 82291-32010 |
| 84720 | Mode selection switch assembly | 84720-32010 · 84720-32020 |
| 84722E | transmission control switch | 84722-32010 |
| 85420 | Transmission solenoid valve assembly | 85420-32020 · 85420-32030 · 85420-32040 · 85420-32050 · 85420-32070 · 85420-32071 |
| 89411C | Speed sensor | 89411-20020 · 89411-32010 |
| 89414 | sensor rotor | 89414-32010 |
| 89427C | Temperature switch (for ECT) | 89427-32010 |
| 89530 | Transmission control ECU assembly | 89530-32030 · 89530-32031 · 89530-32140 · 89530-32160 |
