Toyota CAMRY 超速档和电子控制变速器 — Figure 8410

Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 2 PNC and OE references.

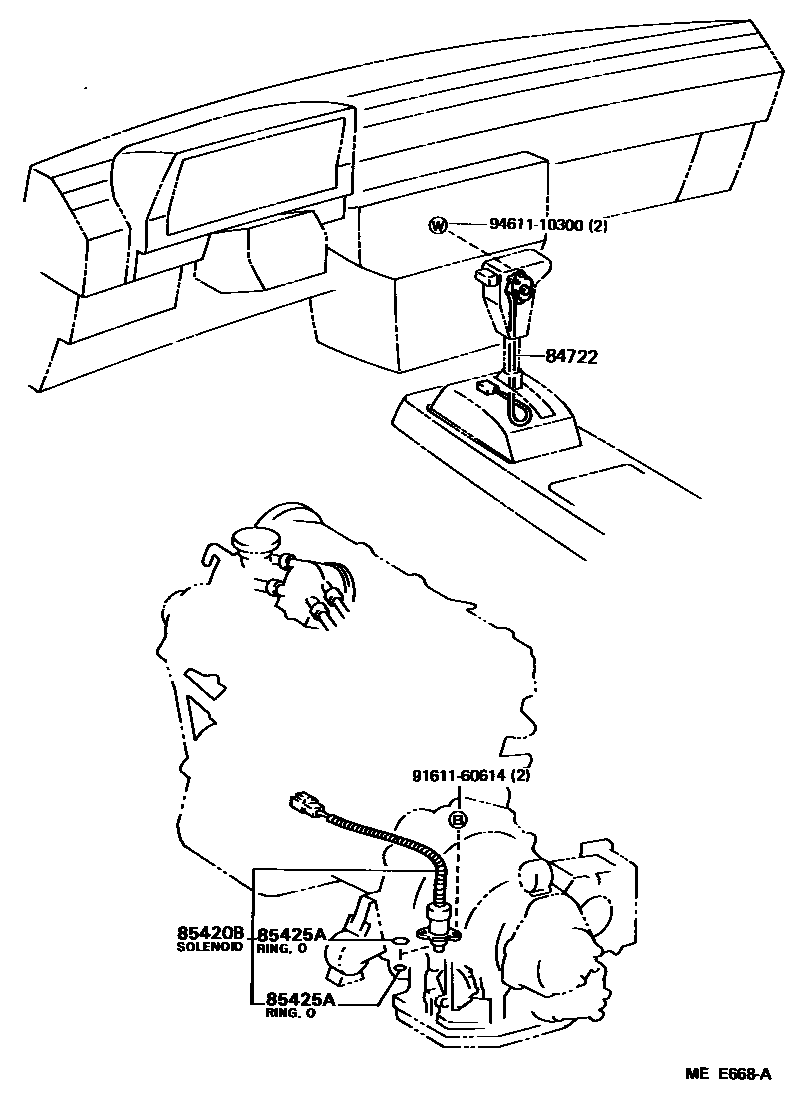

Toyota CAMRY 超速档和电子控制变速器 EPC diagram — MEE668A
超速档和电子控制变速器 — MEE668A (198410 – 999999)

PNC and OE references

PNCPart nameOE numbers
85420BTransmission solenoid valve assembly85420-32080 · 85420-32081
85425AO-ring (for overspeed solenoid valve)90301-06005 · 96721-19007 · 96721-19017
