Toyota CAMRY 仪表 — Figure 8301

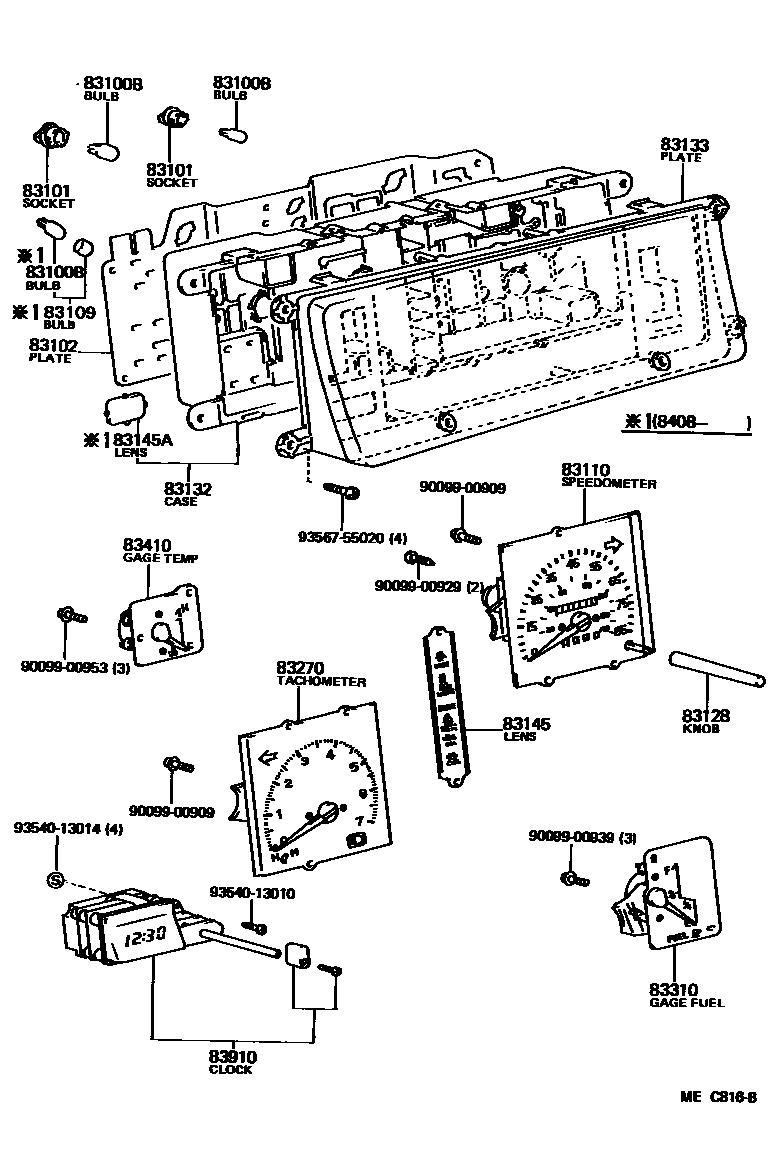

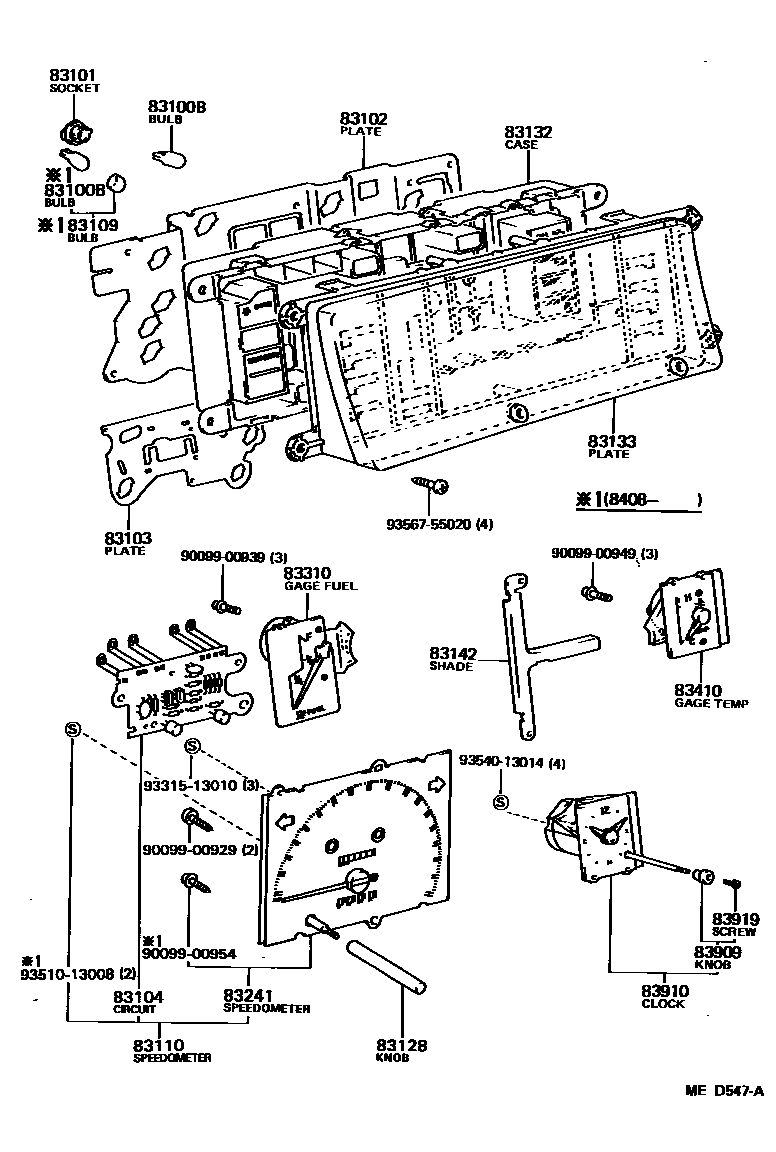

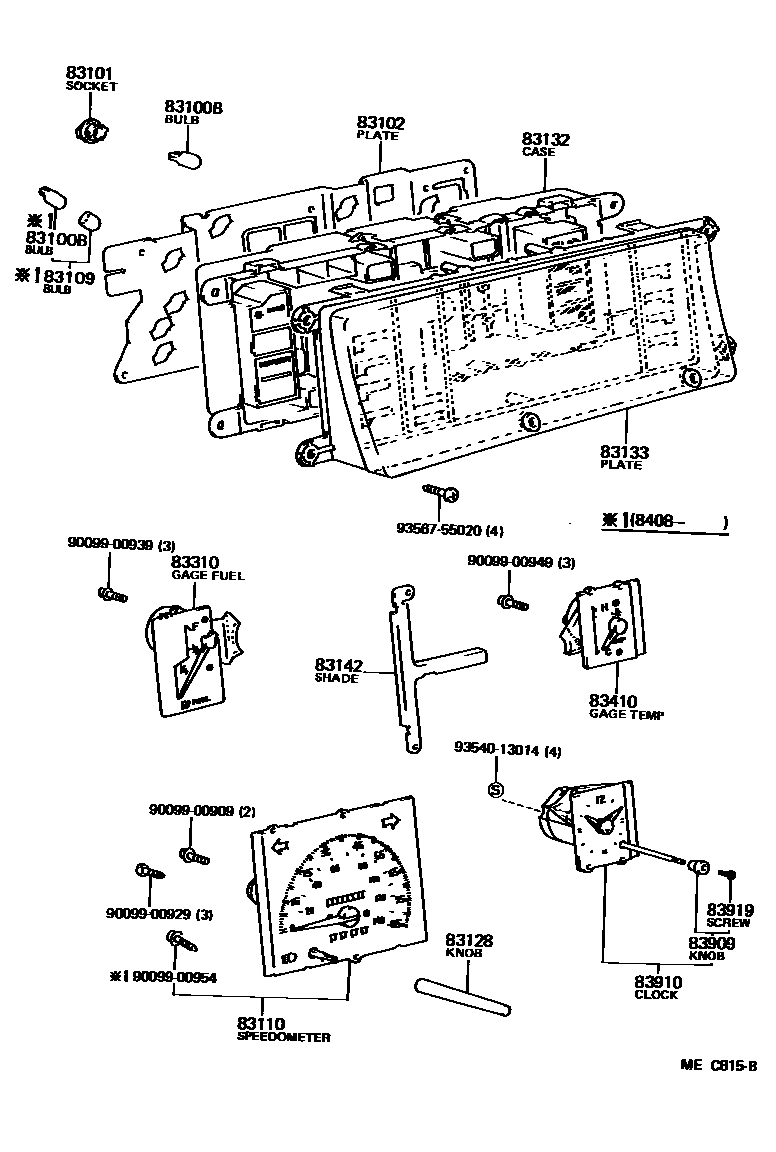

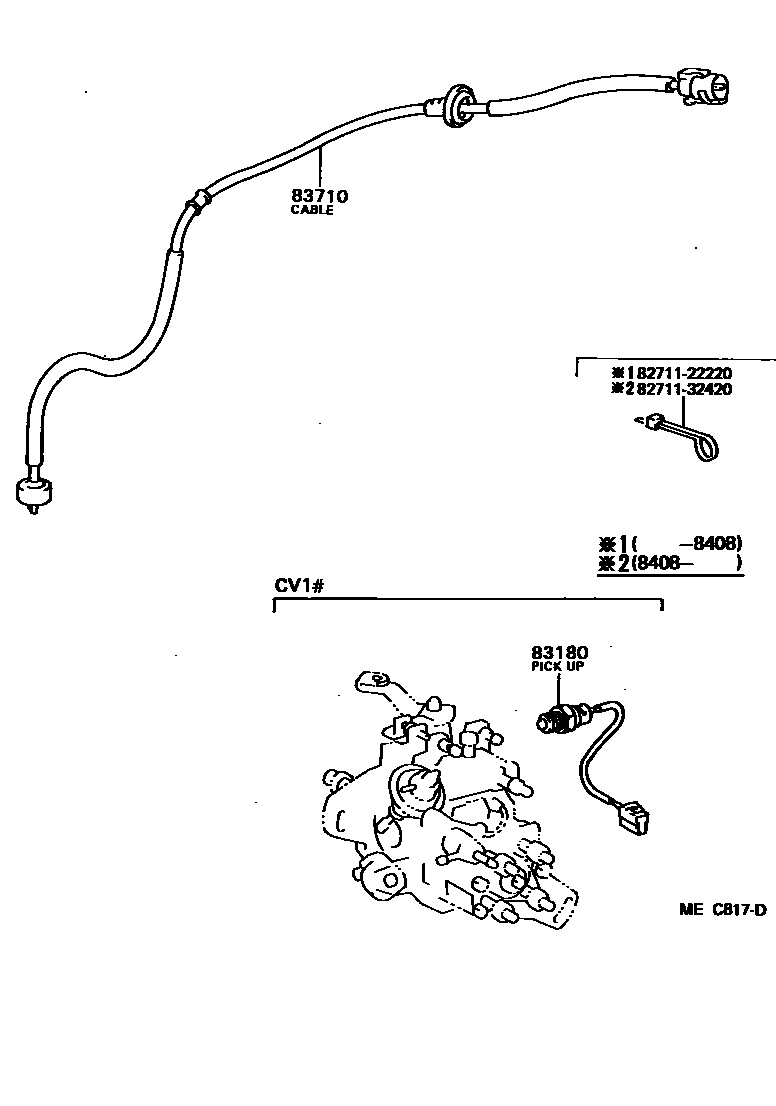

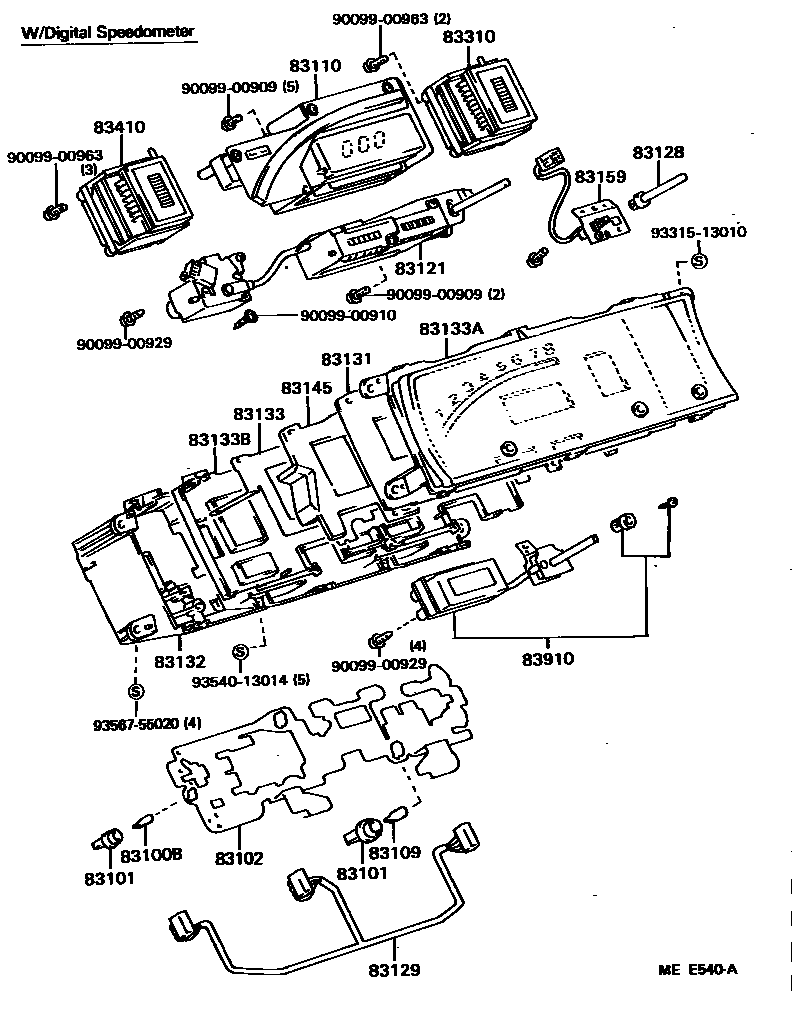

Toyota CAMRY EPC diagram 8301, 仪表, with 5 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 90981-11018 · 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-12020 · 83101-14030 · 83101-14040 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83247-32140 · 83247-32231 · 83247-32251 · 83247-32330 · 83247-32650 · 83247-32690 · 83247-32830 |
| 83103 | Combined instrument No. 2 circuit board sub-assembly | 83247-32570 · 83247-32630 |
| 83104 | Combined instrument No. 3 circuit board sub-assembly | 83247-32510 |
| 83109 | Combined instrument bulb No. 2 | 83109-24030 · 83109-24040 |
| 83110 | Speedometer assembly | 83110-32090 · 83110-32091 · 83110-32100 · 83110-32110 · 83110-32111 · 83110-32120 · 83110-32141 · 83110-32170 · 83110-32180 · 83110-32220 · 83110-32230 · 83110-32240 · 83110-32250 · 83110-32251 · 83110-32310 · 83110-32370 · 83110-32371 |
| 83121 | total counter | 83121-32050 · 83121-32070 |
| 83128 | trip odometer handle | 83128-32010 · 83128-32070 |
| 83129 | Instrument wiring harness | 83129-32010 |
| 83131 | Instrument panel No. 1 | 83131-32070 · 83131-32090 · 83131-32190 |
| 83132 | Instrument cluster housing | 83132-32190 · 83132-32210 · 83132-32290 · 83132-32530 · 83132-32630 · 83132-32690 · 83132-32810 |
| 83133 | Combined instrument panel No. 1 | 83133-32110 · 83133-32130 · 83133-32250 |
| 83133A | Combined instrument panel No. 2 | 83133-32210 |
| 83133B | Combined instrument panel No. 3 | 83133-32190 |
| 83142 | Combined instrument lamp shade | 83142-32010 |
| 83145 | Instrument No. 1 lampshade | 83145-32090 · 83145-32290 |
| 83145A | Instrument No. 2 lampshade | 83145-30790 |
| 83159 | No.1 instrument switch | 83159-32030 |
| 83180 | Speed detector assembly | 83180-32010 |
| 83241 | Speedometer sub-assembly | 83241-32070 · 83241-32150 |
| 83270 | Engine tachometer assembly | 83242-32070 · 83242-32090 · 83242-32330 · 83242-32350 |
| 83310 | Fuel gauge assembly | 83243-32011 · 83243-32111 · 83243-32170 · 83243-32270 · 83310-32010 |
| 83410 | Water temperature meter assembly | 83244-32010 · 83244-32110 · 83244-32210 · 83244-32390 · 83410-32010 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-32070 · 83710-32071 |
| 83909 | clock button | 83909-14012 |
| 83910 | clock assembly | 83910-32010 · 83910-32030 · 83910-32040 · 83910-32050 |
| 83919 | clock screw | 83919-14012 |
