Toyota CAMRY 后组合灯 — Figure 8111

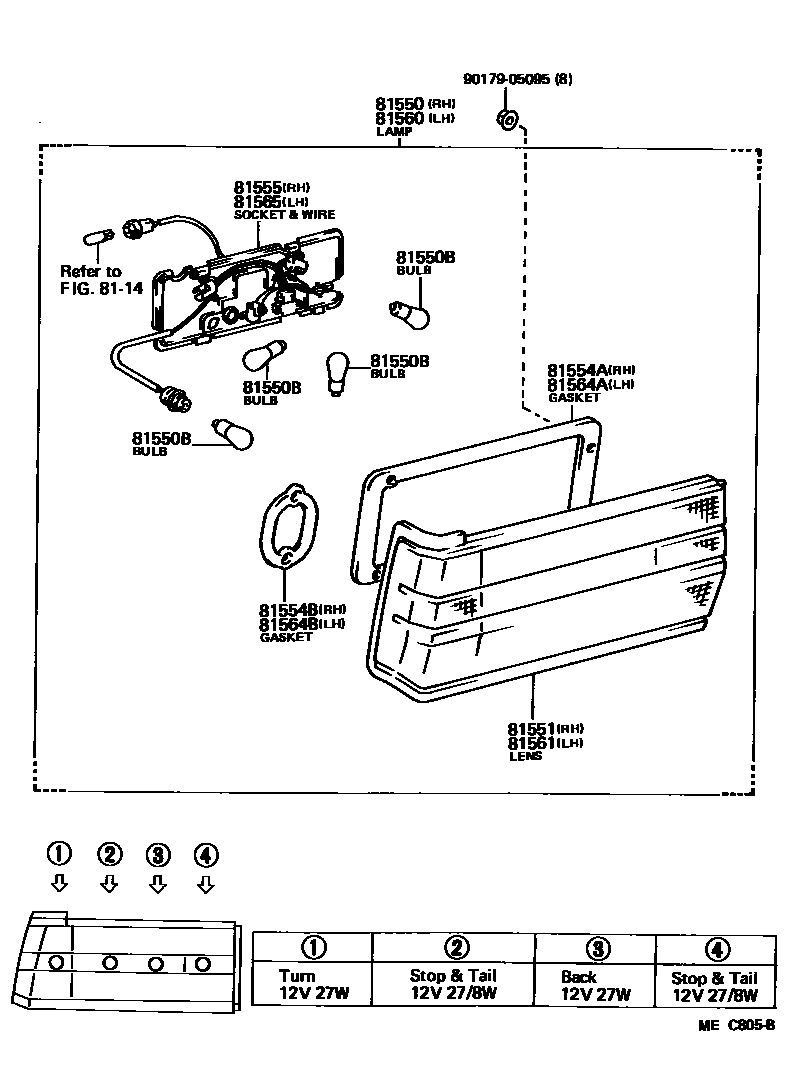

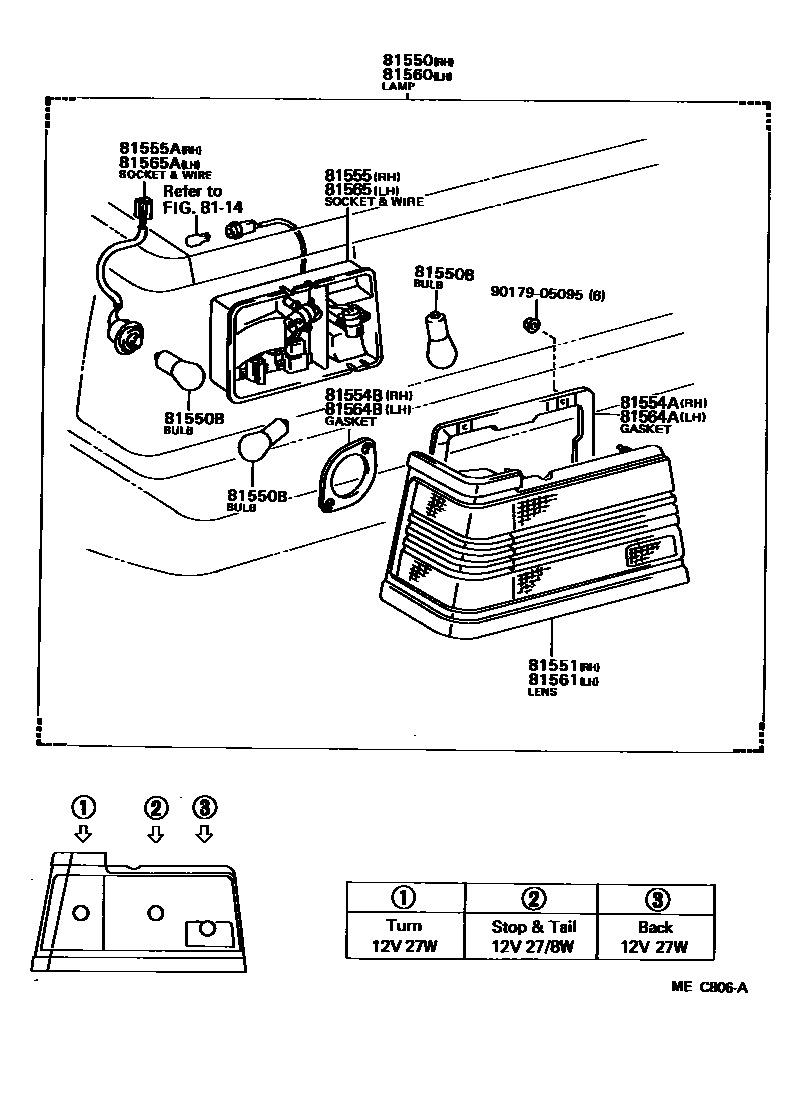

Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-32120 · 81550-39755 · 81550-80226 · 81550-80229 |
| 81550B | Bulb (for rear combination lights) | 99132-11270 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-32080 · 81551-32081 · 81551-32120 · 81551-32121 |
| 81554A | No. 1 right rear combination lamp body gasket | 81552-32010 · 81554-32090 · 81554-32100 |
| 81554B | No. 2 right rear combination lamp body gasket | 81552-32090 · 81552-32100 · 81554-32010 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-32080 · 81555-32081 · 81555-32120 · 81555-32121 |
| 81555A | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81558-32080 |
| 81560 | Left rear combination light assembly | 81560-32120 · 81560-39715 · 81560-80231 · 81560-80234 |
| 81561 | Left rear combination lamp shade | 81561-32080 · 81561-32081 · 81561-32120 · 81561-32121 |
| 81564A | No. 1 left rear combination light lamp body gasket | 81552-32010 · 81554-32090 · 81554-32100 |
| 81564B | No. 2 left rear combination lamp body gasket | 81552-32090 · 81552-32100 · 81554-32010 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-32080 · 81565-32081 · 81565-32120 · 81565-32121 |
| 81565A | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81558-32080 |
