Toyota CAMRY 前示宽灯 — Figure 8104

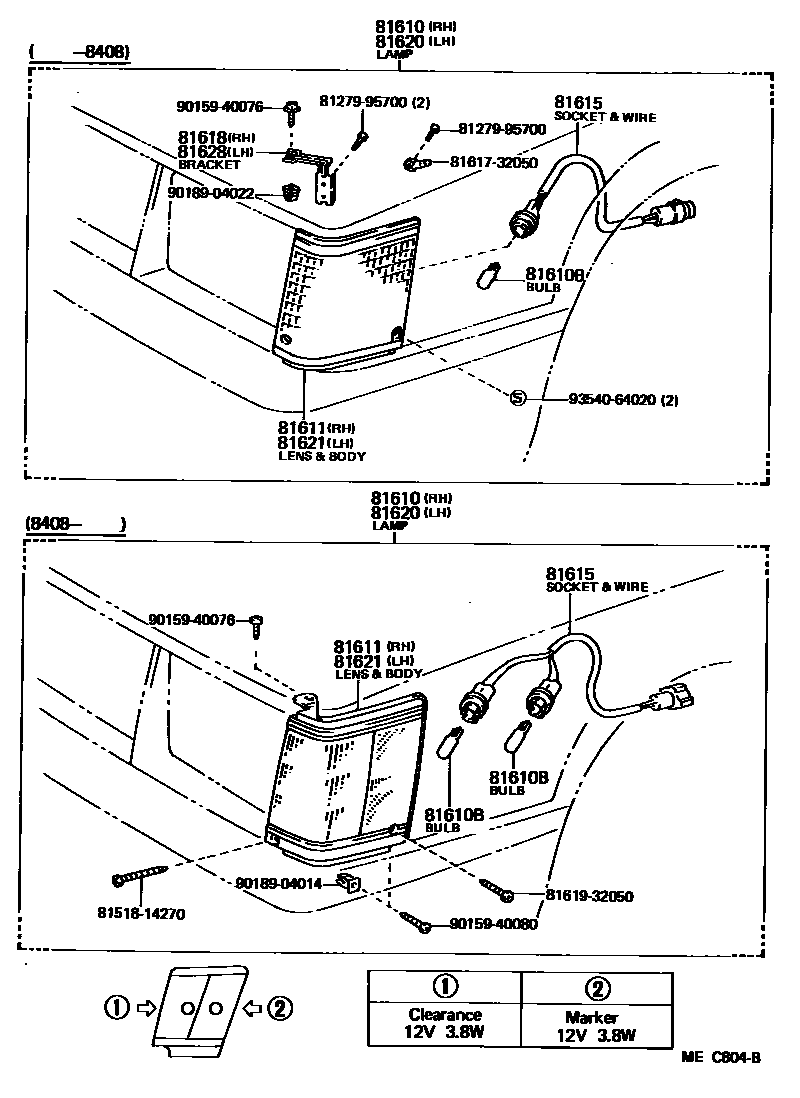

Toyota CAMRY EPC diagram 8104, 前示宽灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-39735 · 81610-39736 |
| 81610B | Bulbs (for parking lights and side lights) | 90981-11020 |
| 81611 | Right parking light and width indicator light cover | 81611-32050 · 81611-32051 |
| 81615 | Width light lamp holder and wiring harness | 81615-32050 · 81615-32051 |
| 81618 | Right parking light and width indicator bracket | 81618-32050 |
| 81620 | Left parking light and width indicator light assembly | 81620-39735 · 81620-39736 |
| 81621 | Left parking light and width indicator light cover | 81621-32050 · 81621-32051 |
| 81628 | Left parking light and width indicator bracket | 81628-32050 |
