Toyota CAMRY 扶手和遮阳板 — Figure 7401

Toyota CAMRY EPC diagram 7401, 扶手和遮阳板, with 3 images and 3 PNC and OE references.

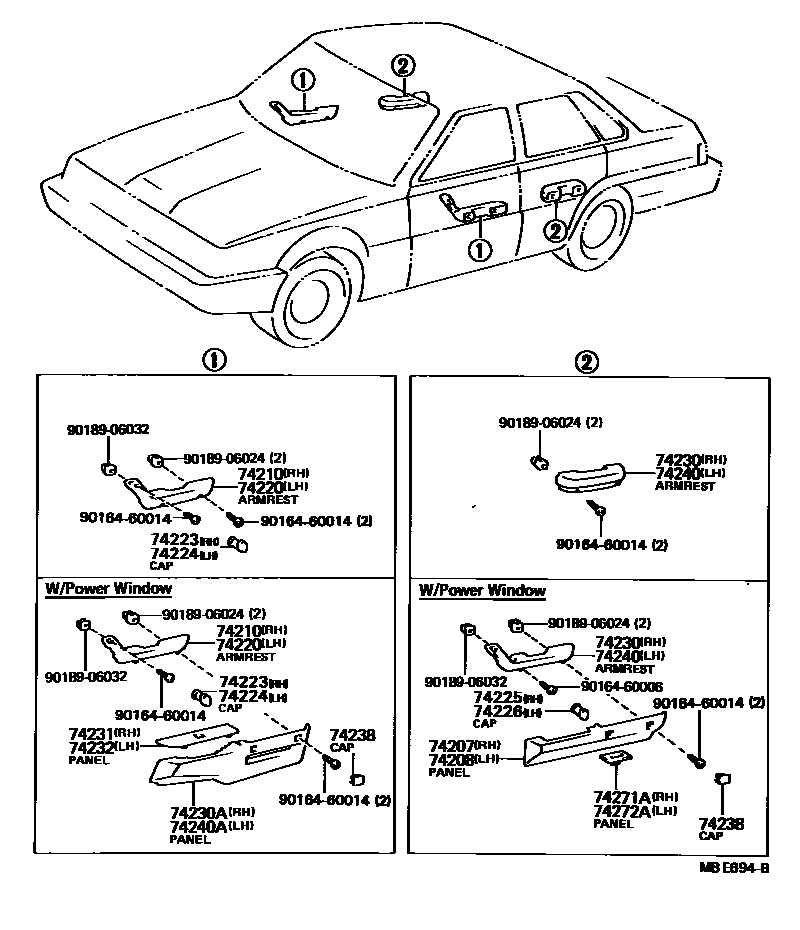

Toyota CAMRY 扶手和遮阳板 EPC diagram — MBE694B
扶手和遮阳板 — MBE694B (198301 – 198408)

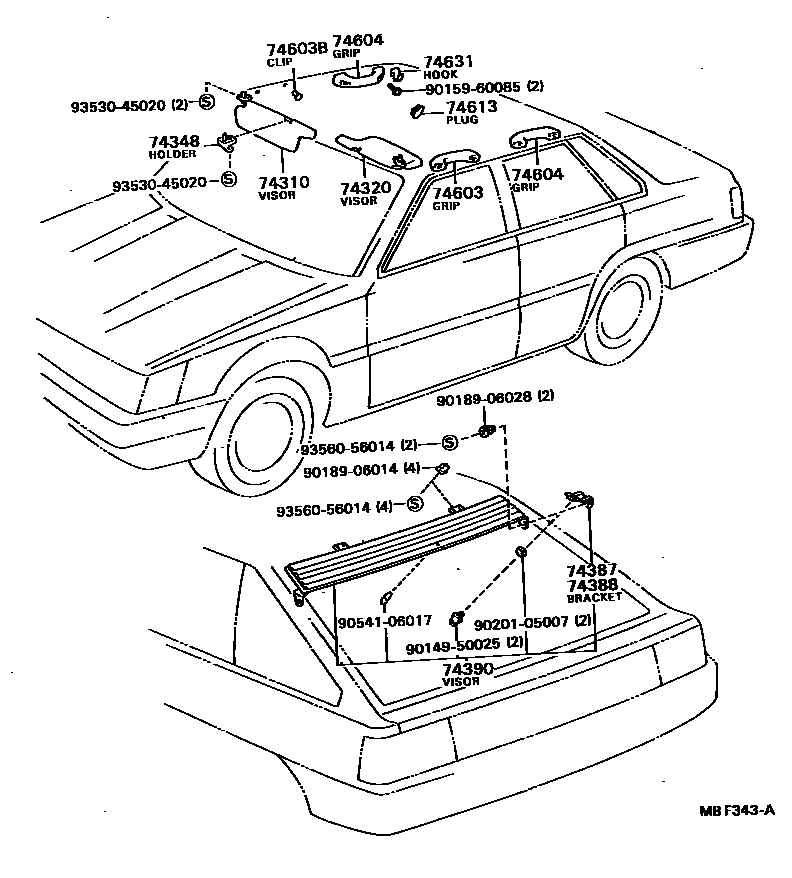

Toyota CAMRY 扶手和遮阳板 EPC diagram — MBF343A
扶手和遮阳板 — MBF343A (198301 – 999999)

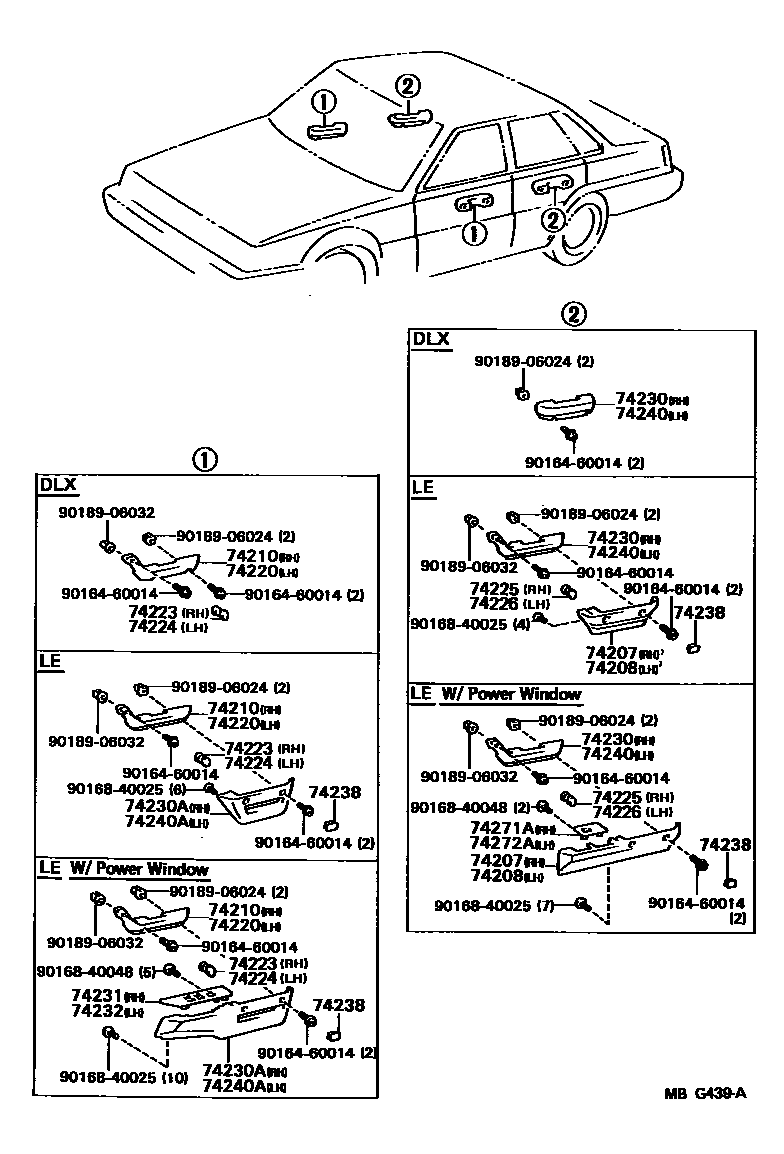

Toyota CAMRY 扶手和遮阳板 EPC diagram — MBG439A
扶手和遮阳板 — MBG439A (198408 – 999999)

PNC and OE references

PNCPart nameOE numbers
74387Rear sun visor No. 1 bracket74387-32020
74388Rear sun visor No. 2 bracket74388-32020
74390Rear inner sun visor assembly74390-32020
