Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

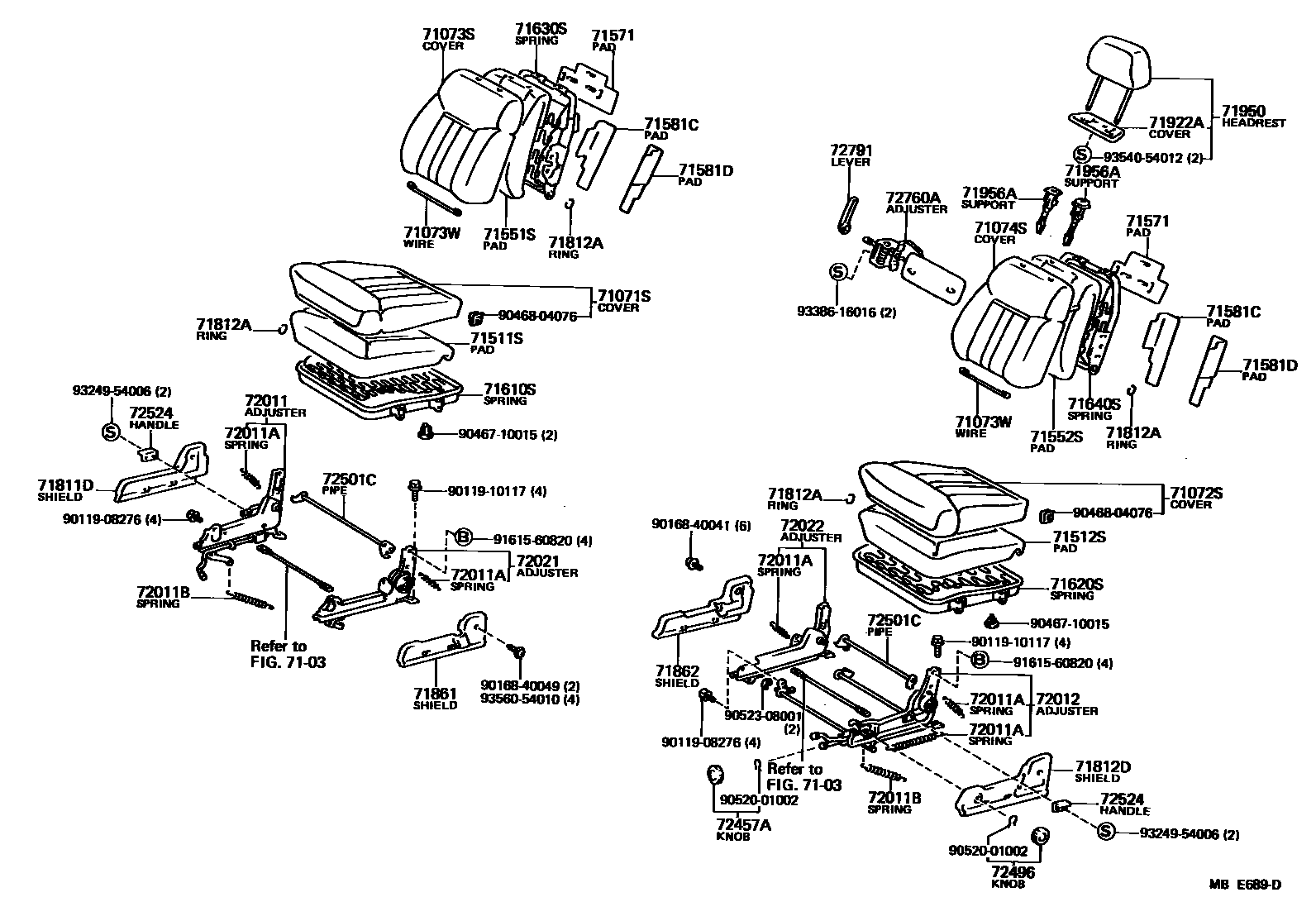

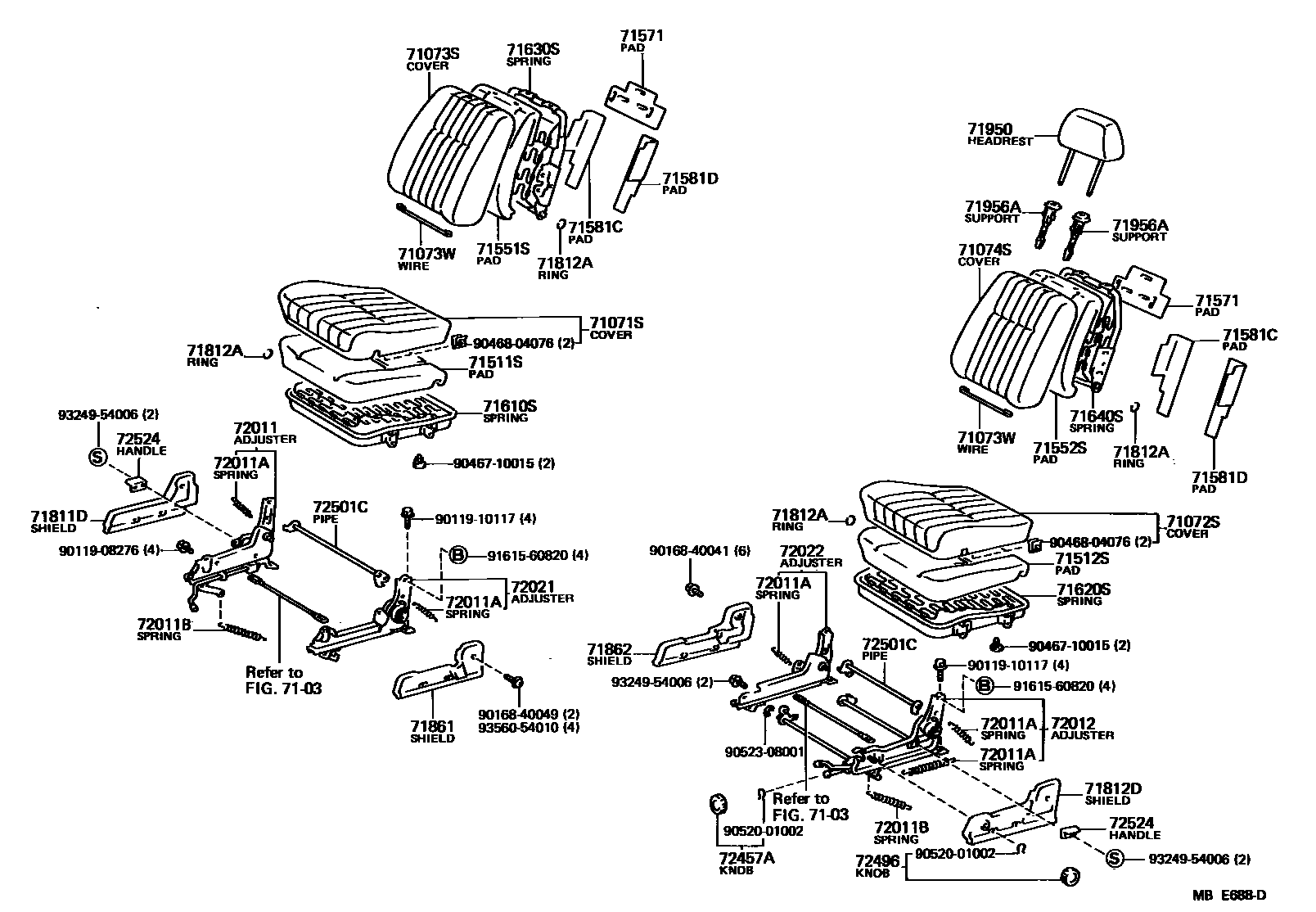

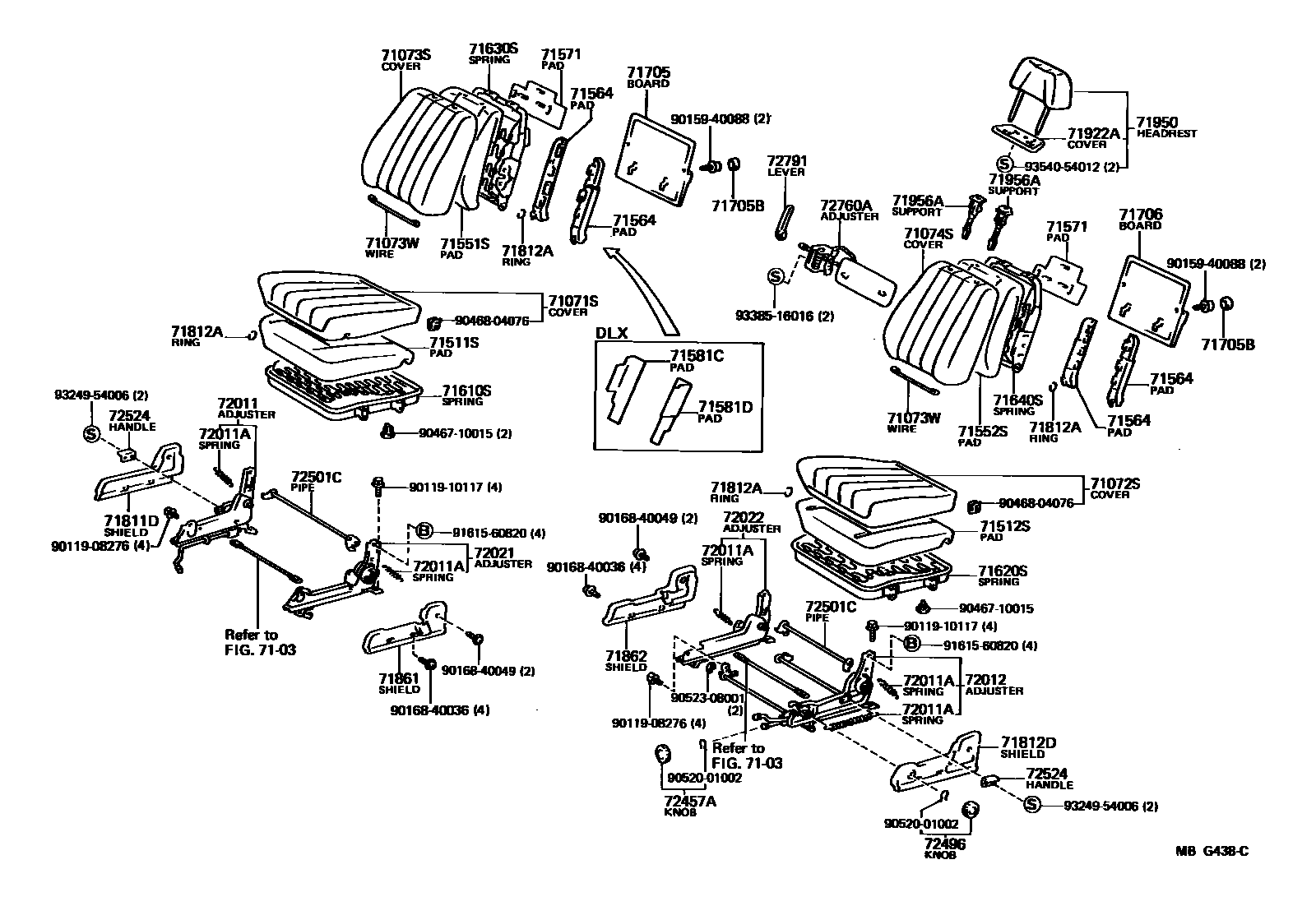

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71073W | Front seat back cover wire | 90580-20127 · 90580-29011 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-32030 · 71511-32040 · 71511-32060 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-32030 · 71511-32040 · 71511-32060 |
| 71551S | Front right seat back cushion (for split seats) | 71551-32040 · 71551-32050 · 71551-32070 |
| 71552S | Front left seat back cushion (for split seats) | 71551-32040 · 71551-32050 · 71551-32070 |
| 71564 | Front seat backrest side cushions | 71563-32020 · 71564-32020 |
| 71571 | Front A seat back silencer | 71571-24010 |
| 71581C | Front C seat back corner cushions | 71583-32010 |
| 71581D | Front D seat back corner cushions | 71584-32010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-32010 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-32020 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-32010 · 71630-32040 · 71630-32060 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-32010 · 71630-32040 · 71640-32010 · 71640-32020 |
| 71812A | Small clamp ring (for front seats) | 90468-18071 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-32010 · 72011-32030 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-14039 · 90506-35001 |
| 72011B | Tension spring (for front seat outer adjusters) | 90506-18035 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-32020 · 72012-32050 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-32010 · 72021-32040 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-32020 · 72022-32050 |
| 72501C | Seat back recline adjuster connecting pipe sub-assembly | 72501-32010 |
| 72760A | Lumbar support adjuster assembly | 72760-32010 |
