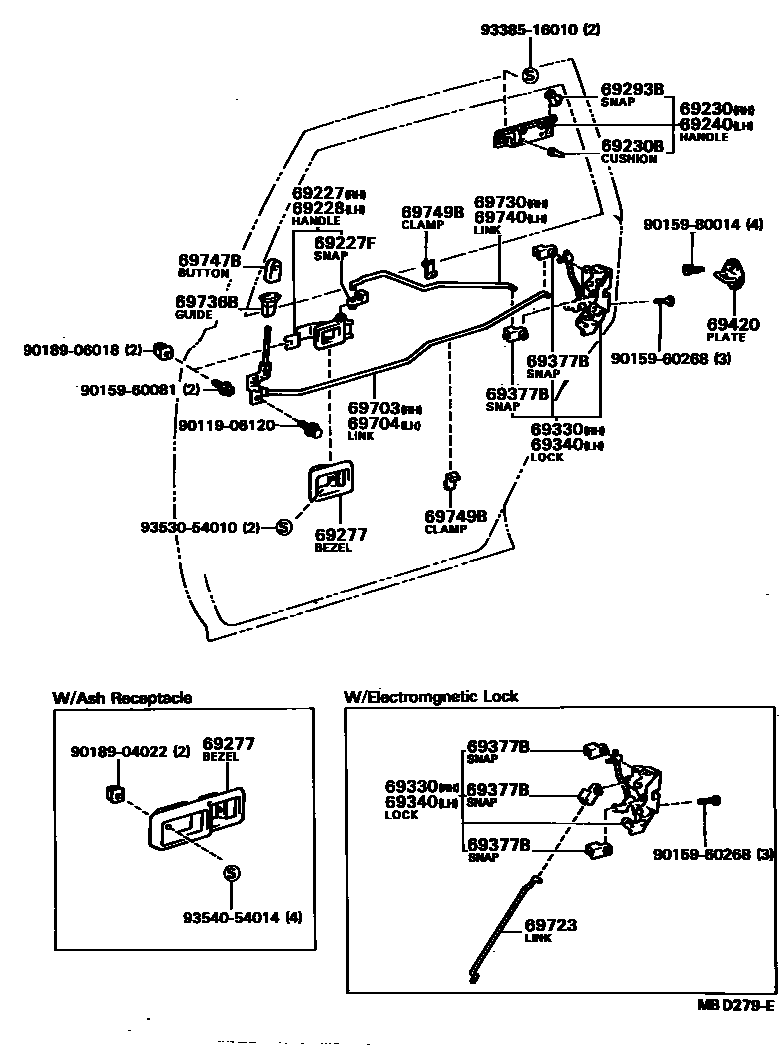

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69227 | Right rear door inner handle | 69205-30030 |
| 69227F | Buckle (for rear door inner handle) | 69759-14050 · 69759-24010 · 69759-24020 · 69759-24070 |
| 69228 | Left rear door inner handle | 69206-30020 |
| 69230 | Right rear door outer handle assembly | 69210-32010 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-03021 |
| 69240 | Left rear door outer handle assembly | 69220-32010 |
| 69293B | Rear door outer handle buckle | 69293-22010 · 69293-22020 |
| 69330 | Right rear door door lock assembly | 69330-32030 · 69330-32040 |
| 69340 | Left rear door lock assembly | 69340-32030 · 69340-32040 |
| 69377B | Rear door lock lever buckle | 69759-24050 · 69759-24060 |
| 69420 | Rear door lock plate assembly | 69410-14050 · 69410-87001 |
| 69703 | Right rear door lock control link sub-assembly | 69770-32010 · 69770-32020 |
| 69704 | Left rear door lock control link sub-assembly | 69780-32010 · 69780-32020 |
| 69723 | Rear door lock actuator linkage | 69723-32010 |
| 69730 | Right rear door opening control linkage assembly | 69713-32010 |
| 69736B | Rear door lock link guide block | 69736-12030 · 69736-22021 |
| 69740 | Left rear door opening control linkage assembly | 69714-32010 |
| 69749B | Rear door lock link clamp | 69749-12010 |
