Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 3 images and 26 PNC and OE references.

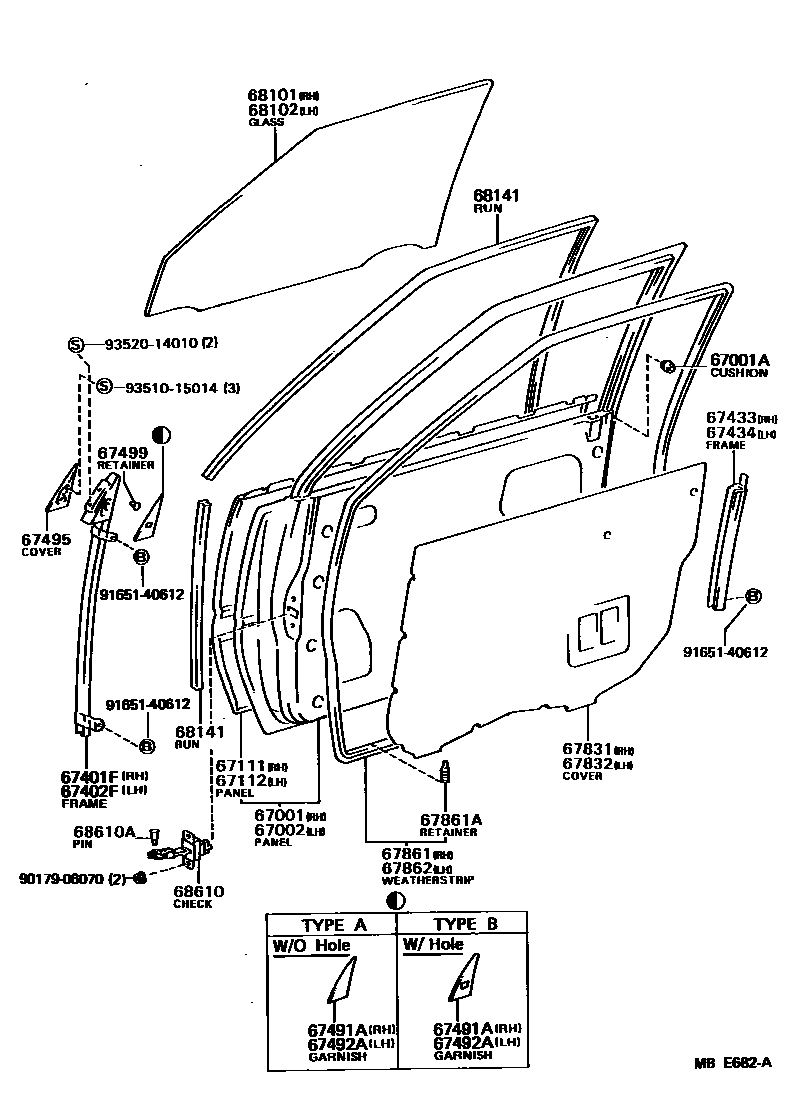

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBE682A
前门板和前门玻璃 — MBE682A (198301 – 999999)

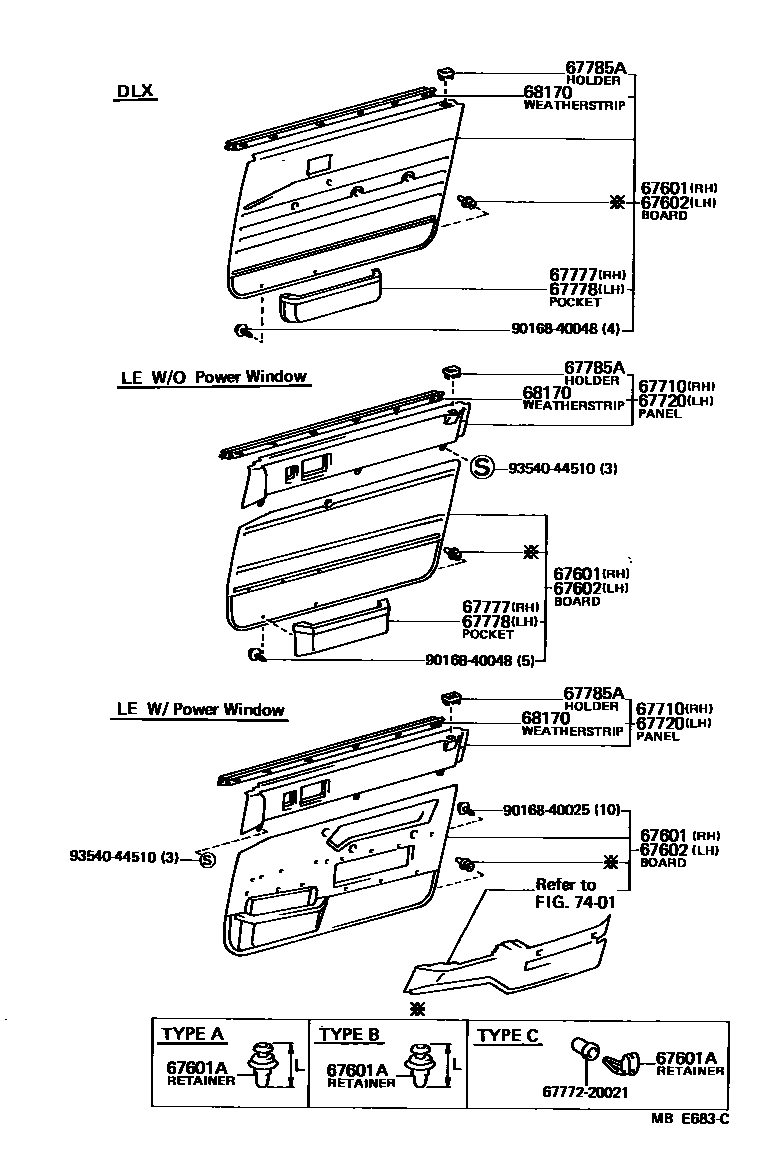

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBE683C
前门板和前门玻璃 — MBE683C (198301 – 198408)

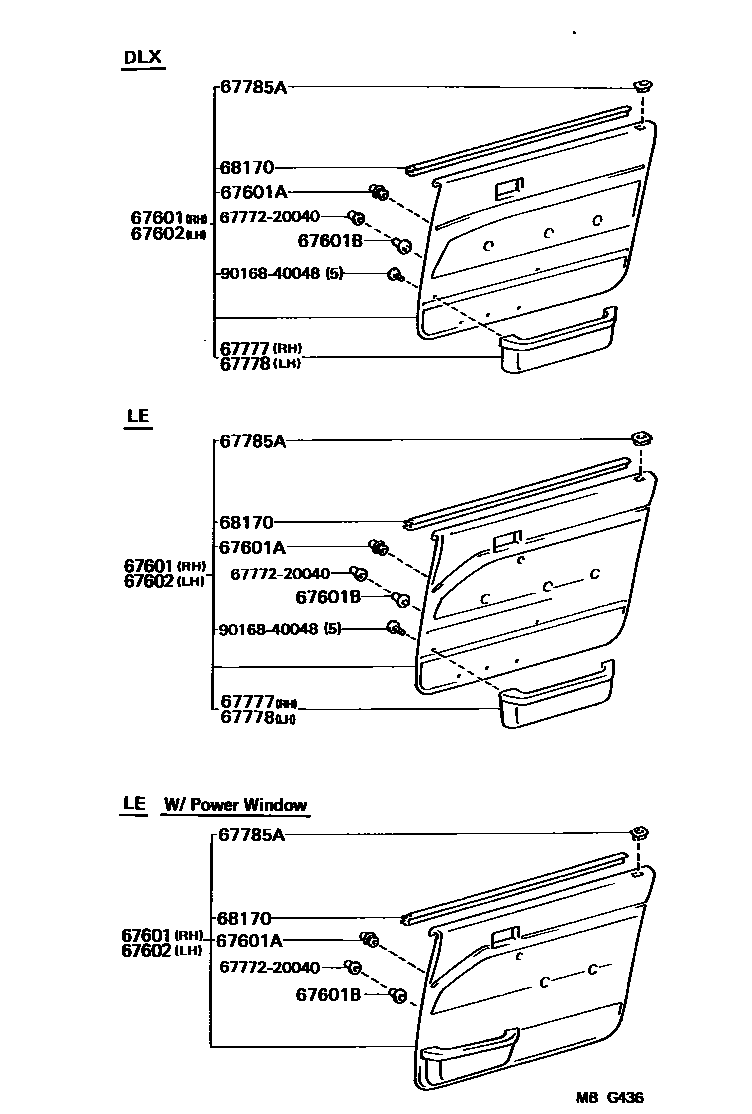

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBG436
前门板和前门玻璃 — MBG436 (198408 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-32040 · 67001-32090
67001AFront door panel cushion90541-09006
67002Left front door panel sub-assembly67002-32040 · 67002-32090
67111Outer right front door panel67111-32020
67112Outer left front door panel67112-32020
67401FRight front door front lower door frame sub-assembly67401-32020 · 67401-32021 · 67401-32030 · 67401-32031
67402FLeft front door front lower door frame sub-assembly67402-32020 · 67402-32021 · 67402-32030 · 67402-32031
67433Right front door window rear lower frame67403-32010 · 67433-32010
67434Left front door window rear lower frame67404-32010 · 67434-32010
67491ARight front door lower door frame bracket decorative strip67491-32020 · 67491-32030 · 67491-32040 · 67491-32050
67492ALeft front door lower door frame bracket decorative strip67492-32020 · 67492-32030 · 67492-32040 · 67492-32050
67495Front door lower door frame upper cover67495-32010 · 67495-32011 · 67495-32020 · 67495-32021
67499Front door lower door frame bracket trim strip fixing67499-30010
67601AFixings (for front door trim)67771-12010 · 67771-14010 · 67771-22010
67785ADoor lock button collar fastener (for front doors)69751-20040
67831Right front door access hole cover67831-32020
67832Left front door access hole cover67832-32020
67861Right front door seal67861-32010 · 67861-32030 · 67861-32050 · 67861-32070
67861AFixing piece (for front door sealing strip)67868-30040
67862Left front door seal67862-32010 · 67862-32030 · 67862-32050 · 67862-32070
68101Right front door glass sub-assembly68111-32030 · 68111-32040 · 68111-32070 · 68111-32080
68102Left front door glass sub-assembly68112-32030 · 68112-32040 · 68112-32070 · 68112-32080
68141Front door glass lift chute68141-32020 · 68141-32040 · 68141-32050 · 68141-32060 · 68143-14020 · 68143-32020 · 68143-32030
68170Front door glass inner sealing strip assembly68170-32020 · 68170-32030 · 68220-32020 · 68220-32040
68610Front door opening limiter assembly68610-32010 · 68610-32030
68610APin (for front door opening limiter)68617-12010 · 68617-22010 · 68617-90A00
