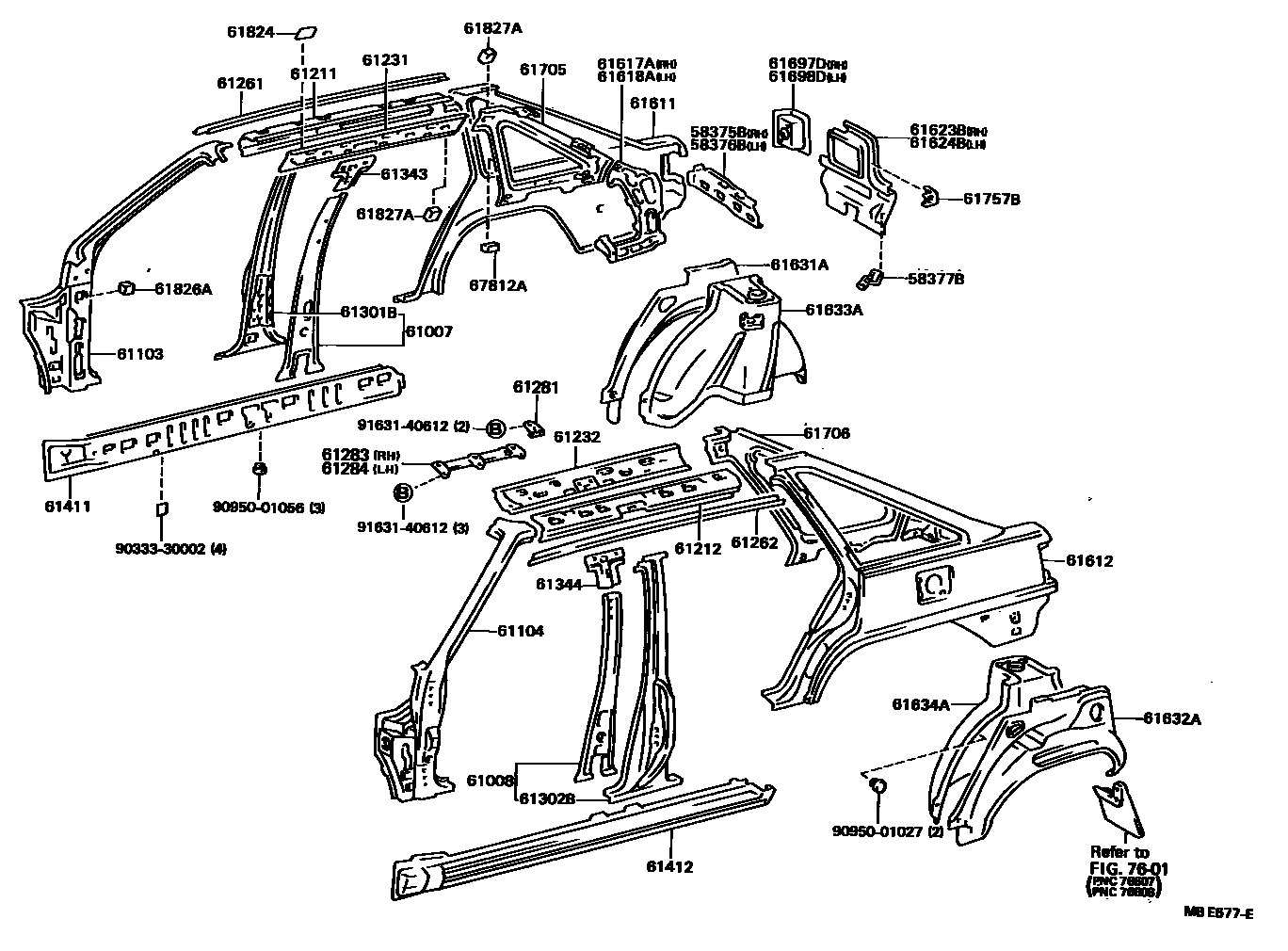

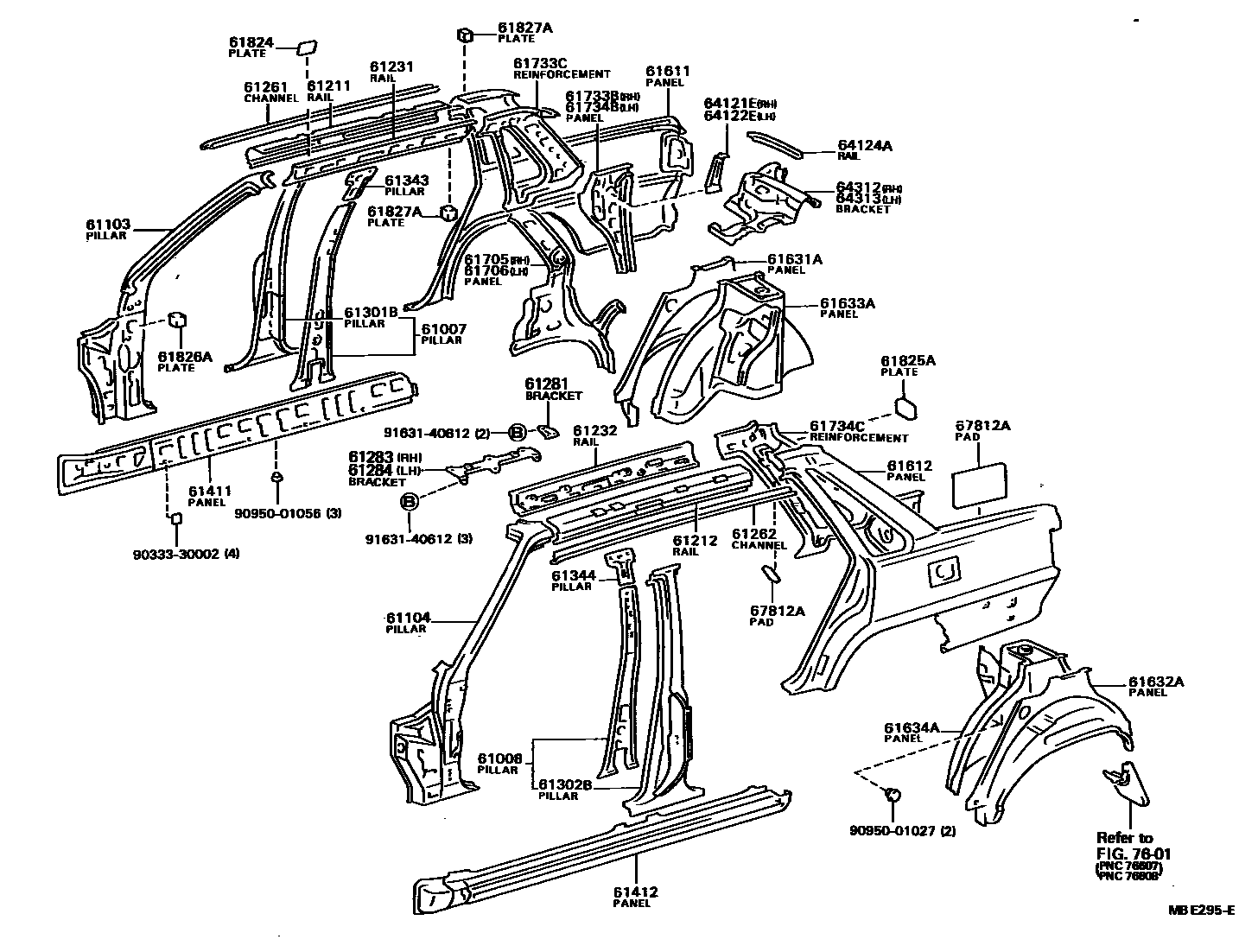

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58375B | Right body lower back panel reinforcement | 58375-32020 |
| 58376B | Left body lower back panel reinforcement | 58376-32010 |
| 58377B | Rear lower trim panel fixings | 58377-32020 |
| 61007 | Right center pillar sub-assembly | 61007-32900 · 61007-32901 · 61007-32903 · 61007-32904 |
| 61008 | Left center pillar sub-assembly | 61008-32900 · 61008-32901 · 61008-32903 · 61008-32904 |
| 61103 | Right body front pillar sub-assembly | 61021-32070 · 61021-32071 · 61021-32150 · 61021-32151 |
| 61104 | Left body front pillar sub-assembly | 61022-32070 · 61022-32091 · 61022-32160 · 61022-32181 |
| 61211 | Roof right outer longitudinal beam | 61211-32010 · 61211-32020 |
| 61212 | Roof left outer longitudinal beam | 61212-32010 · 61212-32020 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-32040 · 61231-32080 |
| 61232 | Roof left inner longitudinal beam | 61232-32040 · 61232-32080 |
| 61261 | Drainage channel on the right side of the roof | 61261-32010 · 61261-32020 |
| 61262 | Drainage channel on the left side of the roof | 61262-32010 · 61262-32020 |
| 61281 | Sliding skylight frame No. 1 mounting bracket | 61281-32010 · 61281-32020 |
| 61283 | Sliding sunroof frame No. 3 right mounting bracket | 61283-32010 · 61283-32020 |
| 61284 | Sliding sunroof frame No. 3 left mounting bracket | 61284-32010 · 61284-32020 |
| 61301B | Right body outer center pillar | 61301-32010 · 61301-32050 |
| 61302B | Left body outer center pillar | 61302-32010 · 61302-32050 |
| 61343 | Right inner middle pillar | 61341-32010 · 61341-32020 |
| 61344 | Left side inner center pillar | 61342-32010 · 61342-32020 |
| 61411 | Right door outer sill panel | 61401-32020 |
| 61412 | Left door outer sill panel | 61402-32020 |
| 61611 | Right side hoarding | 61601-32020 · 61601-32040 · 61601-32901 |
| 61612 | left side panel | 61602-32030 · 61602-32060 · 61602-32902 |
| 61617A | Right rear side panel inner panel | 61617-32900 |
| 61618A | Left rear side panel inner panel | 61618-32900 |
| 61623B | Back door right rear opening slot | 61623-32010 · 61623-32901 |
| 61624B | Back door left rear opening slot | 61624-32010 · 61624-32900 |
| 61631A | Right wheel cover outer panel | 61603-32901 |
| 61632A | Left side wheel cover outer panel | 61604-32901 |
| 61633A | Right wheel housing lining panel | 61607-32903 · 61607-32905 |
| 61634A | Left side wheel housing lining panel | 61608-32902 · 61608-32904 |
| 61697D | Right side enclosure end cover | 61697-32020 |
| 61698D | Left side enclosure end cover | 61698-32020 |
| 61705 | Roof right inner panel sub-assembly | 61705-32900 · 61705-32901 · 61705-32902 · 61705-32903 |
| 61706 | Roof left inner panel sub-assembly | 61706-32900 · 61706-32901 · 61706-32902 · 61706-32903 |
| 61733B | Right rear roof inner panel | 61735-32900 |
| 61733C | Roof right inner reinforcement | 61731-32900 |
| 61734B | Left rear roof inner panel | 61736-32900 |
| 61734C | Roof left inner reinforcement | 61732-32900 |
| 61757B | Decoration fixings for lower side of floor panel | 61757-32010 |
| 61824 | Noise Control Panel No. 1 | 61824-32010 |
| 61825A | Noise Control Panel No. 2 | 61825-32010 |
| 61826A | Noise Control Panel No. 3 | 61826-32010 |
| 61827A | Noise Control Panel No. 4 | 61827-32010 |
| 64121E | Trunk door right hinge bracket | 64121-32010 |
| 64122E | Trunk door left hinge bracket | 64122-32010 |
| 64124A | Upper back panel longitudinal beam | 64124-32010 · 64125-32010 |
| 64312 | Glove box right bracket | 64312-32010 |
| 64313 | Glove box left bracket | 64313-32010 |
| 67812A | Side panel sound absorbing pads | 67811-32010 · 67812-32010 |
